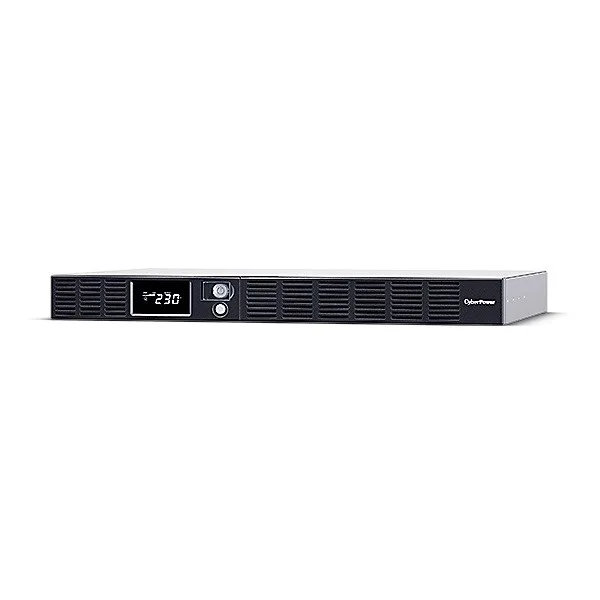

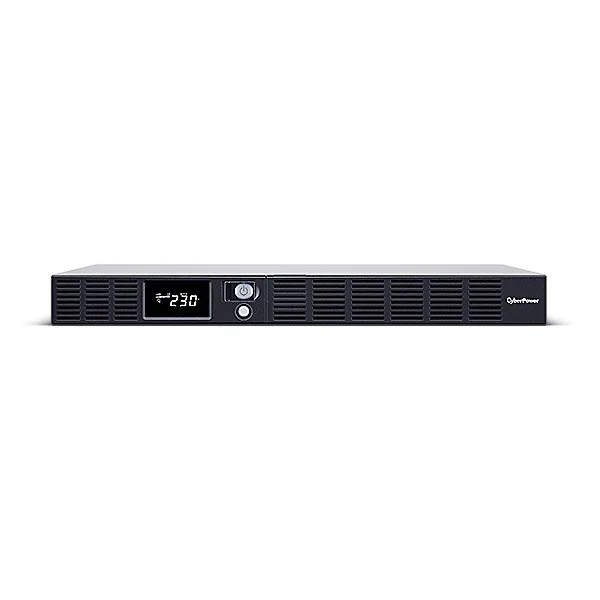

CyberPower UPS OR1500ERM1U

CyberPower UPS OR1500ERM1U

Description:

OR1500ERM1U UPS

The CyberPower OR1500ERM1U Line-Interactive UPS offers simulated sine wave output for office equipment including PCs, workstations, network devices and peripherals. It is typically integrated into the back office and server room environment to provide reliable backup power in the event of a power failure.

The UPS has a multi-function LCD display that shows real-time information including input and output voltage levels, load level, battery charge, battery life, overload warning and silent mode. Thanks to the mains ports on the UPS, network devices are protected from sudden surges caused by lightning, thus avoiding potential damage to the system. As far as battery maintenance is concerned, the UPS offers the possibility of replacing batteries during operation, allowing users to carry out normal battery maintenance without significant interruptions.

• Line-interactive UPS topology
• Simulated sinusoidal output voltage
• Overload protection
• Interference and surge protection
• Protection for telephone, fax, modem, DSL, network
• USB connection port
• SNMP / HTTP remote management (optional)
• Energy Saving Technology
• Automatic voltage regulation (AVR)
• Hot-swappable batteries
• EMI and RFI filtering
• LCD status display
• PowerPanel management software

Apparent power: 1500 VA
Active power: 900 Watt
UPS Architecture: line-interactive
The shape of the output voltage: Modified sine wave
Number of phases input: 1 (230V)
Transfer time (max): 4 millisecond
Charging time: 8 Hour
Chassis type: Rack
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Suppression
Special functions:
Software:

PowerPanel Business

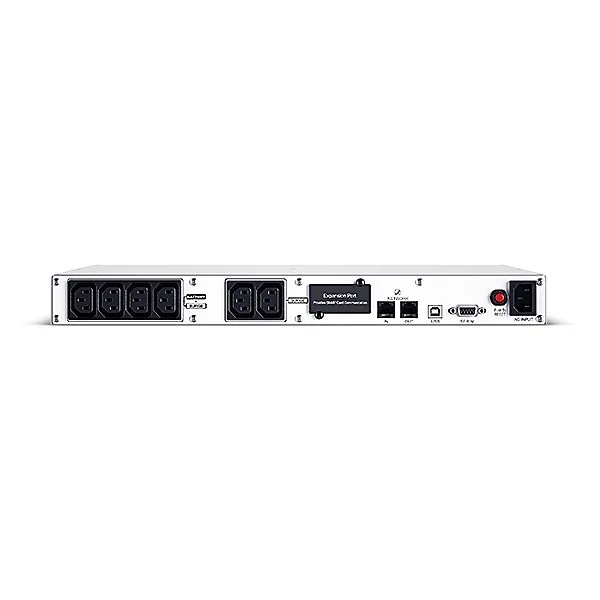

Input power ports: IEC-C14
Output power ports: 6 x IEC-C13
I/O connectors: 2 x RJ-11/RJ-45
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Operating Temperature: 32 ~ 104 (°F)
• Operating temperature: 0 ~ 40 (°C)
• Relative operating humidity (non-condensing): 0 ~ 95 (%)
• Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters)
• Storage Temperature: 5 ~ 113 (°F)
• Storage temperature: -15 ~ 45 (°C)
• Relative storage humidity (non-condensing): 0 ~ 95 (%)
• Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters)
• Online heat dissipation: 24 (BTU/hr)

Accessories included:

• OR1500ERM1U UPS
• Rack holders
• Power cord
• USB cable
• User manual

Color: Silver
Dimensions:

433 x 44 x 389 mm

Weight: 14.9 kilogram
Other features:
Designation:
