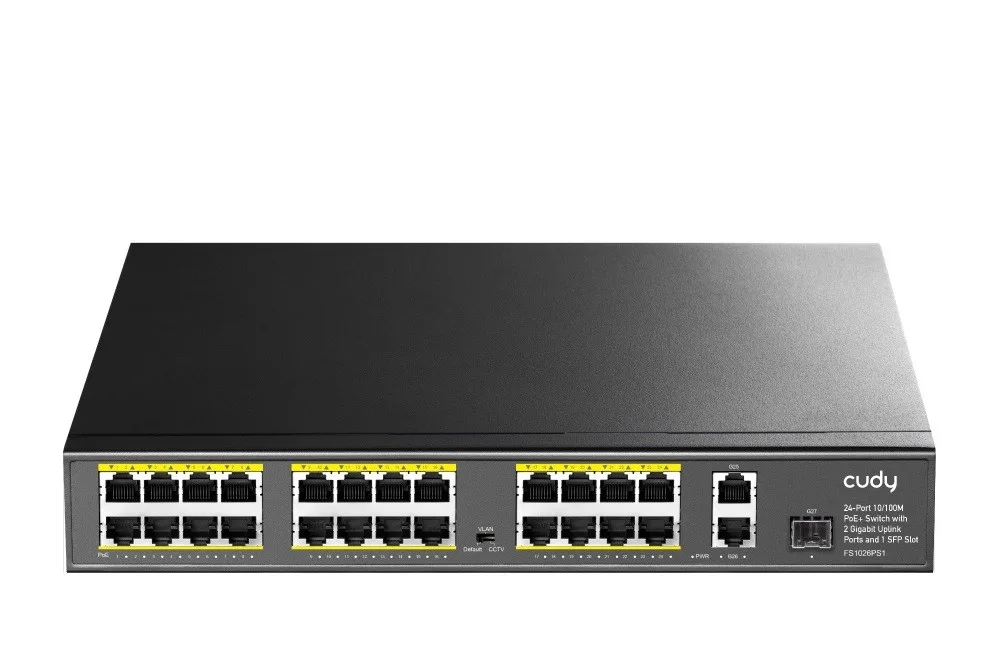

Cudy Switch FS1026PS1 24xFE PoE+ 300W 1xSFP

Cudy Switch FS1026PS1 24xFE PoE+ 300W 1xSFP

Description:

FS1026PS1 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot

• 24 10/100M PoE+ ports
• 2 Gigabit Uplink ports
• 1 x 1.25Gbps SFP slot
• 300W PoE power budget
• IEEE 802.3at / IEEE 802.3af compliant
• plug&play

Switch class: Unmanaged
Application: Medium and large companies
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 24
Number of 10/100/1000 Mbps ports: 2
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 24
Number of COMBO ports: None
Number of SFP ports: 1
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 10.8 Gigabity na sek.
Forwarding rate: 8 Mpps
Packet buffer: 1 MegaBajt
MAC address table size: 2000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE802.3
• IEEE802.3u
• IEEE802.3ab
• IEEE802.3x
• IEEE802.3z
• IEEE802.3af
• IEEE802.3at

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : Internal
Power consumption: 300 Watt
Mean time between failures (MTBF): 100000 Hour
Accessories included:
Power supply:

AC 100-240V 50/60Hz

POE:

• IEEE 802.3af – Max 15.4W
• IEEE 802.3at – Max 30W
• PoE port output: DC 48-55V

Dimensions:

320 x 210 x 46 mm

Weight: 1.9 kilogram
Environment requirements:

• Operating Temperature: -20~50C
• Storage Temperature: -40 ~ 85 C
• Operating humidity: max. 90%, non-condensing
• Storage humidity: max. 95%, non-condensing
• Operating altitude: up to 10,000 feet (3,000 meters)
• Storage altitude: up to 10,000 feet (3,000 meters)

Other features:
Designation:
