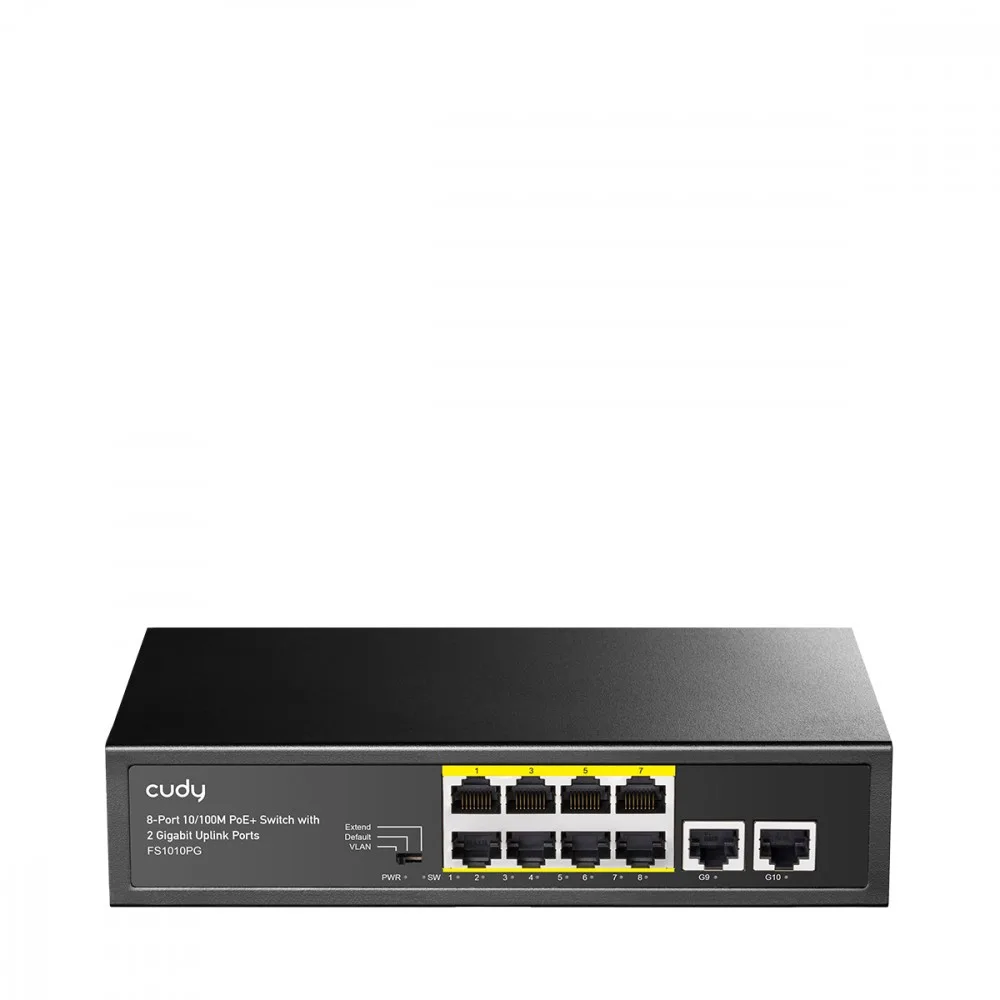

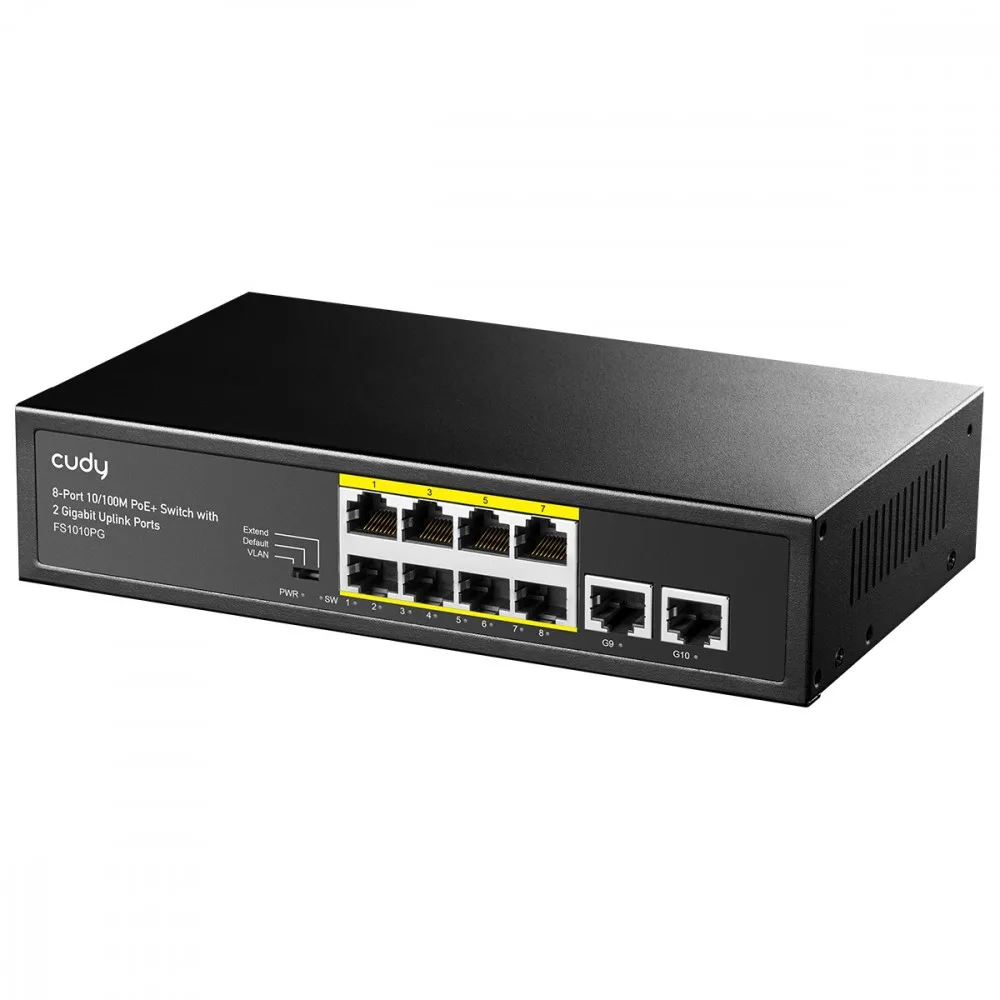

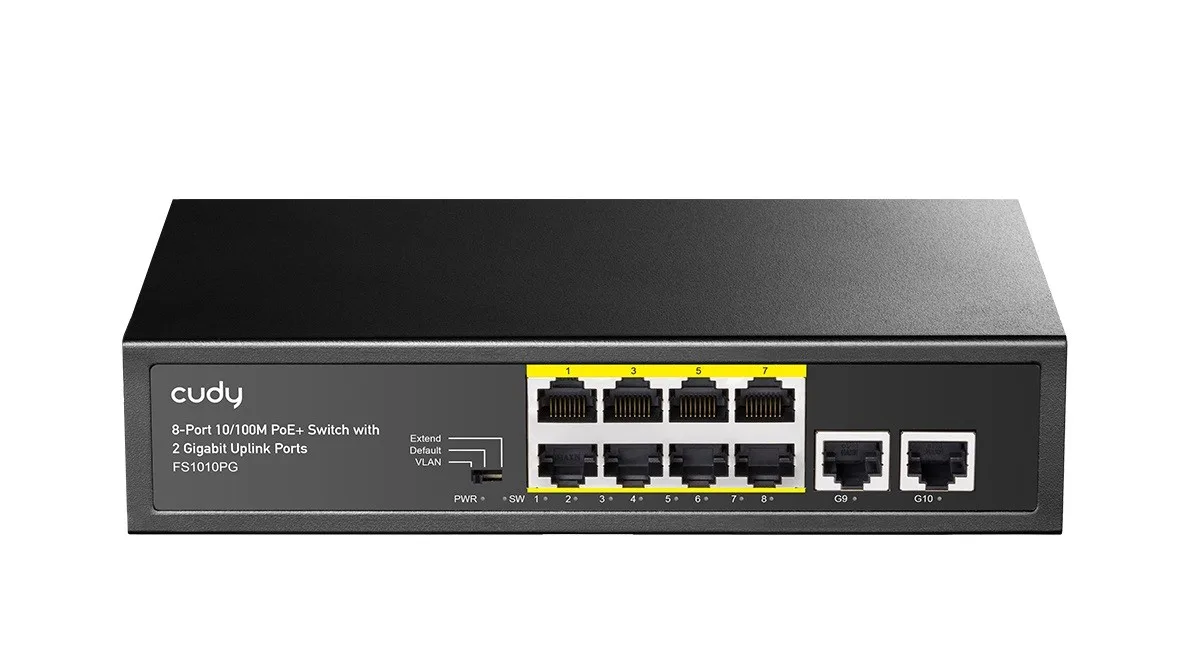

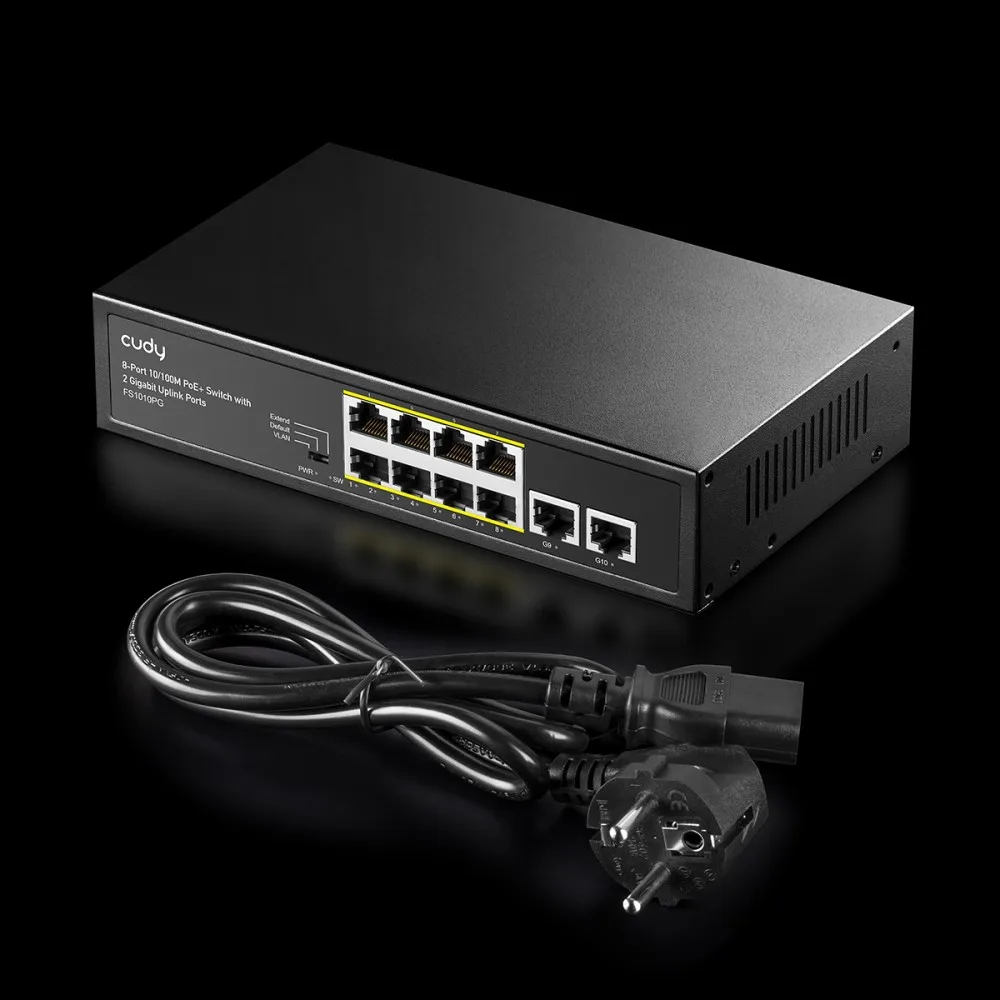

Cudy Switch FS1010PG 8xFE PoE+ 120W Gigabit Uplink

Cudy Switch FS1010PG 8xFE PoE+ 120W Gigabit Uplink

Description:

FS1010PG 8-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports

• Supports IEEE802.3at and IEEE802.3af
• Total PoE output power 120W, up to 32W for one PoE port
• Support IEEE802.3x full duplex and half duplex flow control
• Support VLAN and CCTV functions
• Panel LEDs to monitor operating status and assist in fault analysis
• Perfect security mechanism

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 8
Number of 10/100/1000 Mbps ports: 2
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 8
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 2 Gigabity na sek.
Forwarding rate: 1.48 Mpps
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 1.528 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE802.3
• IEEE802.3u
• IEEE802.3x
• IEEE802.3af/at
• IEEE802.3ab

QoS:
Security:
Management, monitoring, configuration:

Modes: VLAN, CCTV

L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : Internal
Power consumption: 120 Watt
Mean time between failures (MTBF): 50000 Hour
Accessories included:
Power supply:

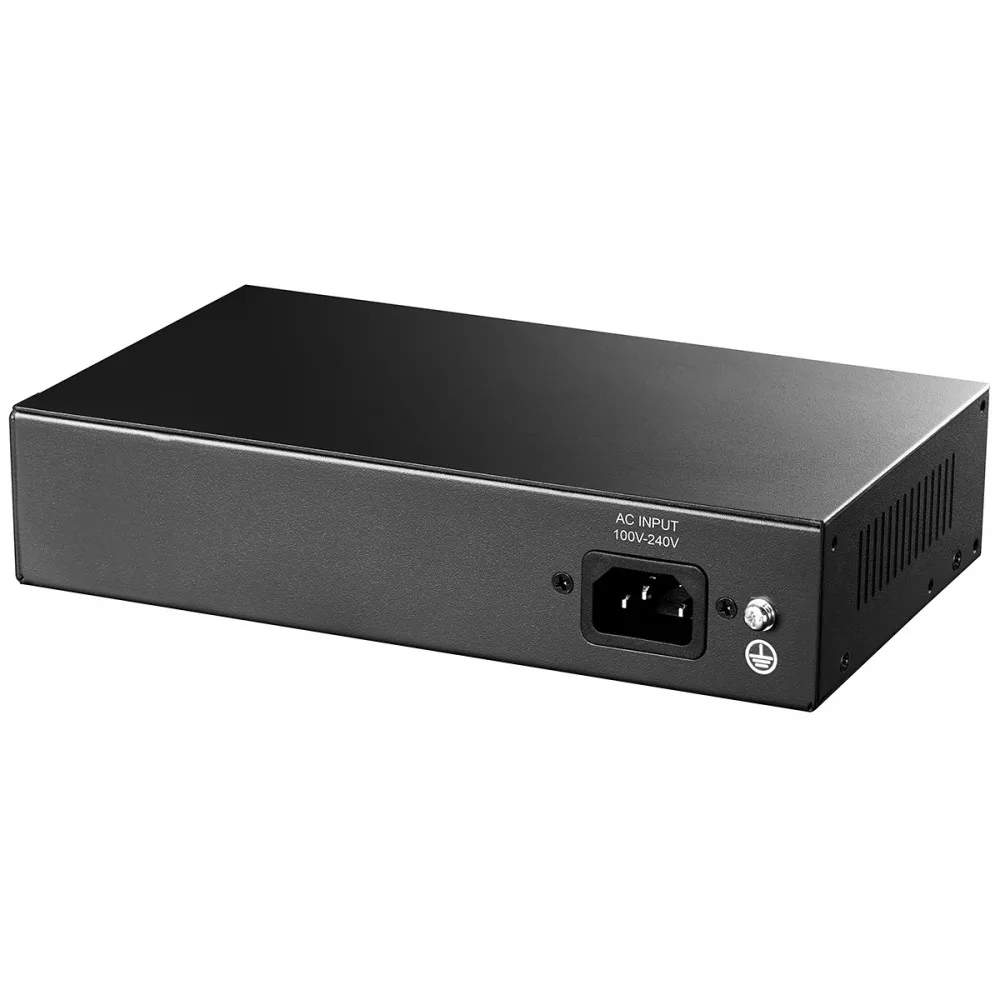

• Input: AC100~240V
• Output: 52V~2.3A

POE:

• Ports: 1-8
• PoE budget: 120W
• Single Port Power: 32W

Dimensions:

220 x 150 x 44 mm

Environment requirements:

• Operating temperature 0°C ~ 40°C
• Storage temperature -40°C ~ 70°C
• Operating humidity 10% ~ 90% non-condensing
• Storage humidity 5% ~ 90% non-condensing

Other features:
Designation:
