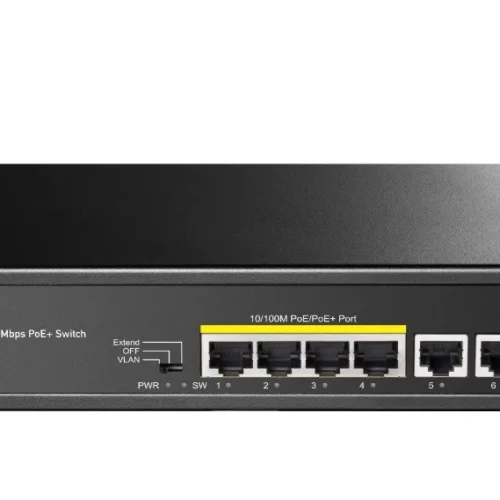

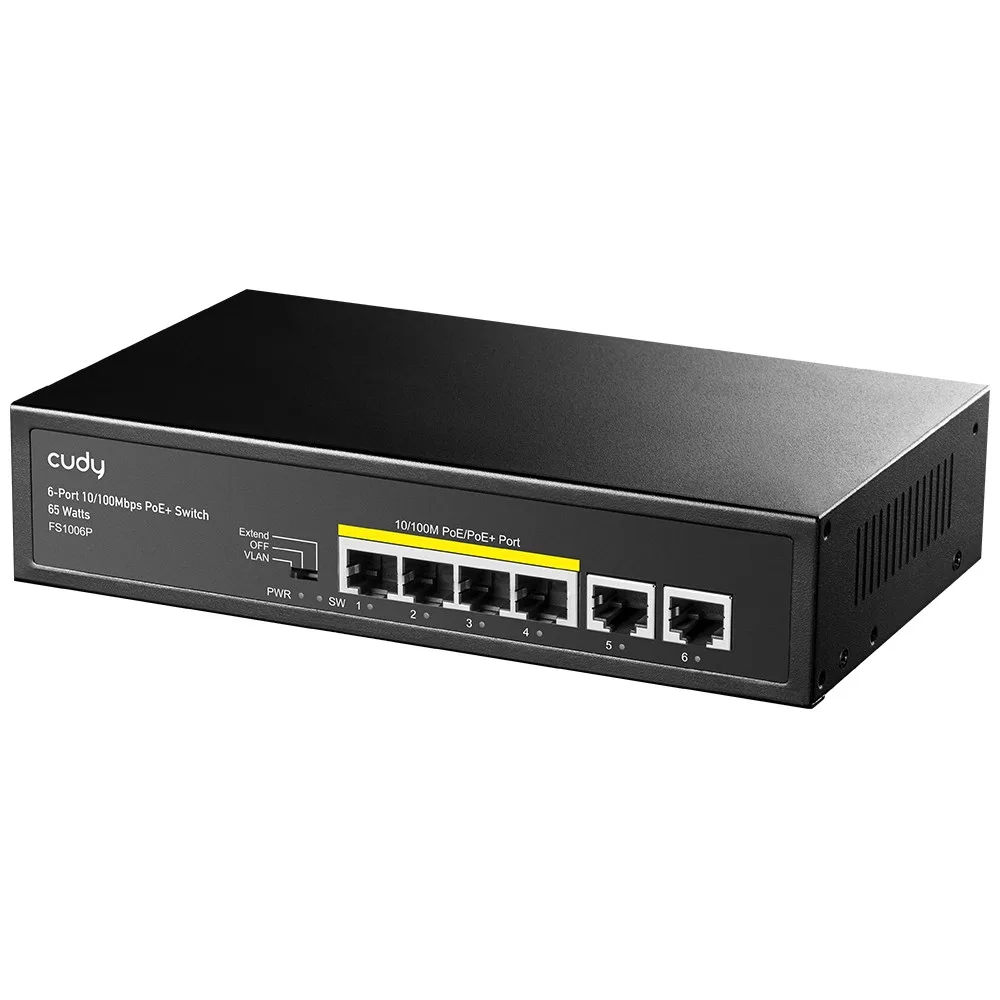

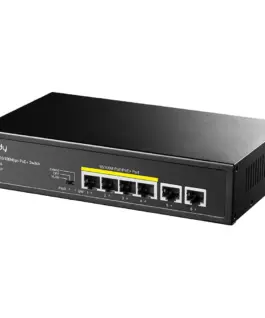

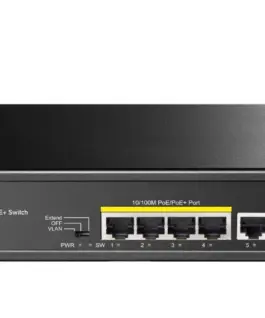

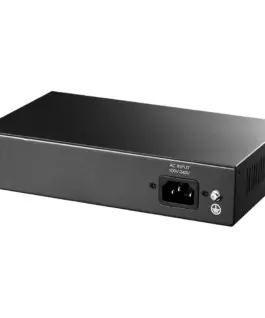

Cudy Switch FS1006P 6xFE (4xPoE+) 65W

Cudy Switch FS1006P 6xFE (4xPoE+) 65W

Description:

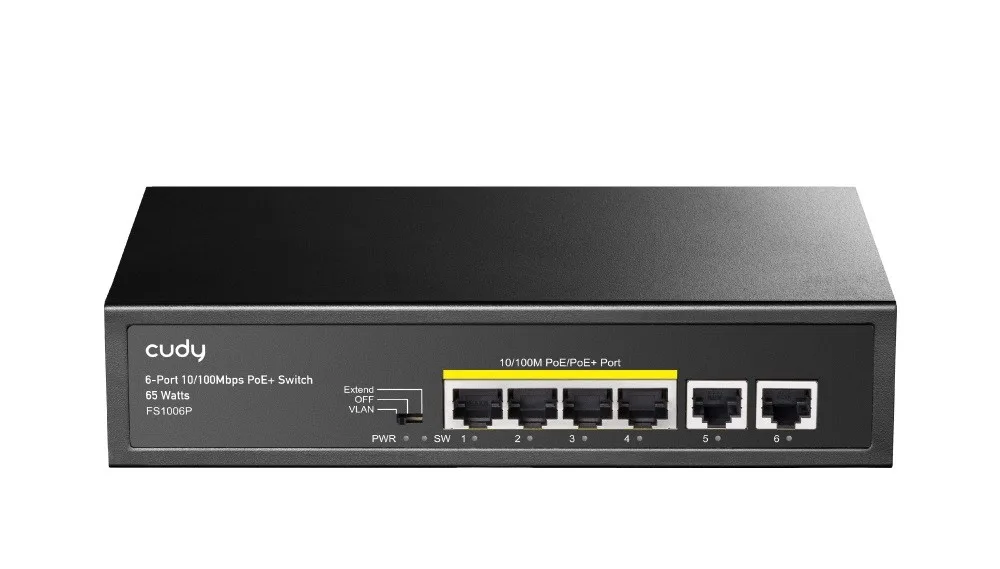

FS1006P 6-port 10/100M PoE+ switch

• Compliant with IEEE802.3af/at
• Supports PoE power up to 32W for each PoE port
• Automatic detection of non-PoE devices and PoE devices
• Power priority ensures power to key nodes
• CCTV/VLAN mode switch, remote power and data up to 250m
• Supports IEEE802.3 x full duplex / half duplex flow control

Switch class: Unmanaged

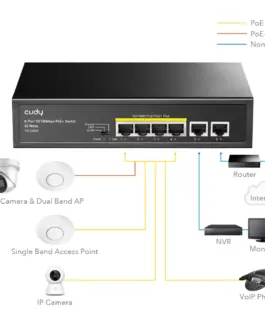

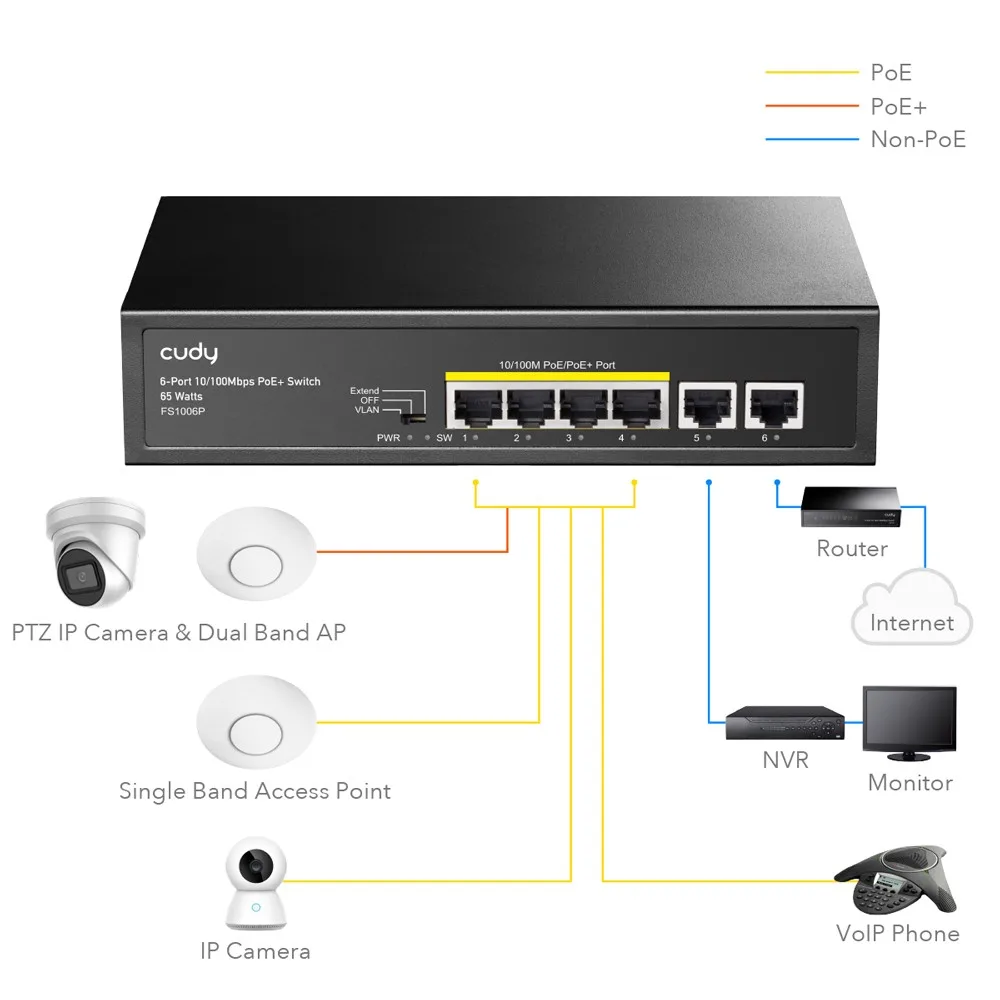

Application: Home and small office
Network architecture: FastEthernet
Number of 10/100 Mbps ports: 6
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 4
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 1.2 Gigabity na sek.
Forwarding rate: 0.9 Mpps
Packet buffer: 448 Kilobajt
MAC address table size: 1000
Support for Jumbo frames: No
Stackability: No
VLAN:

Port isolation mode – PoE ports (1-4) cannot communicate with each other, they can only communicate with the UP-link port. Port AI mode is on.

Supported protocols and standards:

• IEEE802.3
• IEEE802.3u
• IEEE802.3x
• IEEE802.3af/at

QoS:
Security:
Management, monitoring, configuration:

It supports three modes: VLAN, Default, Extend

L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : Internal
Power consumption: 65 Watt
Mean time between failures (MTBF): 100000 Hour

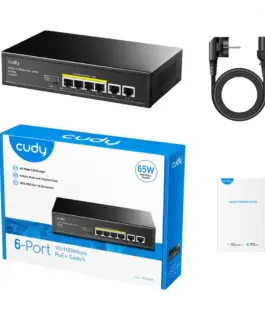

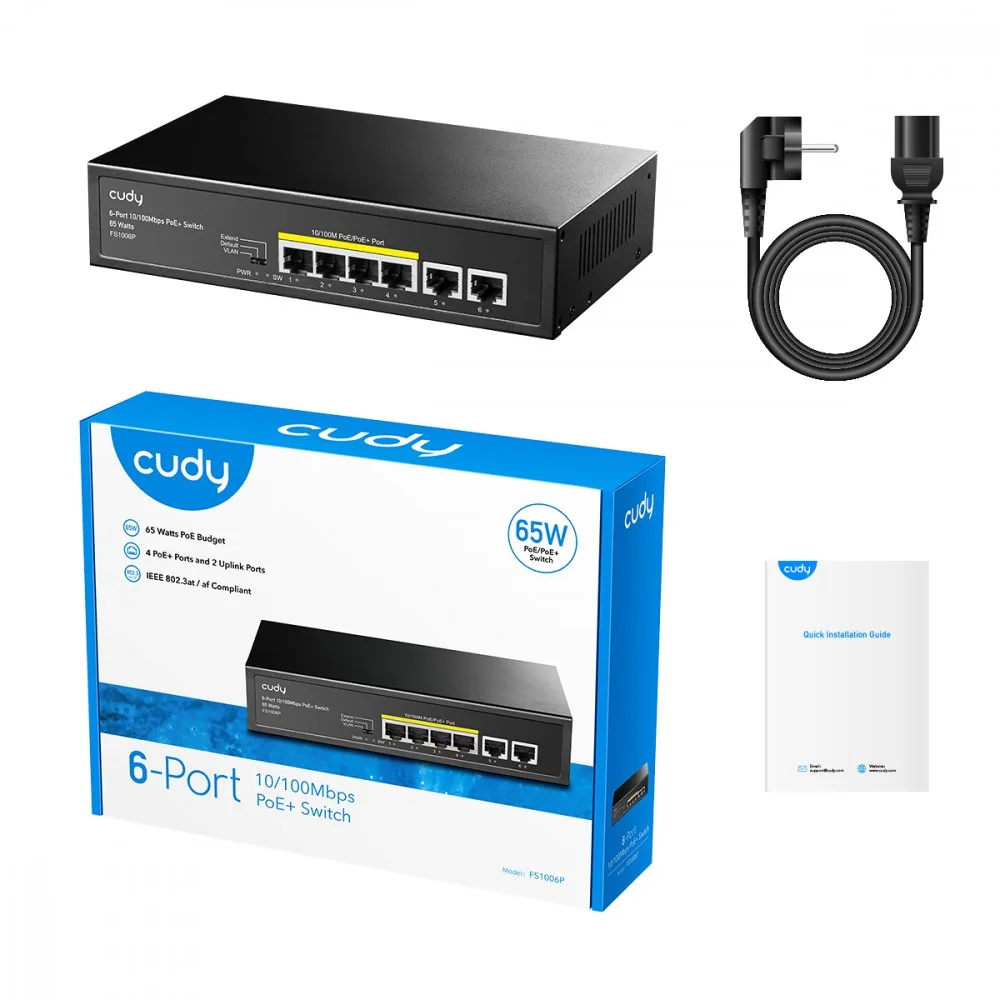

Accessories included:
Power supply:

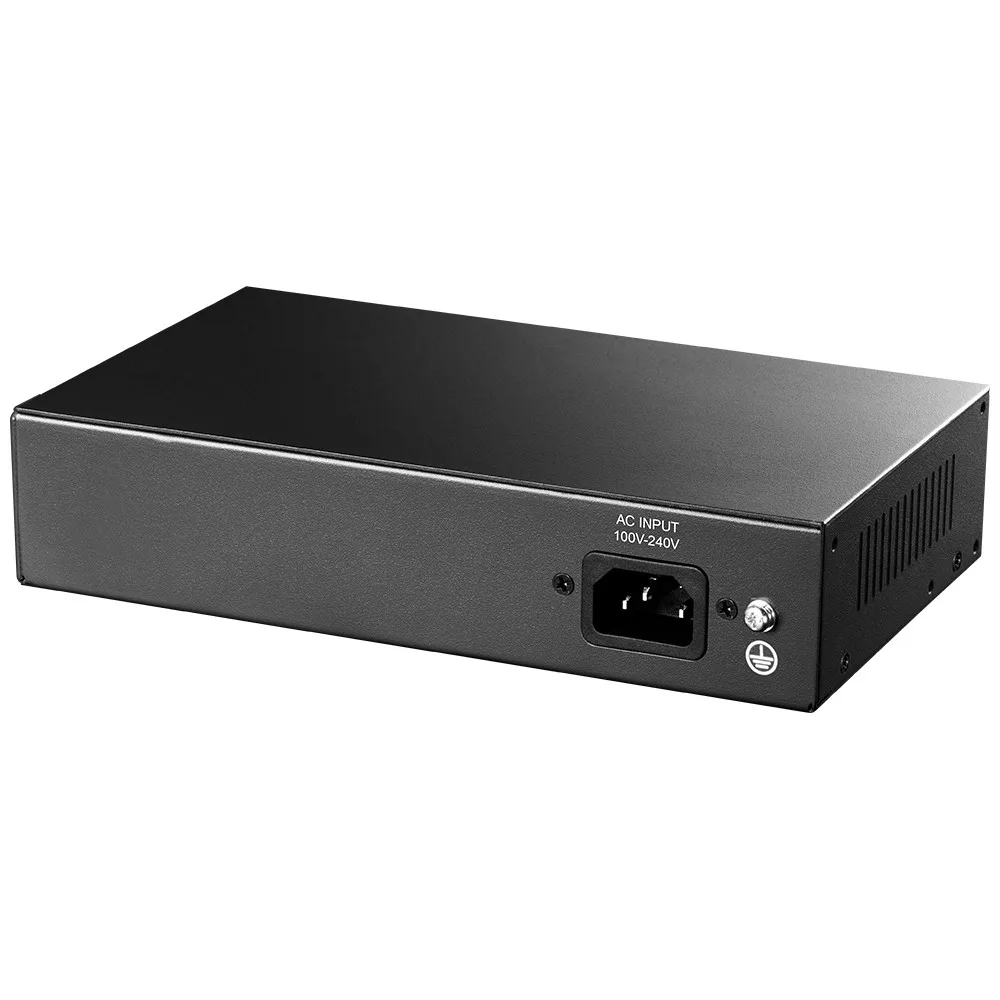

• AC input: 100-240V 50/60Hz
• Output: 52V 1.25A
• POE port output: DC 52V

Dimensions:

200 x 120 x 45 mm

Weight: 1 kilogram
Environment requirements:

• Operating temperature: -20°C ~ 50°C
• Storage temperature: -40°C ~ 80°C
• Operating humidity: 10% ~ 90% non-condensing
• Storage humidity: 5% ~ 90% non-condensing

Certificates:

• CE
• FCC Class A

Other features:
