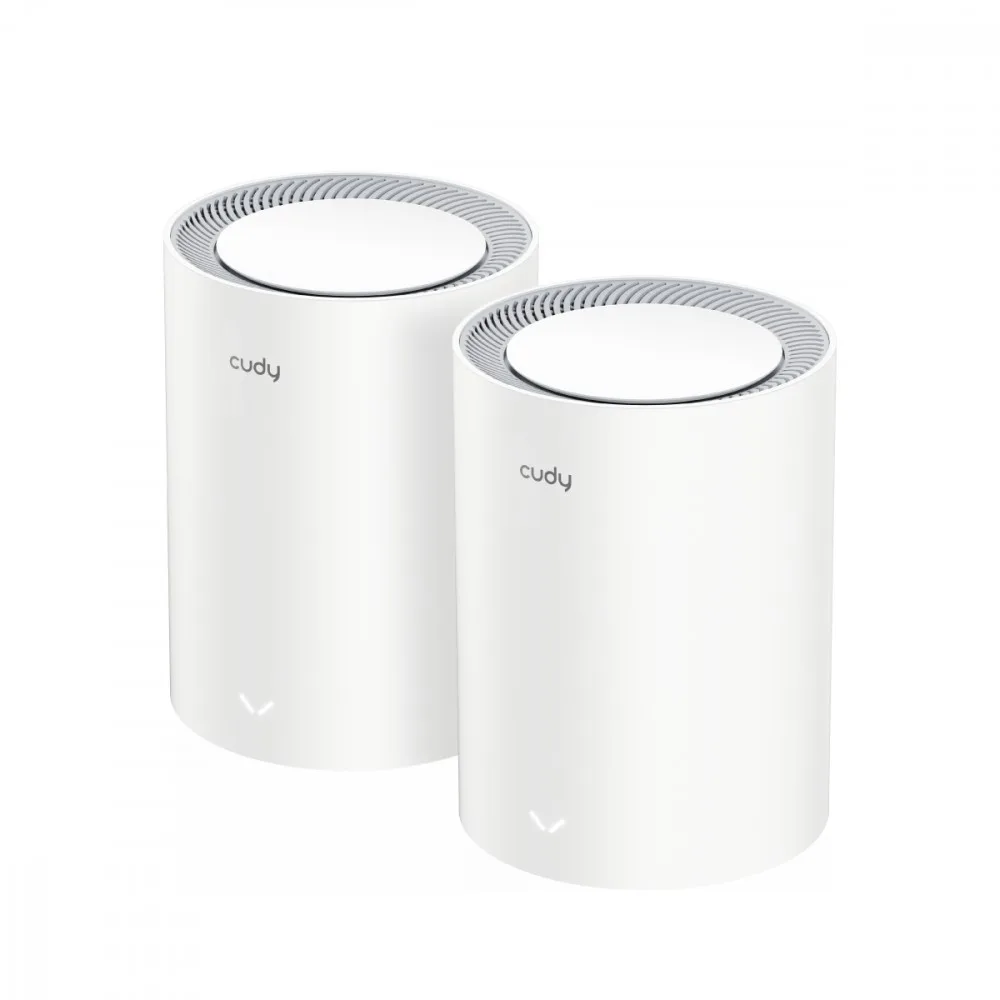

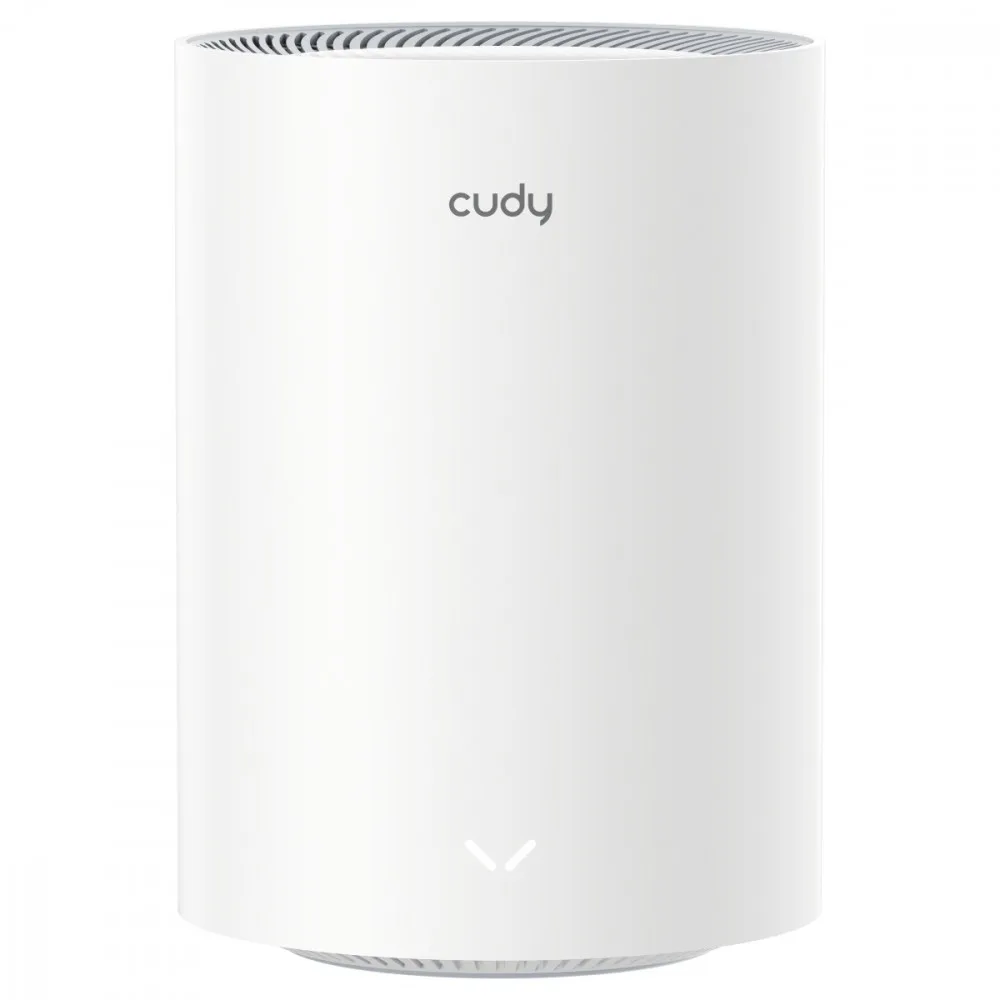

Cudy Router M3600 System WiFi Mesh BE3600 Gigabit Dual Band Wi-Fi 7 Mesh Solution 2-Pack

Cudy Router M3600 System WiFi Mesh BE3600 Gigabit Dual Band Wi-Fi 7 Mesh Solution 2-Pack

Model:

M3600 1.0

Description:
Type: xDSL
Network architecture: GigabitEthernet

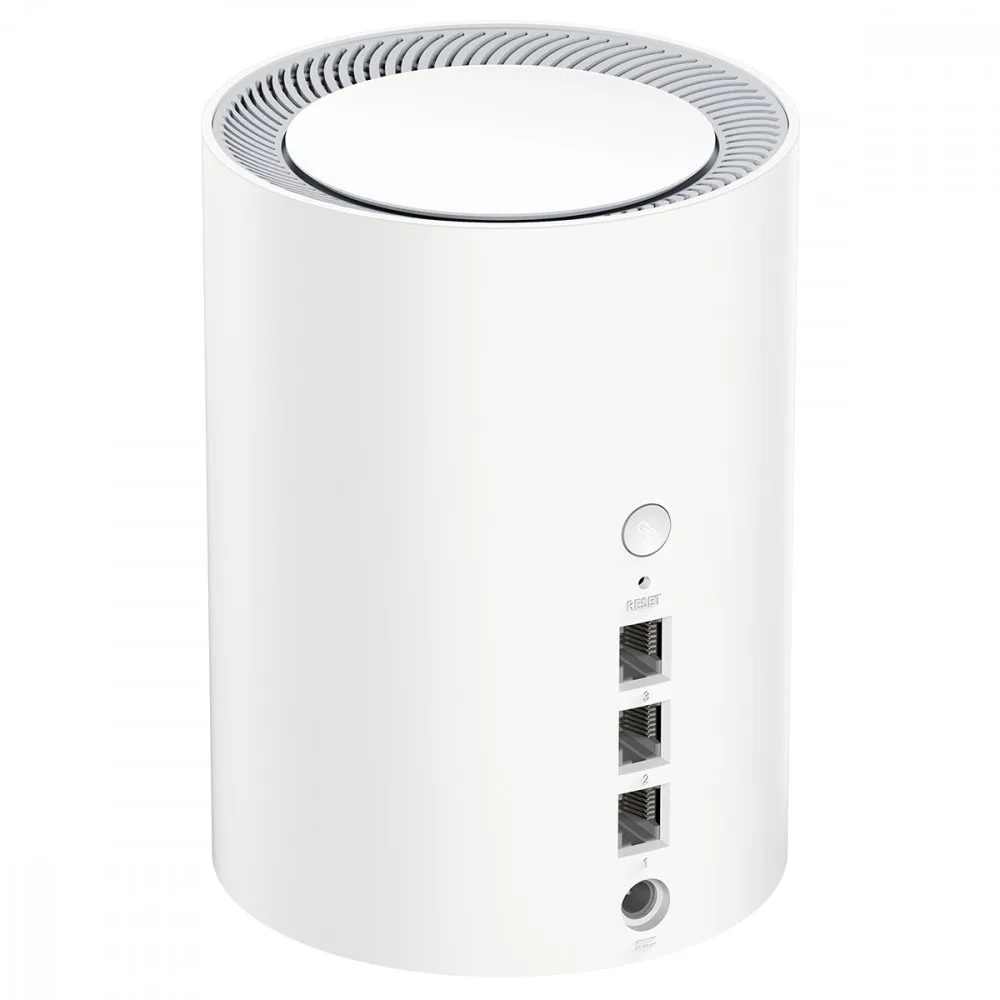

I/O ports: 1 x WAN (RJ-45)
I/O ports: 2 x 10/100/1000 Mbit/s
Standards: 802.11ax
Standards: IPv6
Standards: IPv4
Standards: 802.11be
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11a
Standards: 802.11b
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 4
Antenna: Built-in
Antenna gain: 5.5 dBi
Security:

WPA/WPA2/WPA3

Parental Controls:

• Profiles Settings
• Offline Time
• Online Time
• Pause the Internet
• Web Filter

Firewall:

• SPI Firewall
• DoS Protection
• Block PING

Management, monitoring, configuration:

All Devices Management:

• Wi-Fi Time Schedule
• MAC Filter
• IP/MAC Binding

Per-Devices Management:

• Internet On/Off
• VPN On/Off
• Online Time Schedule
• Device Rename

Content Management:

• Domain Filter
• IP Filter

QoS:

• Per-User Rate Limiting

DHCP:

• Address Reservation
• DHCP Client List
• Server

IPv6 Protocols:

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT
• MAP-E
• DS-Lite

IPTV/VLAN:

• Bridge
• Tag VLAN
• VoIP VLAN
• IPTV VLAN

TTL Customization:

• Extend
• Spoof
• Custom

IGMP:

• IGMP Proxy
• IGMP Snooping

Forwarding:

• Port Forwarding
• Port Triggering
• UPnP
• DMZ

Application Layer Gateway:

• IPSec Passthrough
• L2TP Passthrough
• PPTP Passthrough
• FTP Passthrough
• TFTP Passthrough
• H323 Passthrough
• SIP Passthrough
• RTSP Passthrough

VPN Server:

• WireGuard
• OpenVPN
• IPsec
• Zerotier
• PPTP
• L2TP

Power supply:

• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1A DC

Environment requirements:

• Operating Temperature: 0°C  ~ 40°C  (32°F  ~104°F)
• Storage Temperature: -40°C  ~ 70°C  (-40°F  ~ 158°F)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certificates:

• FCC
• CE

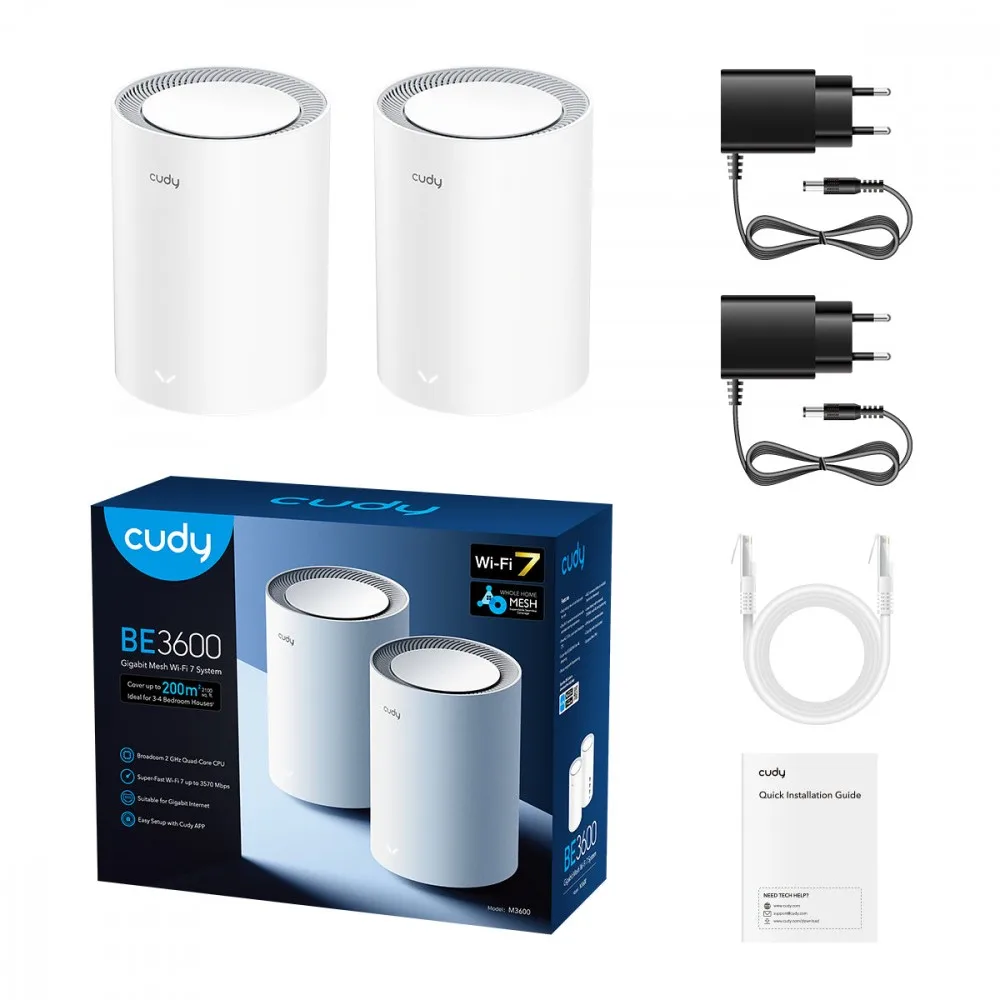

Accessories included:
Color: White
Weight: 717.9 gram
Dimensions:

110 x 154.5 mm

Other features:

• CPU: 2.0 GHz Quad-Core, ARM Cortex-A7
• Flash/ROM: 128 MB (1 Gbit) NAND
• DDR/RAM: 512 MB (4 Gbit) DDR3L
• 5 GHz Wi-Fi Speed: 2882 Mbps
• 2.4 GHz Wi-Fi Speed: 688 Mbps
