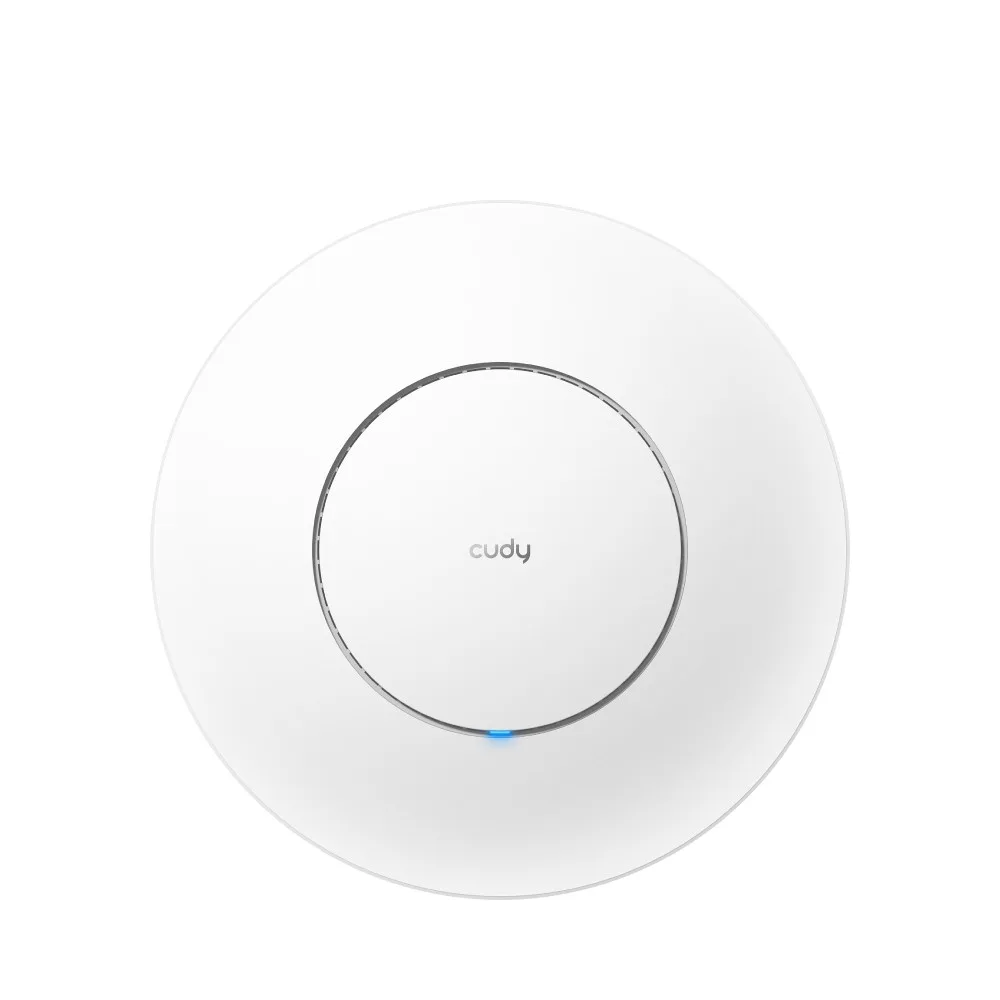

Cudy Access Point AP1300 Gigabit AC1200

Cudy Access Point AP1300 Gigabit AC1200

Description:

AP1300 AC1200 Gigabit Access Point

• AC1200 Dual Band Wi-Fi Speed
• MT7621DA+MT7613B+MT7603E
• Gigabit WAN/LAN port
• 802.3at/af PoE or Passive PoE or DC Fat/Fit AP mode

Network architecture: GigabitEthernet
I/O ports: 1 x 10/100/1000 Mbit/s PoE
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Standards: 802.3af
Standards: 802.11b
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11a
Number of antennas: 4
Antenna: Built-in
Security:

• WPA-PSK
• WPA2-PSK
• WPA-PSK/WPA2-PSK
• WPA2-PSK/WPA3-SAE
• WPA3-SAE

Management, monitoring, configuration:

• Multiple SSID
• Enable/Disable Wireless
• Radio
• Transmit Power Control
• QoS(WMM)
• Seamless Roaming
• Band Steering
• MU-MIMO
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule

Special functions:

Modes of operation:

• Wireless access point mode
• Wireless router mode
• Wireless extender mode
• WISP mode

Power supply:

• 802.3af/at PoE
• 24V lub 48V Passive PoE (+4,5pins, -7,8pins)
• 12V DC

Software:
System Requirements:
Accessories included:

• Wireless access point
• 12V DC power adapter
• Mounting kit
• Installation Guide

Color: White
Dimensions:

232 x 232 x 57.1 mm

Environment requirements:

• Operating temperature: 0-40°C
• Storage temperature: -40-70°C
• Operating humidity: 10-90% RH non-condensing
• Storage humidity: 5-90% RH non-condensing

Other features:

• CPU: 880MHz Dual core processor
• Chipset: MT7621DA+MT7613B+MT7603E
• Flash: 16MB (128Mbit)
• DDR: 128MB (1Gbit)

Designation:
