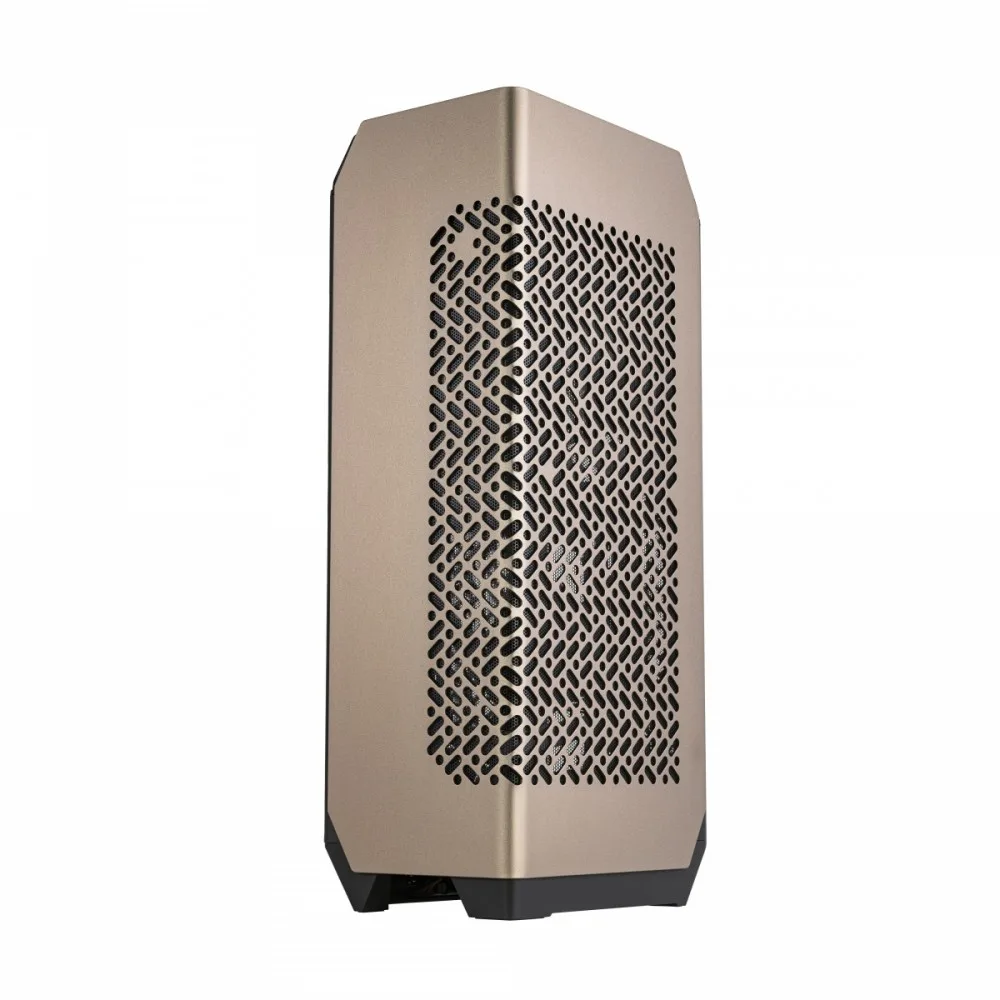

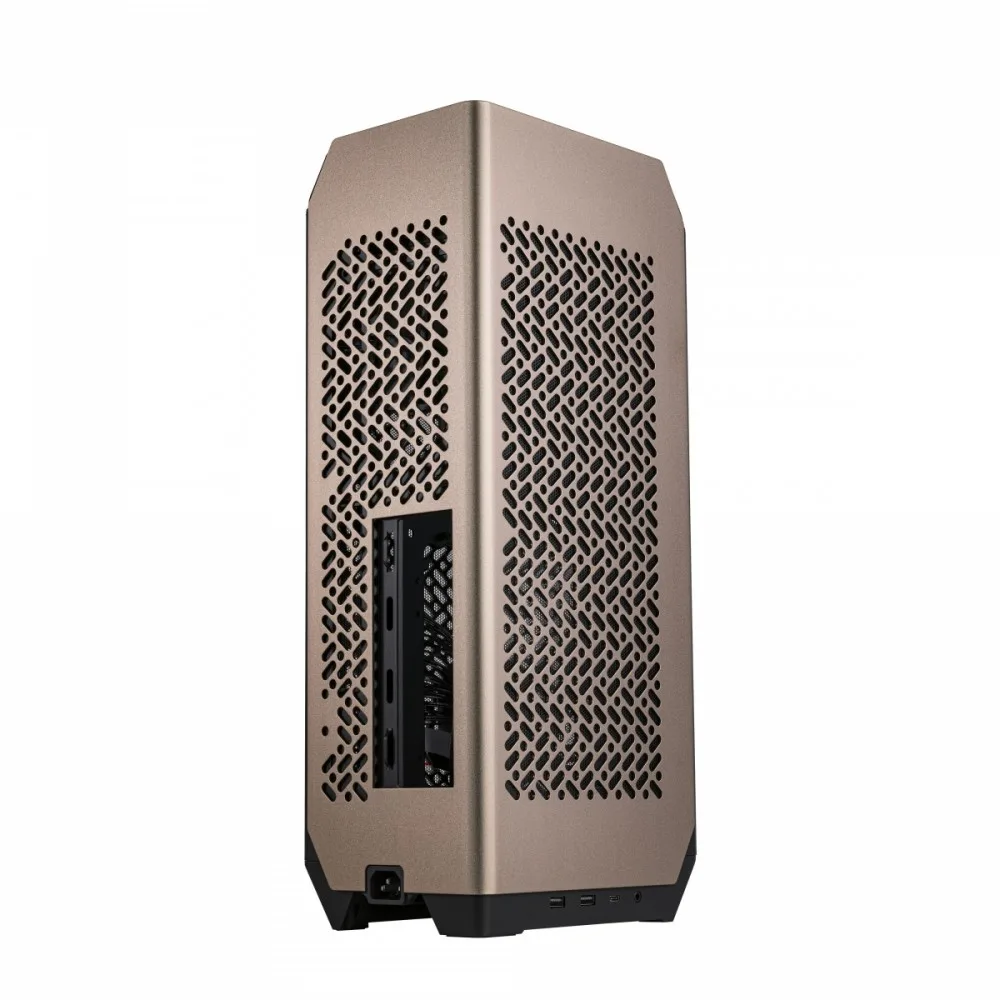

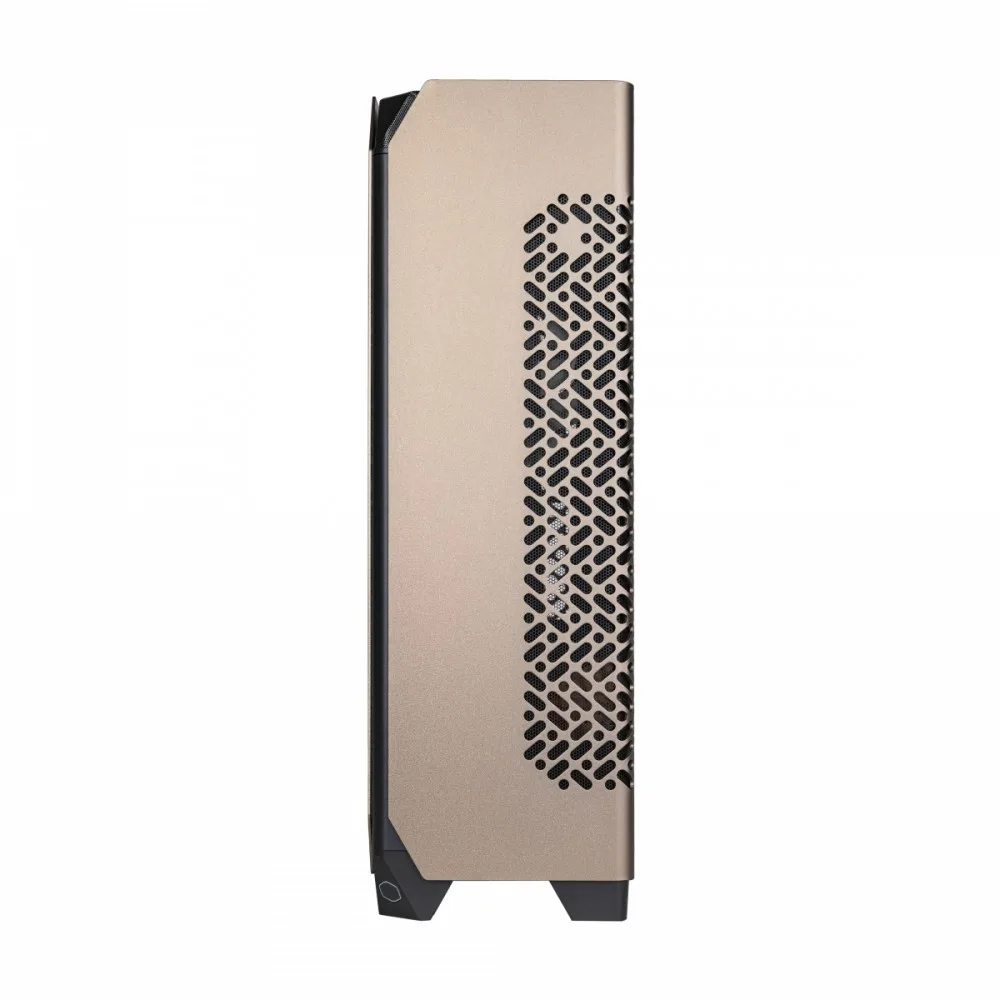

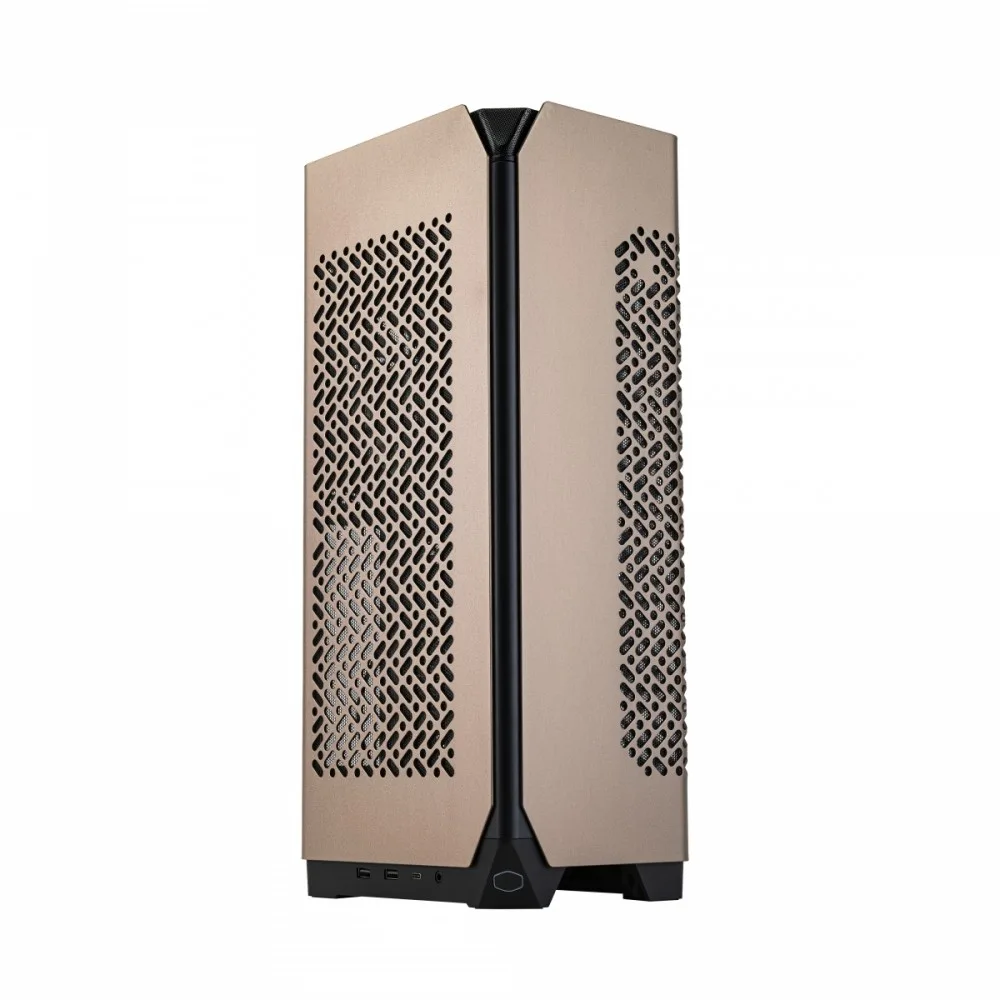

Cooler Master NCORE 100 MAX BRONZ, GO LD 850, COOLER 120L CORE

Cooler Master NCORE 100 MAX BRONZ, GO LD 850, COOLER 120L CORE

Separator:

Case

Description:

Want to maximize your PCs performance while saving space? Cooler Masters NCORE 100 MAX is the ultimate solution for getting high performance with minimal desk space.

True to our MAX series name, weve created a customized, all-in-one cooling solution that tames even the most advanced processors for gaming workloads. Efficient thermal design and a large, transformable space allow for mounting and cooling of almost all the latest top-of-the-line graphics cards, such as the RTX4090. Despite this high-end specification, weve made it easy to build and achieve this level of performance with pre-routed cables, tool-free assembly, and unrestricted component access.

Maximize your performance with minimal effort with the NCORE 100 MAX.

MAX, the revolutionary NCORE 100 MAX represents the next generation of Cooler Masters MAX series. The NCORE continues the series tradition of easy installation, premium aesthetics, and high performance, thanks to the integration of a custom-designed, extra-thick 120mm radiator and a Custom ATX 3.0 PSU.

MINIMUM footprint, MAXIMUM performance At just 212mm x 155mm, the NCORE 100 MAX has a footprint thats only about the size of an A5 sheet of paper. Yet it can still house almost all the latest components on the market. Something thats rarely found in Small-Form-Factor (SFF) cases.

The Ultimate Transformation Transform your rig with an expandable chassis that increases the overall width from 155mm to 172mm, providing room for even some of the largest RTX 4090s.

A small form factor with a volume of just 15.7 liters, pre-routed cables, full hardware compatibility, and unprecedented open availability, the NCORE 100 MAX is a simple-to-build PC case.

Chassis type: Tower
Form-factor: ITX
Side panel: Metal fence
Computer case backlight: No
No. of drive bays: 1
Drive bays 2.5” intern.: 1
Power supply: 850 W
Number of fans installed: 1
Fans installed: 1 x 120 mm (back)
Maximum number of fans: 1
Optional fans: 1 x 120 mm (back)
Ooptional water cooling: 1 x 120 mm (side)
Front panel connectors: 1 x mic/headphone (combo)
Front panel connectors: 2 x USB 3.2 Gen1
Front panel connectors: 1 x UBS 3.2 Gen 2×2 Type-C
Maximum length of the graphics card: 357 Millimetre
Maximum CPU cooling height: 48 Millimetre
Maximum length of the power supply: 100 Millimetre
Color: Brown
Dimensions:

• 155mm x 212mm x 481mm (Normal Mode)
• 172mm x 212mm x 481mm (Extended Mode)

Weight: 6.3 kilogram
Accessories included:
Other features:
Designation:
Separator:
Description:
Power supply: 850 W
Fan: 9.2 cm
PFC: Active
MOLEX power connectors: 0
Floppy power connectors: 0
SATA power connectors: 2
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 1
Number of power supply connector 4+4-pin 12V: 0
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 3
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 1
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: Yes
Certificates 80+: 80 PLUS Gold
Accessories included:
Dimensions:
Other features:
Separator:
Description:
Radiator: Aluminium
CPU socket: LGA1155
CPU socket: LGA1156
CPU socket: LGA1151
CPU socket: Socket AM2
CPU socket: Socket AM2+
CPU socket: Socket AM3
CPU socket: Socket AM3+
CPU socket: Socket AM4
CPU socket: Socket AM5
CPU socket: Socket FM1
CPU socket: Socket FM2
CPU socket: Socket FM2+
CPU socket: LGA1150
CPU socket: LGA1700
CPU socket: LGA1200
Fan speed (max): 800 rotations per minute
Fan speed (min): 2400 rotations per minute
Air flow rates: 76
Illumination: No
Type of cooling: Active
Cooling technology: Liquid
Number of fans: 1
Fan: 12 cm
Connector type: 3-pin
Noise: 12 Decibel
Accessories included:
Dimensions:
Other features:
