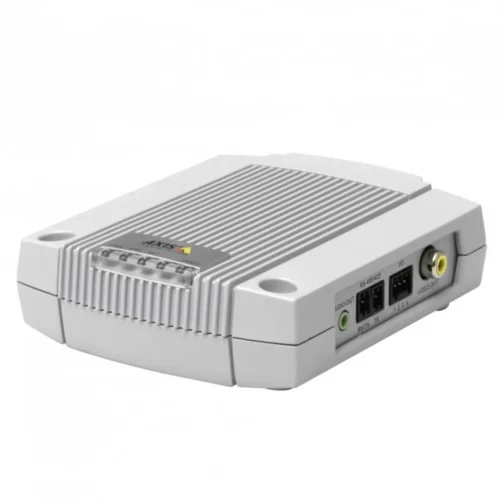

AXIS P8221

AXIS P8221

Description:

AXIS P8221 I/O Audio Module

• Eight configurable digital I/O ports
• Superb audio quality
• Speaker output
• Balanced microphone support
• Power over Ethernet

AXIS P8221 Network I/O Audio Module provides eight configurable input/output (I/O) ports and audio capabilities to a network video system that either does not have such support or require additional support. AXIS P8221 complements Axis network video products and integrates easily into existing network video installations using VAPIX.

Sensors such as a door switch, smoke detector, IR detector or glass break detectorused for triggering an alarm eventcan be connected as inputs. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.

AXIS P8221 supports two-way audio in half or full duplex. It has a built-in low power amplifier for small speakers so there is no need for an external preamplifier. It also has phantom power for a balanced microphone.

AXIS P8221 has support for Power over Ethernet allowing easy, cost-efficient and reliable installation.

Usage: Audio
Usage: LAN
Inputs: 1 x 3,5mm minijack
Inputs: 1 x Ethernet
Outputs: 1 x RS-232
Outputs: 1 x microphone
Outputs: 1 x 3,5mm minijack
Outputs: 1 x Speaker
Special functions:

Audio streaming, playback of transferred recordings (WAV, AU) and recording (AU)

Accessories included:

• Power supply,
• Mounting kit and connector kit,
• Installation manual,
• CD with installation and management tools, software and user manual,
• A license for the decoder user in Windows.

Color: Gray
Color: White
Dimensions:

32 x 99 x 118 mm

Weight: 335 gram
Other features:

Processor and memory:.

• ARTPEC-3,
• 64 MB of RAM,
• 128 MB of Flash memory,

Power supply:.

• 8-34 VDC, max. 8.2 W or.
• 20-24 V DC, max. 13.7 VA or.
• IEEE 802.3af compliant
• Power over Ethernet (PoE) Class 3
