Description:

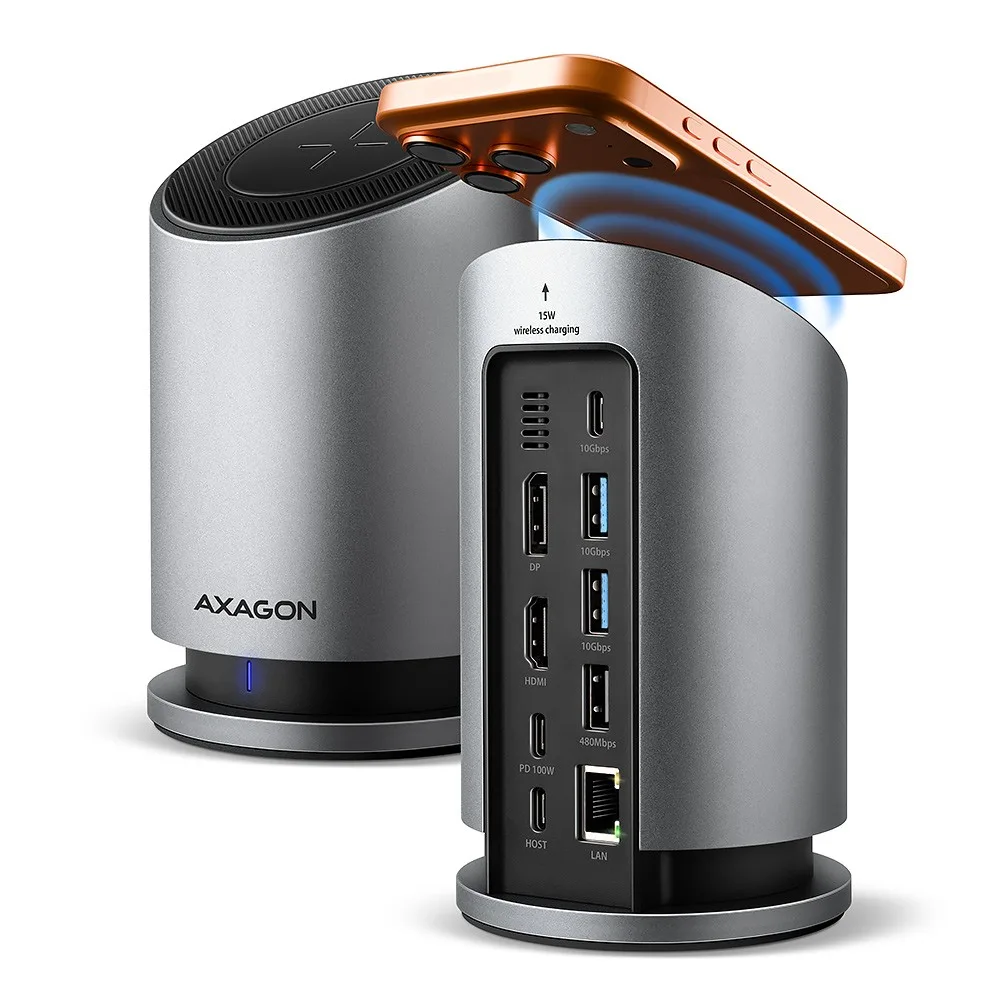

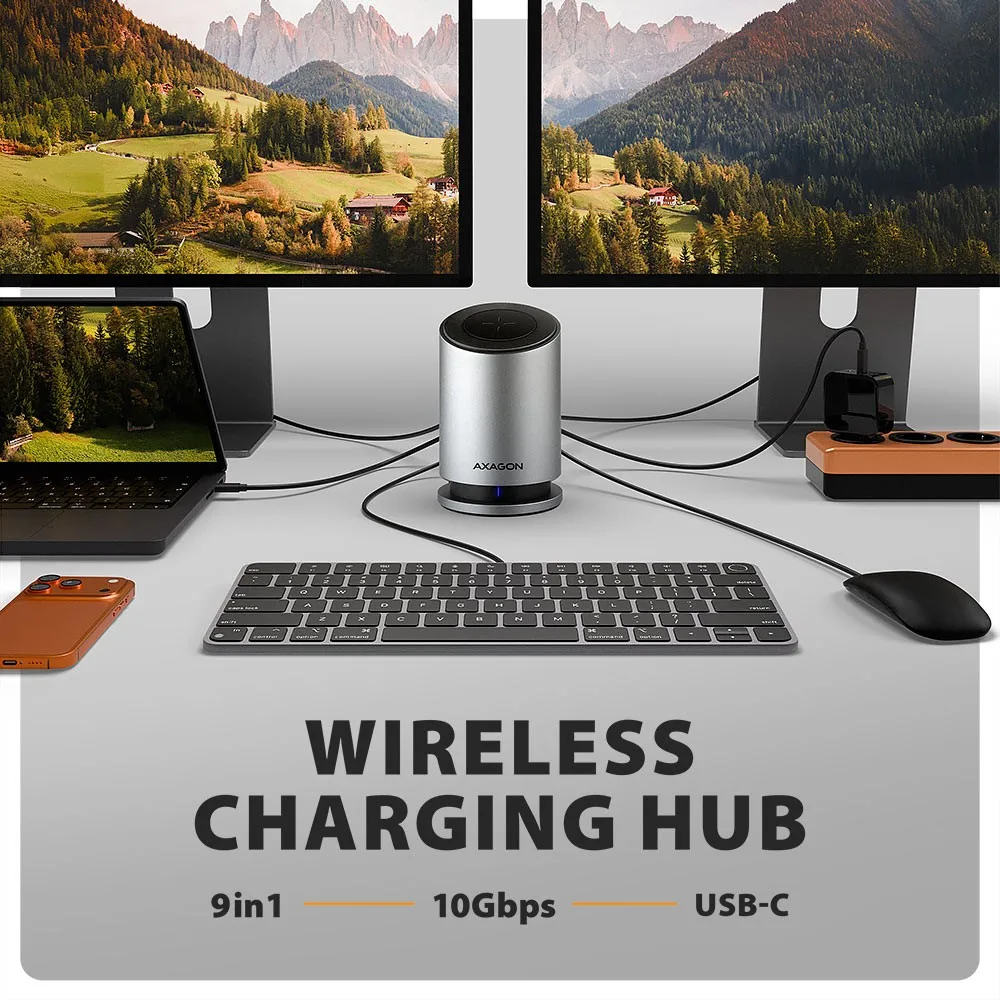

The multi-port USB-C 10Gbps AXAGON HMC-WL9 WIRELESS CHARGING 9in1 hub expands your laptop, computer or phone with two video outputs, a LAN connector, USB ports and a wireless charger. You connect your laptop to the hub via a 60 cm long USB-C cable. This gives you immediate access to connectivity for two 4K monitors, four USB devices and an RJ-45 connector for a Gigabit Ethernet network. At the same time, you gain the option of powering your notebook using Power Delivery technology. Thanks to compatibility with Thunderbolt 3/4/5, the 9in1 docking station works with laptops such as the Apple MacBook Air or MacBook Pro.

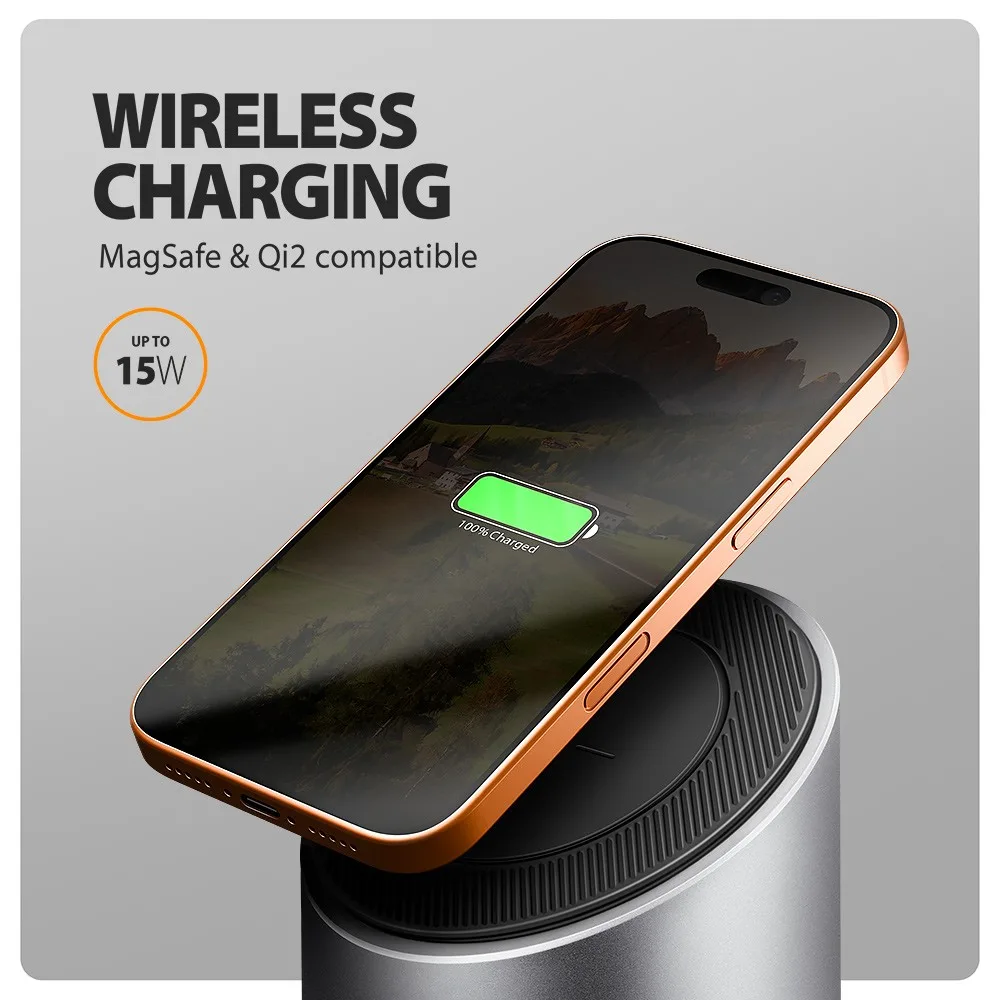

Wireless charging for mobile phones with power up to 15 W is integrated directly into the body of the hub. Thanks to the magnetic mounting system, you only need to place your phone on the surface it automatically aligns into the optimal position. Charging is therefore maximally efficient, safe and convenient. Naturally, it is compatible with the Qi1, Qi2 and MagSafe standards. To achieve maximum wireless charging performance, a 100 W PD charging adapter must be used.

The wireless charging technology is compatible with a wide range of devices, such as Apple iPhone, Samsung, Google Pixel, Xiaomi, Nothing Phone, as well as models from OnePlus, Huawei, Motorola and others. Thanks to the universal Qi standard, it is easy to charge older models with lower power output.

The USB hub with 4 USB ports offers high-speed connectivity two USB-A and one USB-C with speeds up to 10 Gbps for fast data transfer, and one USB-A 480 Mbps ideal for a keyboard or mouse. Thanks to USB 3.2 Gen 2 interface, the hub’s transfer rate is up to 10 Gb/s. The hub can also handle permanent connection of several external drives simultaneously.

The USB-C (PD) input is designed for a Power Delivery charger. This way, both the notebook and the dock are powered directly from a PD charger using Power Delivery 3.0 technology with power up to 100 W.

Two video outputs HDMI and DisplayPort allows you to connect external monitors, TVs or projectors with up to 4K/60Hz Ultra HD resolution when two monitors are connected at the same time. Other resolutions are also supported, such as 2K/120Hz Quad HD or 1080p/240Hz Full HD and multichannel audio transmission trough HDMI. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts.

Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 Ethernet connector or another network card.

The aluminum body not only looks great, but also provides mechanical durability and passive cooling. Thanks to the rubber pad on the base, the station stays firmly in place. USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. Thanks to the Plug & Play and Hot Plug functions, connecting the hub is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.

For the proper function of the hub, the USB-C port of your notebook must support video output (DisplayPort Alternate Mode or Thunderbolt 3 and above) and Power Delivery power.

The hub can easily handle connection to phones and tablets with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.

Input (connection to a computer, tablet or phone):
USB 10 Gbps (USB 3.2 Gen 2), USB-C male connector.
Compatible with USB 5Gbps, USB 20Gbps, USB 40Gbps, Thunderbolt 3/4/5.

Input (power supply):
USB Power Delivery 3.0 100 W, USB-C female connector.
Charging of the laptop from the power adapter via USB-C hub.
PD power must be supported by the laptop (tablet, phone), the cable and the wall charger.

Wireless charging:
Supports 5 W, 7.5 W, 10 W and 15 W wireless charging.
Compatible with Qi1, Qi2 and Apple MagSafe technologies.
Supports magnetic alignment for efficient charging.
A 100 W PD charging adapter must be used to achieve maximum wireless charging performance.

Examples of compatible Qi1 and Qi2 wireless charging phones:
Apple iPhone: Compatible with iPhone 8 to 17 models, including the X, 11, 12, 13, 14, 15, 16 and 17 series, and all mini, Plus, Air, Pro and Pro Max variants.
Samsung Galaxy: Compatible with Samsung Galaxy S8 to S25 models, including the S, S+, S Ultra, Z Flip (Flip3Flip6) and Z Fold (Fold3Fold6) series.
Google Pixel: Compatible with Google Pixel 4 to 10 models, including the Pixel 4 XL, 6 Pro, 7 Pro, 8 Pro, 9 Pro, 10 Pro and Pixel Fold.
Note: To achieve the highest charging speed, the phone needs to be properly centred. Thanks to the magnetic ring in the device or its case, the smartphone easily aligns itself into the optimal position.

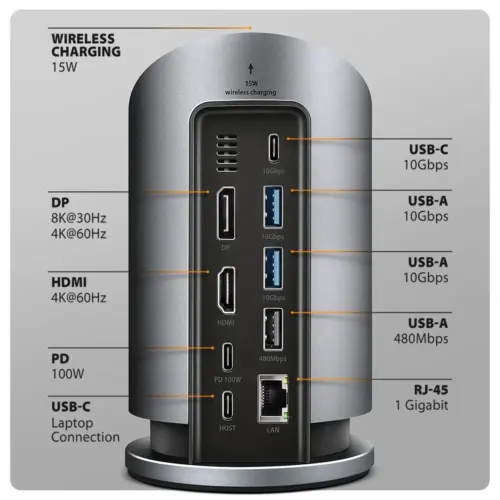

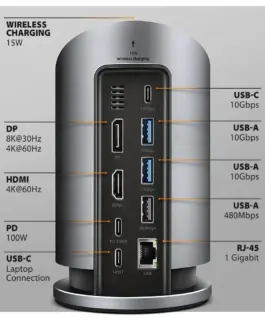

USB outputs:
1× USB 480Mbps port, USB-A female connector.
2× USB 10Gbps port, USB-A female connector.
1× USB 10Gbps port, USB-C female connector.
USB-C hub can handle the connection of several external drives at the same time.
Charging of mobile devices (including iPad) from the hub’s USB-A and USB-C ports.

Video output:
1× DP port, DP female connector.
1× HDMI port, HDMI A female connector.

Maximum supported resolution:
1 monitor (DP) up to 8K/30Hz Ultra HD, 4K/60Hz Ultra HD, 2K/120Hz Quad HD, 1080p/240Hz Full HD.
1 monitor (HDMI) up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD, 1080p/240Hz Full HD.
2 monitors (DP + HDMI) up to 4K/60Hz Ultra HD, 2K/120Hz Quad HD, 1080p/240Hz Full HD.

Video features:
For Apple devices running macOS, the maximum refresh rate is usually limited to 60 Hz.
To achieve maximum resolution and frequency values on video outputs, the hub must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 3. A suitable updated OS and up-to-date graphics drivers are also required.
HDR support (High dynamic range, 10-bit support) – realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support.
TMDS (Transition Minimized Differential Signalling) support.
HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.
HDMI support for 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio formats.
HDMI support for sampling rates up to 192 kHz and up to 24-bit audio depends on the source and destination device, i.e., notebook/phone and TV/monitor/AV receiver.

RJ-45 output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mb/s auto-detection.

Other features:
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Standby mode support.
Power supply via USB bus  USB bus power.
Power supply via PD charger (not included).
The LED indicates the connection of the dock to the computer with a steady glow.
High quality shielded cable ensures fast communication speed and minimal unwanted interference.
Dimensions: 84 × 84 × 140 mm (W × D × H).
Weight: 440 g (without cable).
USB-C USB-C cable length 60 cm for connecting the dock to a laptop.

Supported operating systems:
Windows 10 / 11, macOS, Linux, iPadOS, iOS, Chrome OS and Android.
Compatibility depends on the operating system and device manufacturer support.
DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (laptop, tablet, phone).
Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.

Package contains:
USB-C docking station,br/> cable USB-C USB-C length 60 cm,
multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
packed in a cardboard box.
