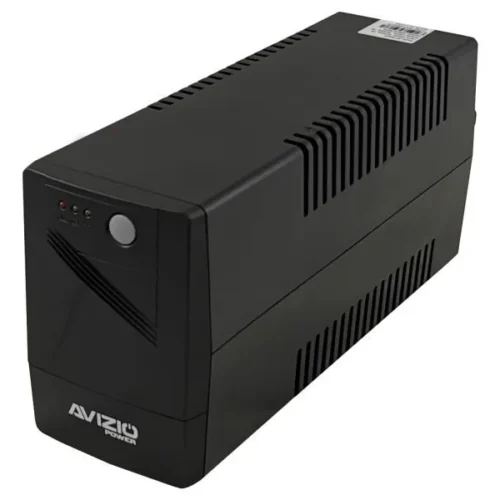

AVIZIO POWER UPS 850VA 480W 1x9AH

AVIZIO POWER UPS 850VA 480W 1x9AH

Description:

A small UPS with full protection, operating in Line Interactive technology enhanced with an automatic voltage stabilisation system (AVR).

Designed to supply power to all types of computer devices and peripherals such as cash registers, routers, modems, alarm systems, RTV, CCTV, etc.

• Power supply operation indicated by failure-free LEDs and audible alarms
• Built-in intelligent charger, optimises and shortens the battery charging time
• AVR ( Automatic Voltage Regulator) function for continuous or temporary voltage stabilisation as standard. AVR is a type of filter that automatically stabilises the output voltage protecting terminal equipment from mains voltage spikes.
• A simulated sine wave of the output current allows devices sensitive to the characteristics of the supply current to operate.
• Automatic restart during AC restoration
• Cold start allows the device to start up without being connected to the mains, which makes it possible to use the PSU as a PowerBank in emergency situations
• Self-checking operation with built-in self-diagnosis function
• Off-mode charging
• Microprocessor control system.
• Intelligent battery management.
• Alarm system indicating overloaded operation, discharge, battery mode, battery replacement time.
• USB communication port for management of the unit from the included software with stored history of events

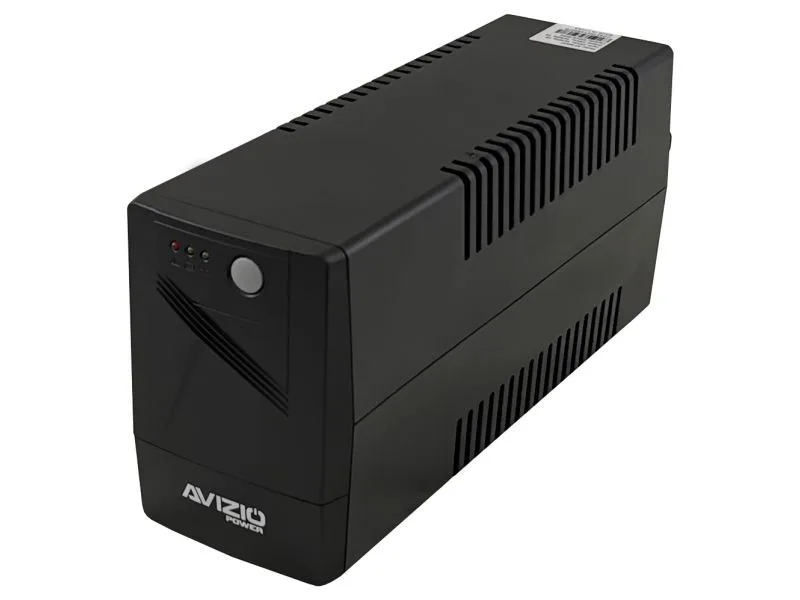

Front panel:

• On/off switch
• Information LEDs

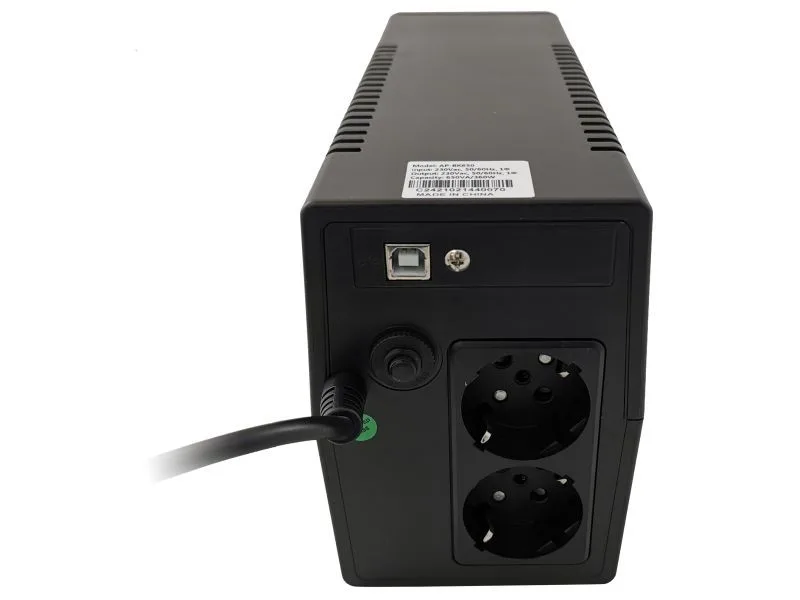

Rear panel:

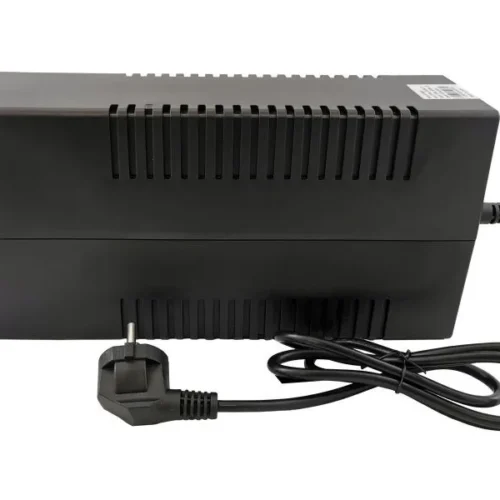

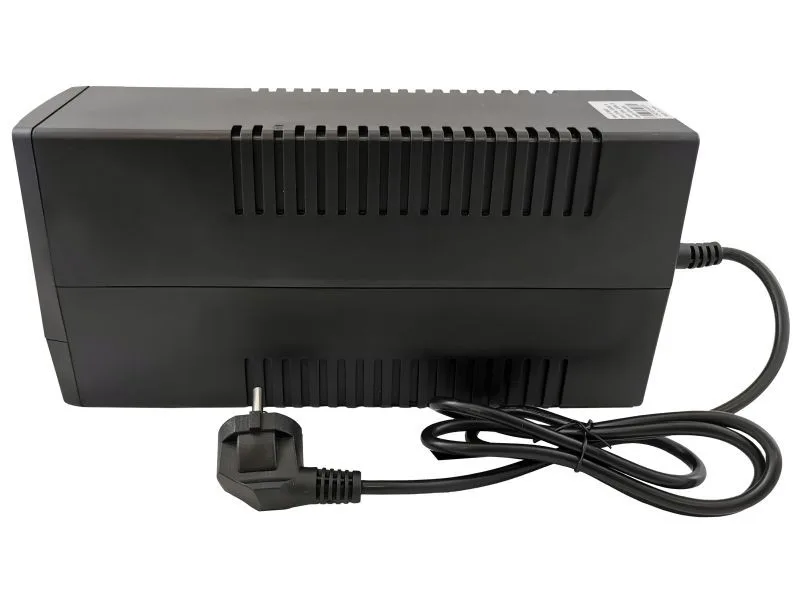

• Built-in power supply cable (length 1m) terminated with plug type F CEE 7/7
• 2 x 230V output socket type F CEE 7/3
• USB type B service port (cable included)
• Overload fuse – reset

Apparent power: 850 VA
Active power: 480 Watt
UPS Architecture: line-interactive
The shape of the output voltage: Modified sine wave
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 12 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 6 millisecond
Charging time: 6 Hour
Chassis type: Tower
Filters / protection: Overcharging
Filters / protection: Circuit
Filters / protection: Surge
Filters / protection: Overload
Input power ports:
Output power ports: 2 x C/F type (Schuko)
I/O connectors: 1 x USB (Type B)
Color: Black
Other features:

Specification

• Model: AP-BK850B
• Power: 850VA/480W

Input:

• Voltage: 220-240VAC
• Voltage Range: 140-300VAC
• Frequency range: 60/50Hz (Auto detection)

Output:

• Voltage: 220-240 VAC
• AC voltage adjustment (battery mode): 10%
• Frequency range (battery mode): 60/50Hz 1Hz
• Switching time: 2-6ms
• Waveform (battery mode): Sinusoidal wave

Battery:

• Type and quantity: 12V / 9Ah x 1
• Variable charging voltage: 13.7VDC
• Charging time: 4-6 hours to 90%

Holding time:

• 100W: 25 min.
• 200W: 10 min.
• 300W: 5 min.
• Note: The operating times shown are approximate and may change depending on the operating conditions, environment, operating time and much more.

Protection:

• Short-circuit overload
• Battery discharge and overload
• Surge protection

Indicators:

• Operating mode (mains): Green LED
• Operating mode (battery): Yellow flashing LED
• Error: Red LED

Alarms:

• Battery operation: Beep every 10 seconds
• Low battery: Beep every second
• Overload: Beep every 0.5 seconds
• Battery replacement: Tone every 2 seconds
• Error: Continuous beep

Connectivity:

• Service ports: USB type B (cable included)
• System support: Windows/macOS/Linux

Environmental conditions:

• Humidity: 0-90% / relative humidity 0-40°C (non-condensing)
• Noise level: Less than 40dB
• Dimensions (mm): 297 x 101 x 142
• Net weight (kg): 4.9
