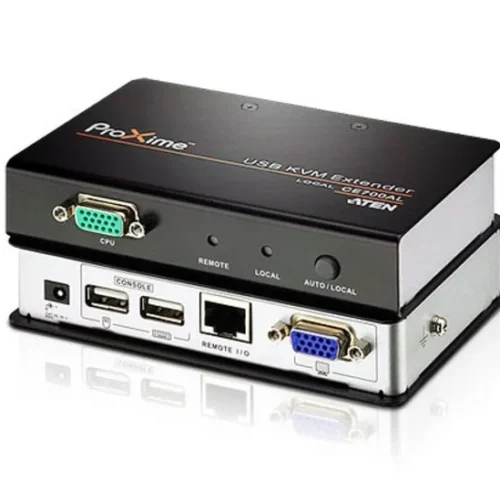

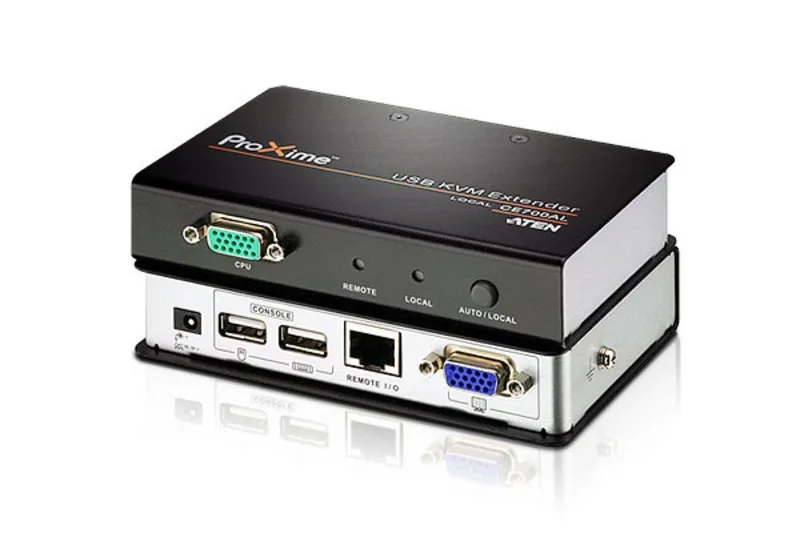

ATEN USB VGA Cat 5 KVM Ext. 1280×1024@150 CE700A

ATEN USB VGA Cat 5 KVM Ext. 1280×1024@150 CE700A

Separator:

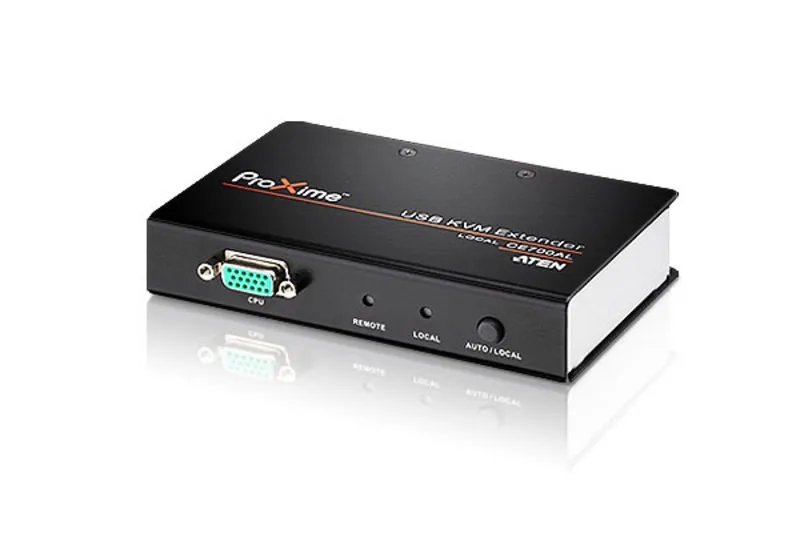

CE700AL Local Unit

Description:

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection, 2) providing superior video quality – up to 1920 x 1200 resolution, 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection, 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly, and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Console Ports: 2x USB Type A Żeński
Console Ports: 1x Video D-Sub 15pin Female
PC connectors: 1x SPHD-17pin Female
Resolution: 1280 x 1024 (SXGA)
Resolution: 1600 x 1200 (UXGA)
Resolution: 1920 x 1200 (WUXGA)
Supported operating systems: Linux
Supported operating systems: Windows
Accessories included:

• 2x Power Adapters
• 1x Custom KVM Cable (VGA, USB, 1.8m/6ft)
• 1x Mounting Kit
• 1x User Instructions

Dimensions:

12,70 x 8,65 x 2,50 cm

Weight: 0.33 kilogram
Other features:

RJ-45 female connector

Designation:
Separator:
Description:
Console Ports: 1x Video D-Sub 15pin Female
Console Ports: 2x USB Type A Żeński
Resolution: 1600 x 1200 (UXGA)
Resolution: 1920 x 1200 (WUXGA)
Resolution: 1280 x 1024 (SXGA)
Supported operating systems: Linux
Supported operating systems: Windows
Accessories included:
Dimensions:
Weight: 0.32 kilogram
Other features:
