ATEN KVM SWITCH 4 USB CARTRIDGE VGA CS84U

ATEN KVM SWITCH 4 USB CARTRIDGE VGA CS84U

Description:

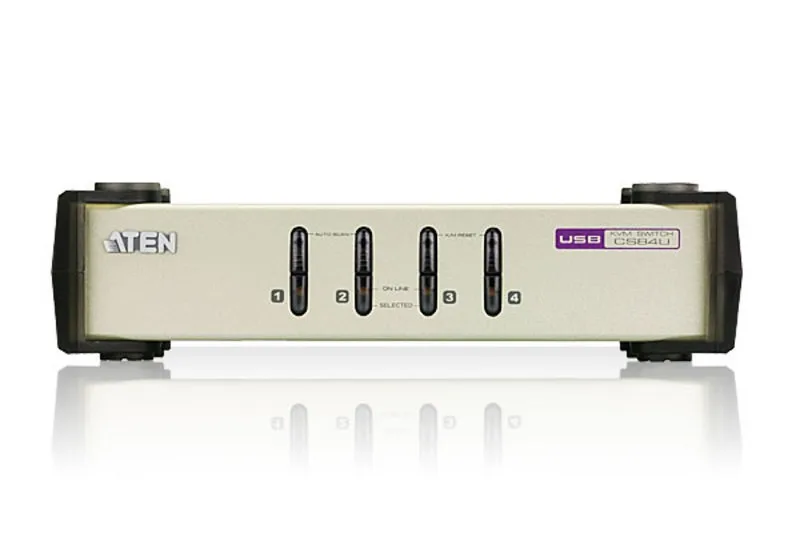

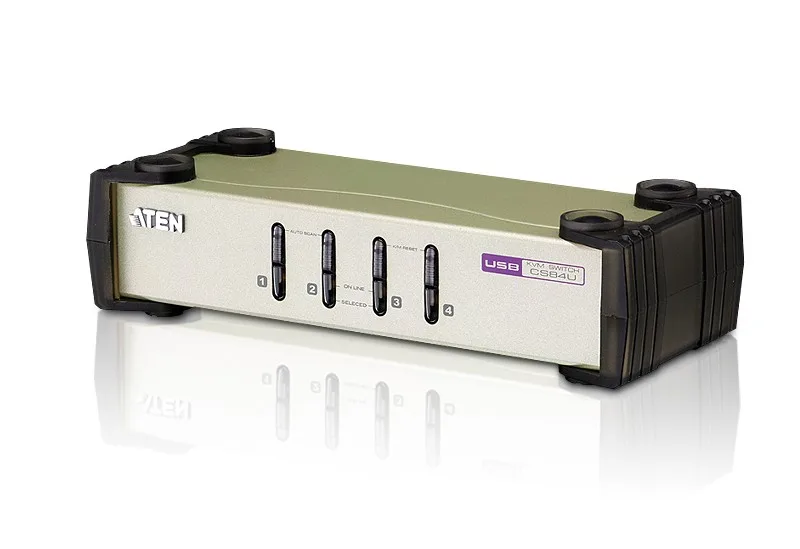

4 Port PS / 2-USB CS84U PSM Switch

The PS / 2-USB CS84U KVM Desk Controller provides access to four computers from one KVM console (Keyboard, Video, Mouse and PS / 2 mouse or USB, VGA monitor). In addition, the CS84U features ATEN’s new DynaSync &#8482, Video technology, which eliminates the problem of no display during start-up and optimizes resolution.
Preparing for work is easy and takes only a moment – just connect the wires to the appropriate ports. No need to configure the software, follow the special installation procedures. There is no compatibility issue. Because CS84U directly captures data from the keyboard, it supports a variety of system platforms.

No. of devices (max): 4
Resolution: 2048 x 1536 (QXGA)
Accessories included:

1x PS / 2-USB CS84U KVM switch

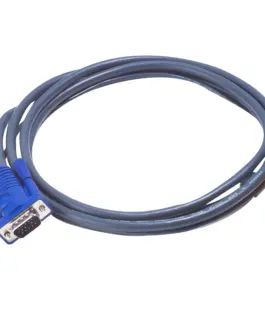

4x set of special KVM wires
1x instruction manual

Dimensions:

21.00 x 8.80 x 5.55 cm

Weight: 0.77 gram

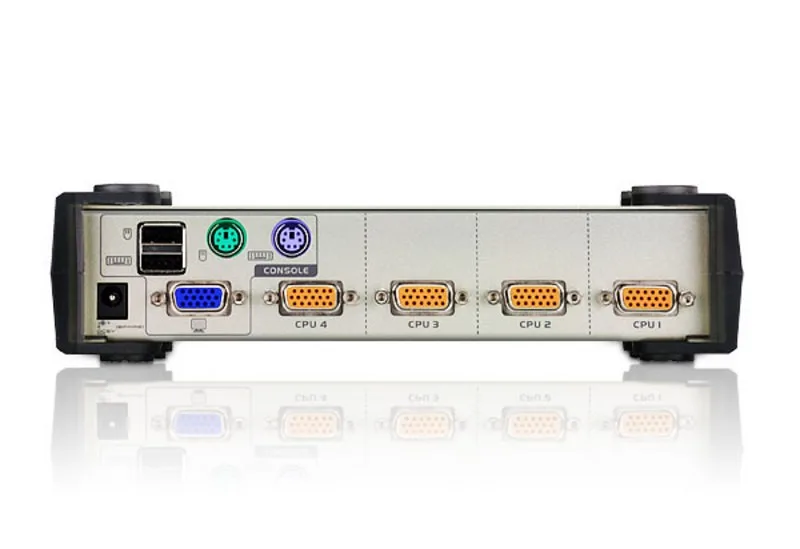

Other features:

– Console ports 2 x USB Type A female (black)
1 x 6-pin mini-DIN female (purple)
1 x 6-pin mini-DIN female (green)
1 x HDB-15 female (blue)
– Ports KVM: 4 x SPHD-18 female (yellow)
– Scan interval of 3, 5, 10, 20 s (default 5 s)
– Power Consumption: 5 V DC, 1.2 W
