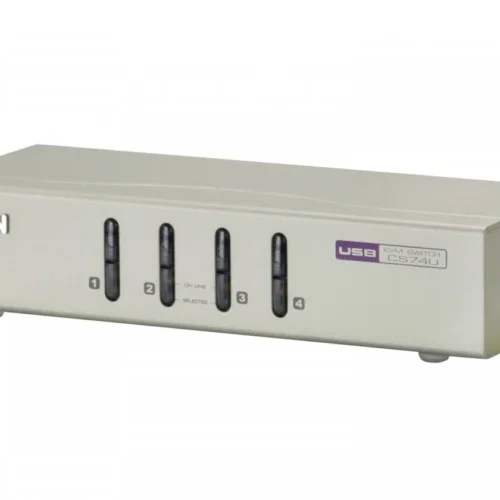

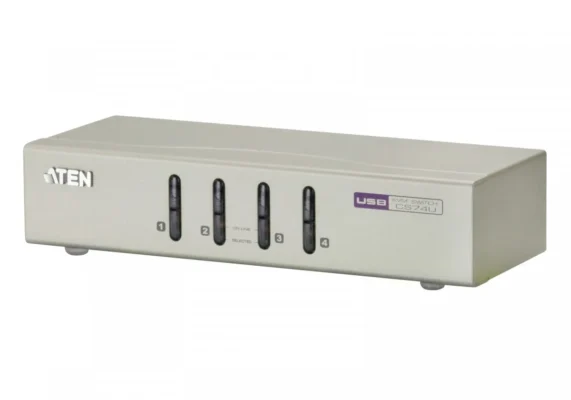

ATEN 4-Port USB VGA/Audio KVM Switch CS74U

ATEN 4-Port USB VGA/Audio KVM Switch CS74U

Description:

The CS74U 4-port USB desktop KVM control module provides access to four computers from one KVM console (Keyboard, Video, Mouse – keyboard and mouse, audio, VGA monitor).

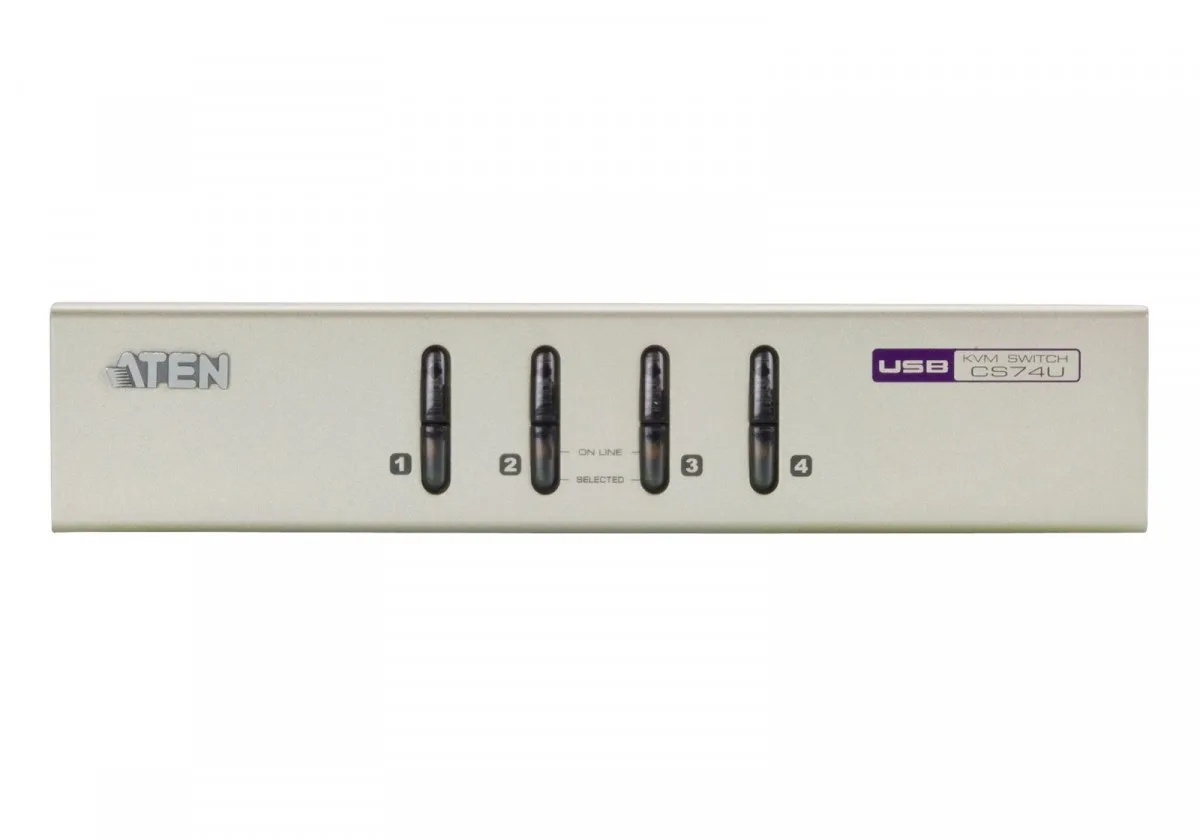

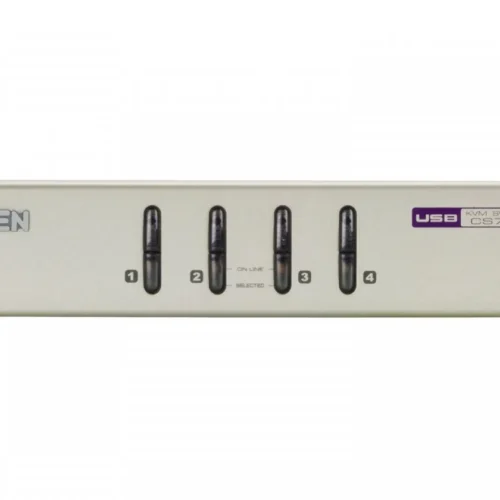

The CS74U provides convenient access to computers via port selection switches located on its front panel.

Preparation for work is easy and only takes a moment – just connect the cables to the appropriate ports. There is no need to configure the software or follow special installation procedures. There are no compatibility problems. Since CS74U directly captures keyboard data, it supports various system platforms.

• Possibility to control four computers with USB/VGA connectors from one VGA console
• Select your computer using the buttons on the front panel
• Multi-platform support: Windows, Linux and Mac
• Sound handling – full bass response, ensuring good quality in 2.1 stereo systems
• High image quality: 2048 x 1536 resolution, DDC2B
• Support USB hot plugging
• No power required

No. of devices (max): 4
Hot Swap: No
Console Ports: 1x Video D-Sub 15pin Female
Console Ports: 1x Microphone 3,5mm minijack Female
Console Ports: 1x Audio 3,5mm minijack Female
Console Ports: 2x USB Type A Żeński
PC connectors: 4x SPHD-18pin Female
Resolution: 2048 x 1536 (QXGA)
Accessories included:

• CS74U 4-port USB KVM switch
• 2x KVM cable set (VGA, USB, Audio, 1.2m)
• 2x KVM cable set (VGA, USB, Audio, 1.8m)
• User manual

Note: The included KVM cable kit is manufactured specifically for use with the CS72U / CS74U and transmits the video, audio and USB signals from the connected device to the computer. There are two sets of KVM cables for sale. (1.2m KVM Cable Set: LIN5-23X5-X31G, 1.8m KVM Cable Set: LIN5-23X5-X32G). To purchase additional sets, please contact your ATEN distributor.

Dimensions:

20 x 7.65 x 4.4 cm

Weight: 0.64 kilogram
