ATEN 4-Port USB 3.0 4K DP MST KVMP Switch CS1924M

ATEN 4-Port USB 3.0 4K DP MST KVMP Switch CS1924M

Description:

Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch is the worlds first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.

To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps allowing you to maximize multitasking operations.

The unique independent switching feature allows the KVM switchs focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.

With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.

No. of devices (max): 4
Console Ports: 2x USB Type A Żeński
Console Ports: 1 x RJ-11 Female
Console Ports: 1x HDMI Female
Console Ports: 4x Audio 3,5mm minijack Female
Console Ports: 1x DisplayPort Female
PC connectors: 4x DisplayPort Female
PC connectors: 8x Audio 3,5mm minijack Female
PC connectors: 4x USB Type B Female
Resolution: 4096 x 2160
Supported operating systems: Windows
Supported operating systems: Linux
Supported operating systems: Mac OS

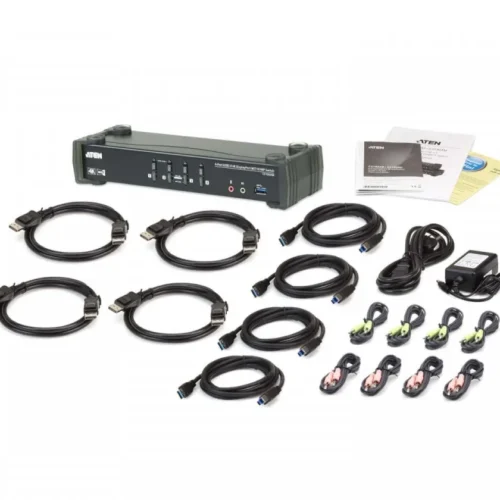

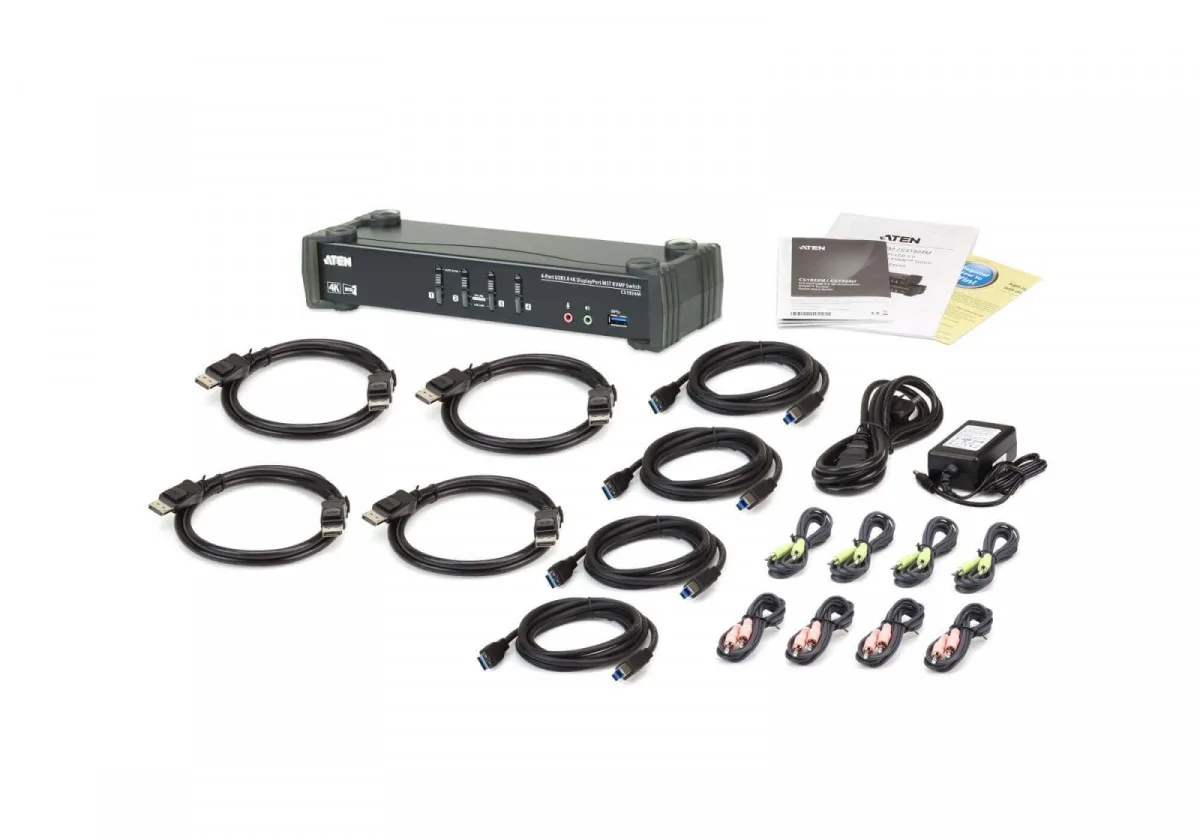

Accessories included:

• DisplayPort 1.2 cables (1.5 m / 5 feet) x4
• USB cables (USB 3.0-A to USB 3.0-B, 1.8 m / 6 feet) x4
• Audio cables (1.8 m / 6 feet) x8
• Power adapter x1
• User manual x1

Dimensions:

27,00 x 8,80 x 5,55 cm

Weight: 0.92 kilogram
Other features:

• Distributor: 2 x USB3.1 Gen1 Type A female
• Scan Interval: 1-99 seconds (Default: 5 seconds)
