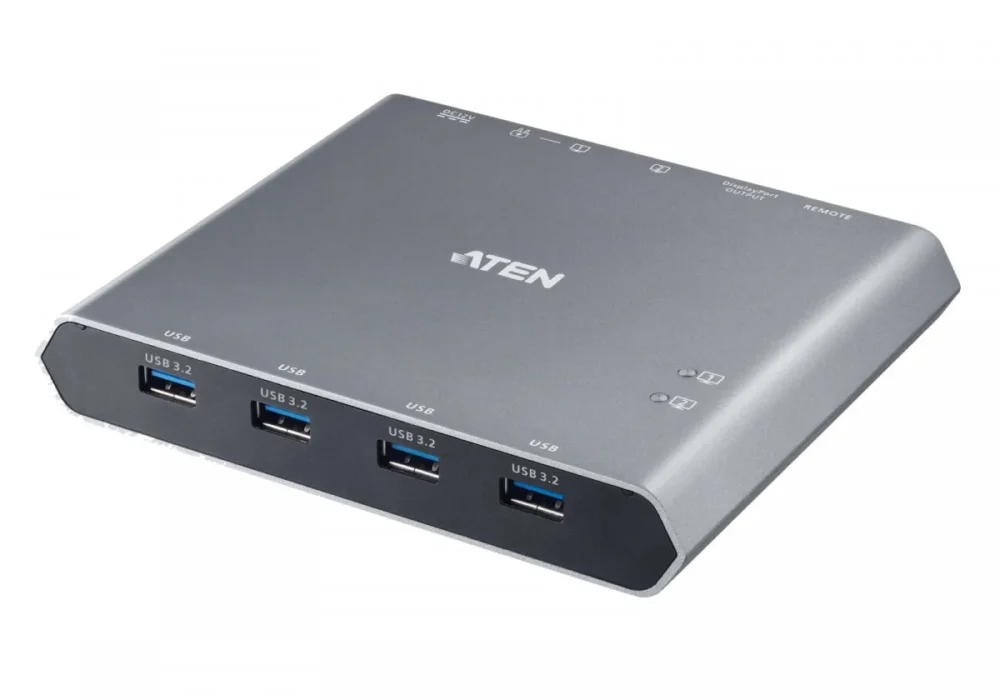

ATEN 2-Port 4K DP USB-C KVM Dock Switch with Power

ATEN 2-Port 4K DP USB-C KVM Dock Switch with Power

Description:

Switching between 2 laptops with USB-C

The US3311 takes our versatile and powerful KVM switch solutions to another dimension. It provides plug-n-play connectivity with a single USB-C cable, allowing 2 laptops to share 1 monitor and 1 set of keyboard and mouse, plus 4K@60 resolution and 4-port USB 3.2 SuperSpeed connectivity significantly saves desktop space and increases efficiency.

Superior 4-port SuperSpeed expansion

Transfer data at speeds of up to 5Gbps with 4 USB 3.2 Gen1 ports. Charge and power external devices without the need for an additional USB hub.

Outstanding switching speed

ATEN’s unique technology provides amazingly fast switching speeds. Switching between two systems takes three seconds,* making your work more efficient than ever before.

*This result is from tests conducted by ATEN. Actual switching speed may vary depending on computer performance.

Always the correct display resolutions and configurations

ATEN’s patented Video DynaSync ensures correct resolutions and display configurations when switching ports on all operating systems, ensuring smooth operation.

Exceptional AV performance at full 4K@60Hz resolution

4K DCI compatibility ensures excellent picture quality and efficient operation. The US3311 supports up to 3840×2160@60Hz and also works with 21:9 Ultrawide and 32:9 super Ultrawide monitors for intensive graphics work.

Work while charging thanks to 100W Power Delivery

The USB-C KVM Docking Switch also functions as a charging station to provide power to USB-C devices and USB peripherals.

Basic applications

The US3311 docking switch is ideal for graphics/data-intensive and multitasking operations in the following scenarios:

• Content Creation
• SOHO
• WFH
• Office

No. of devices (max): 2
Hot Swap: No
Console Ports: 4x USB Type A Female
Console Ports: 1x DisplayPort Female
PC connectors: 1 x USB Type-C Female
Resolution: 3840 x 2160
Supported operating systems: Android
Supported operating systems: Mac OS
Supported operating systems: Windows 10
Accessories included:

• US3311 2-Port 4K DisplayPort USB-C KVM Dock Switch with Power Pass-Through
• AC adapter
• 2x USB-C cable
• Port switch button
• User manual

Dimensions:

14.3 x 11.9 x 2.38 cm

Weight: 0.35 kilogram
Other features:

Aluminum housing

Designation:
System Requirements:

• Windows 10 and higher, USB-C enabled computer with DP Alt Mode*.
• * With Intel 7th-Generation Core (Kaby-Lake) and higher. More information about processor generation can be found at: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
• Mac OS X 10.12 and higher, computer with USB-C support
• Android 8.0 and above, smartphone with USB-C support and DP Alt mode**.
• **Only Samsung and Huawei support PC-like mode, others only support mirror mode. For a list of supporting mobile devices, please refer to the US3311 user manual.
• iPadOS 13.1 and higher, iPad Pro (USB-C)*.
• *Support video output in mirror mode
