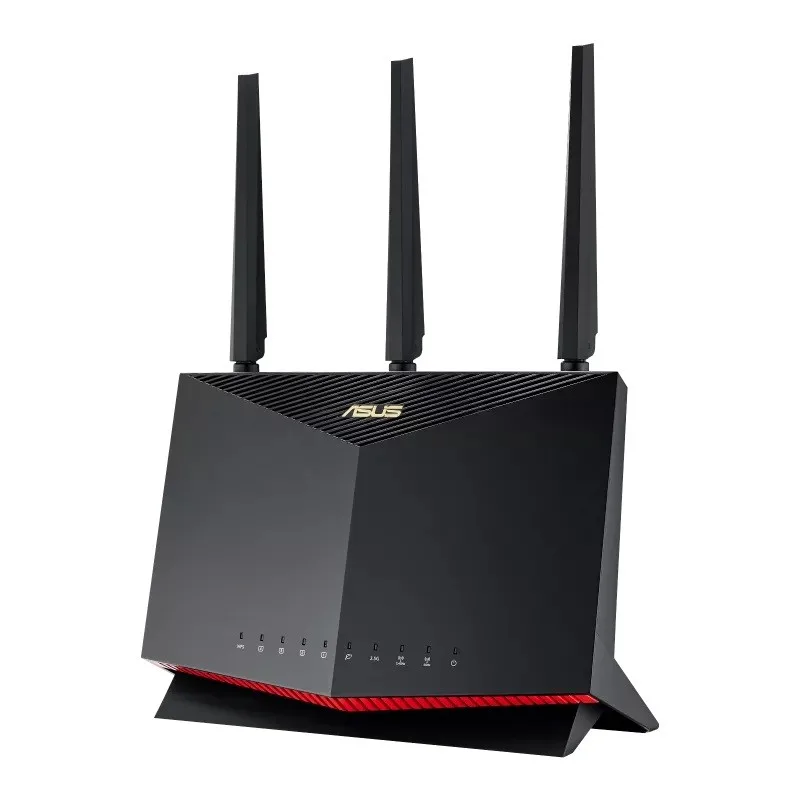

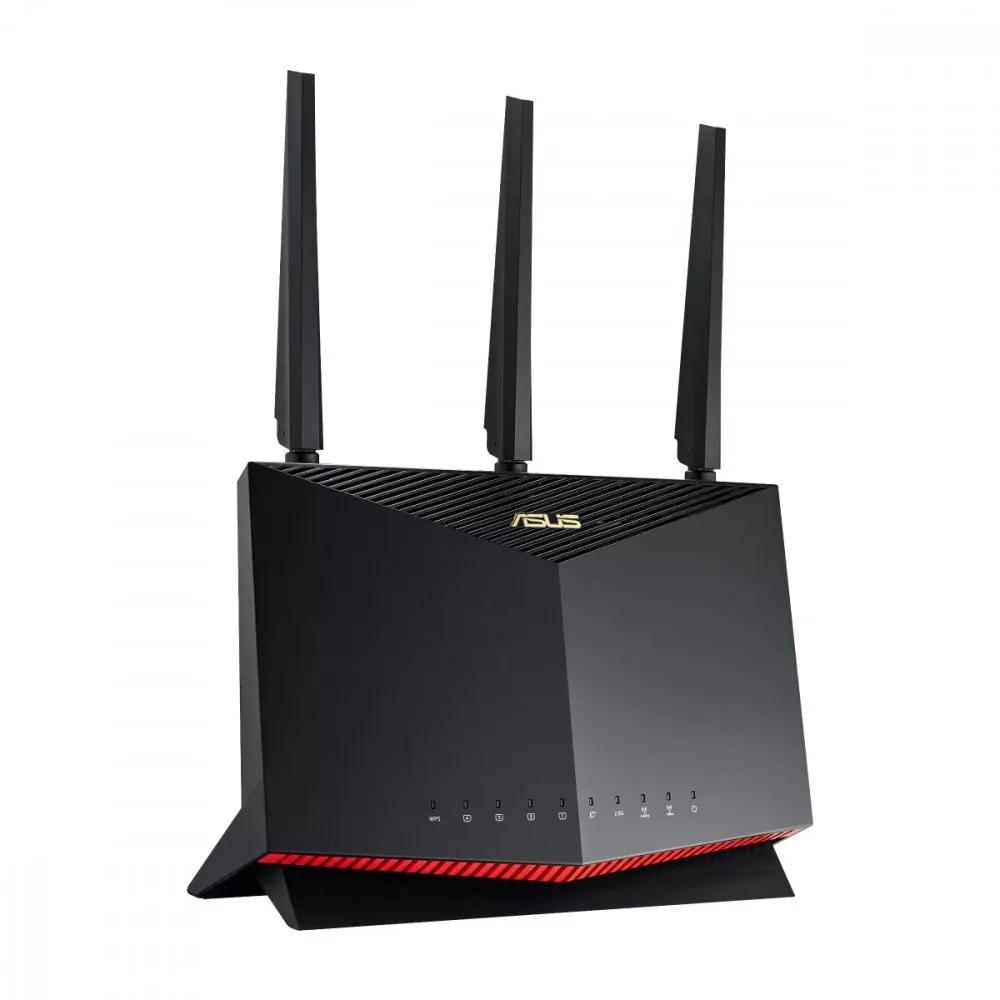

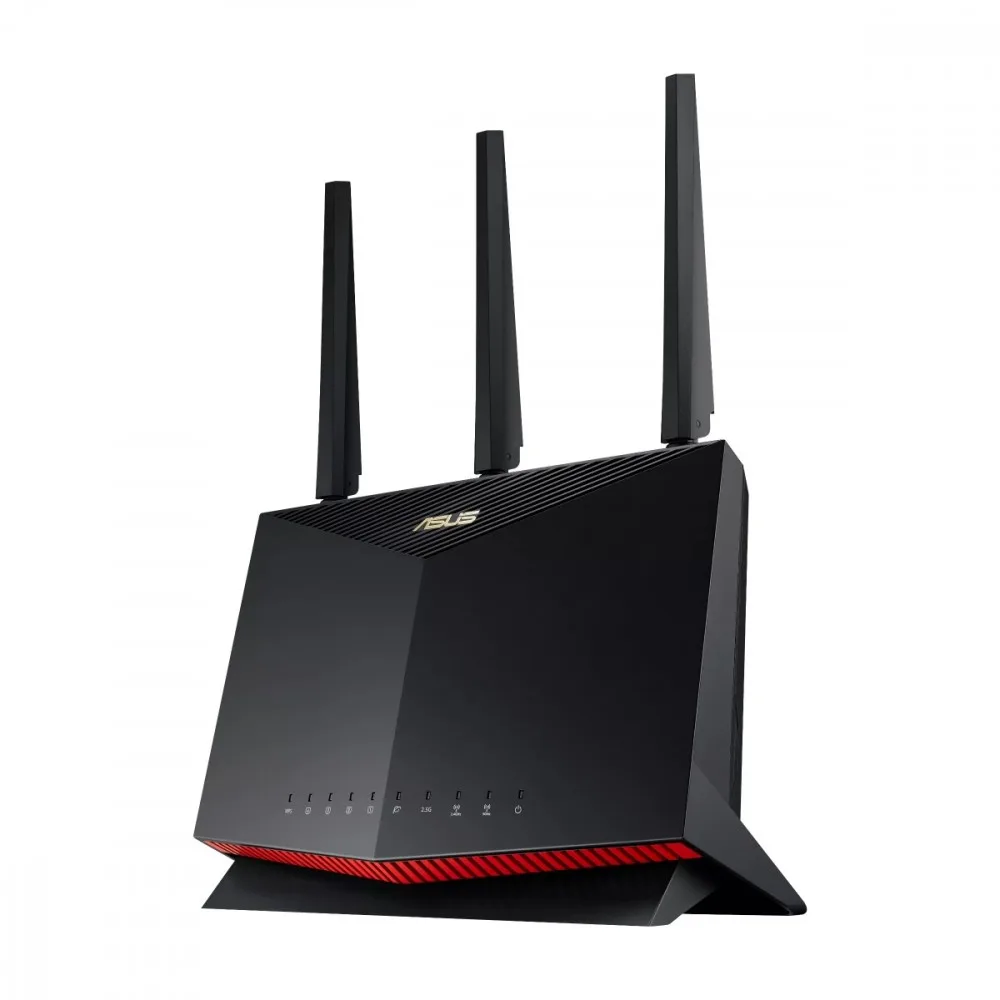

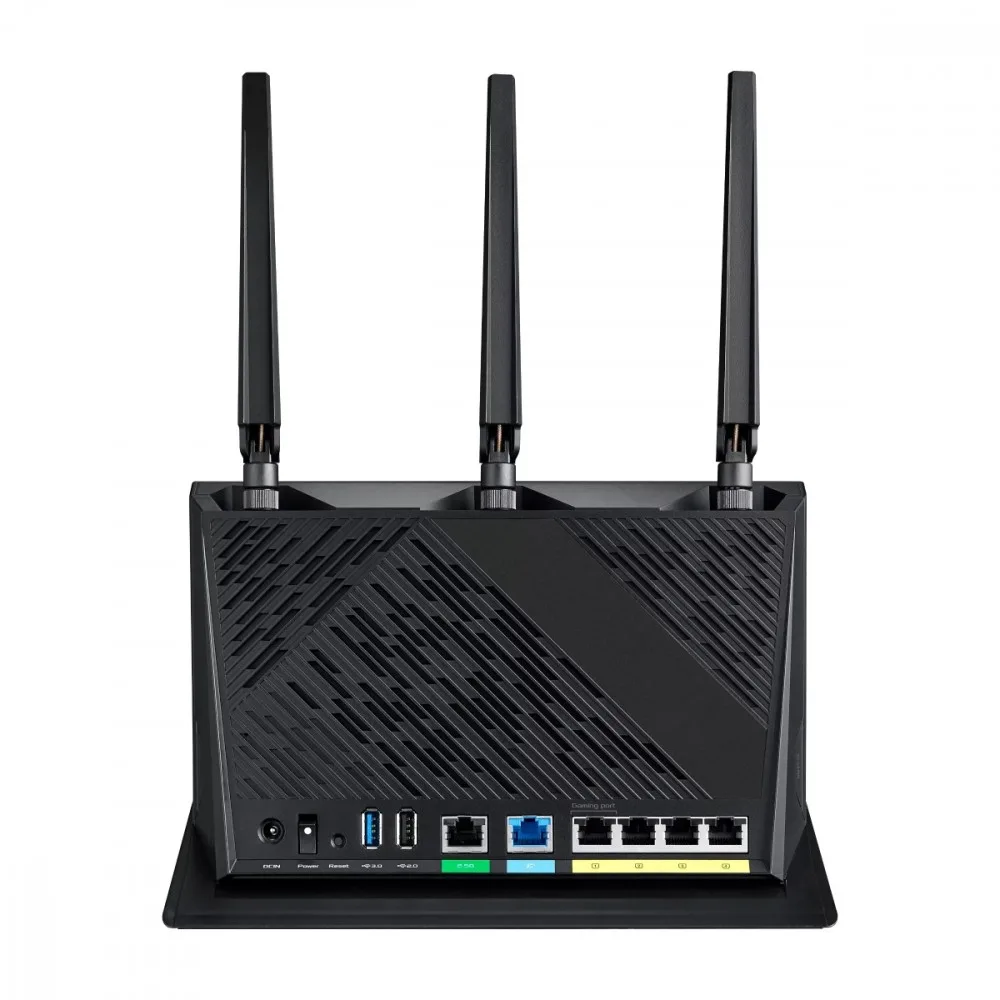

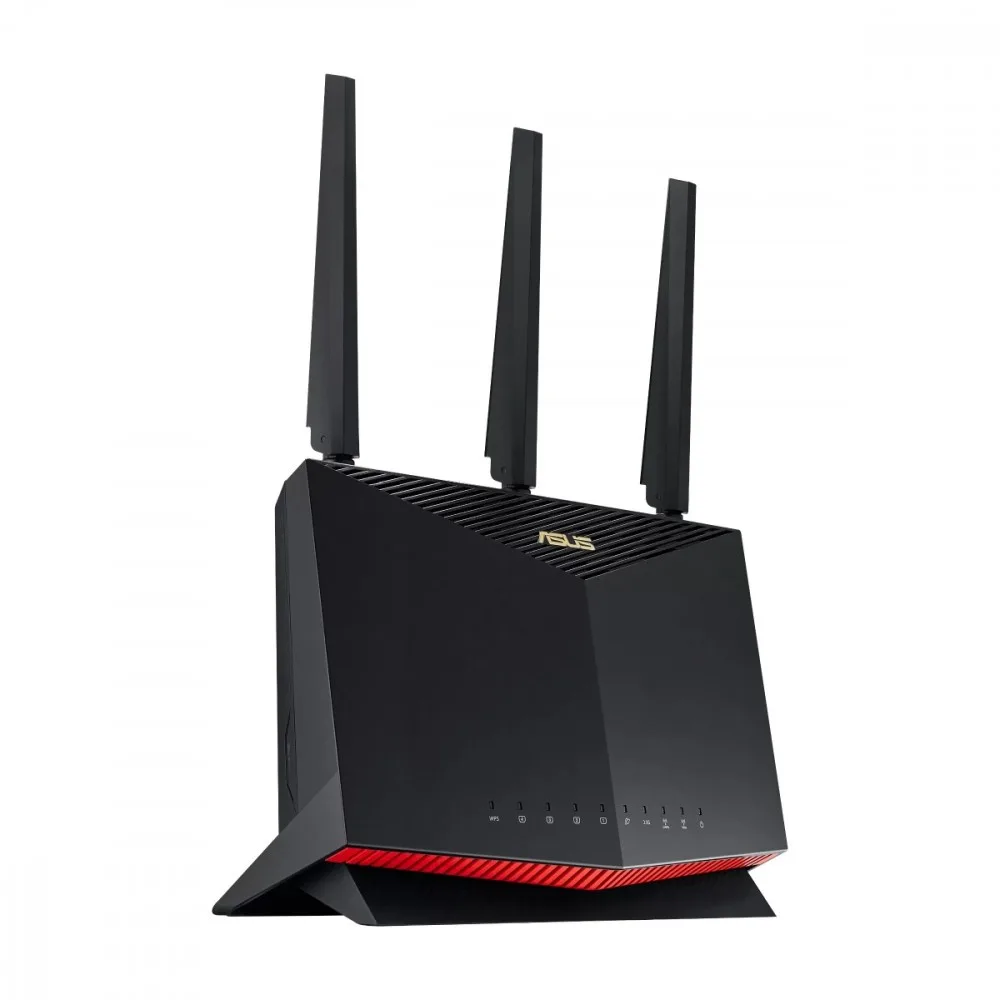

Asus Router RT-AX86U Pro Gaming WiFi 6 AX5700

Asus Router RT-AX86U Pro Gaming WiFi 6 AX5700

Model:

RT-AX86U Pro

Description:
Type: xDSL
Network architecture: GigabitEthernet
I/O ports: 1 x USB 3.0
I/O ports: 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports: 1 x 10/100/1000/2500 RJ-45 port
I/O ports: 4 x 10/100/1000Base-T RJ45 ports
I/O ports: 1 x USB 2.0
Standards: 802.11a
Standards: 802.11b
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11ax
Standards: IPv4
Standards: IPv6
Standards: 802.11g
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 4
Antenna: Fixed external
Antenna: Built-in
Security:

• WPA3-Personal
• WPA2-Personal
• WPA-Personal
• WPA-Enterprise
• WPA2-Enterprise

AiProtection Pro:

• AiProtection
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control:

• Parental Control Customized Internet schedule
• Maximum Parental Control profile: 64
• Maximum Parental Control content filter rule: 64

Management, monitoring, configuration:

Traffic Control:

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule: 32
• Traditional QoS
• Maximum Traditional QoS rule: 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

Wireless:

• IPv6
• MU-MIMO
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection time limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

WAN:

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
• Let’s Encrypt
• Safe browsing
• DNS-over-TLS

LAN:

• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule: 64

VPN:

• Instant Guard
• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application:

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• 3G/4G LTE dongle
• HDD hibernation
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration:

• Operating mode : Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• SSH
• Wake on LAN (WOL)
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update

Special functions:

• AiMesh
• Primary AiMesh router
• AiMesh node
• ASUS Router APP
• Game Boost / Acceleration
• Support Alexa skill
• AX technology

Power supply:

• 19 V at 2.37 A max current / 19.5 V at 2.31 A max current or
• 12 V at 3 A max. / 19.5 V at 2.31 A max.

Software:
System Requirements:
Accessories included:

• RT-AX86U Pro WiFi Router
• RJ-45 cable
• Charger
• Short user manual
• Warranty Card

Color: Black
Weight: 814.5 gram
Dimensions:
Other features:

• Processor: 2.0GHz Quad Core
• Memory: 256 MB Flash and 1 GB RAM

Data transmission speed:

• 802.11a : up to 54Mbps
• 802.11b: up to 11Mbps
• 802.11g: up to 54Mbps
• Wi-Fi 4 (802.11n): up to 450Mbps
• Wi-Fi 4 (802.11n) (1024QAM): Up to 750Mbps
• Wi-Fi 5 (802.11ac) (1024QAM): Up to 4333Mbps
• Wi-Fi 6 (802.11ax) (2.4GHz): Up to 861Mbps
• Wi-Fi 6 (802.11ax) (5 GHz): up to 4804 Mbps

Designation:
