APC SYA4K8I Symmetra LX 4kV A up to 8kVA N+1 SYA4K8I

APC SYA4K8I Symmetra LX 4kV A up to 8kVA N+1 SYA4K8I

Description:

APC Symmetra LX 4kVA Scalable to 8kVA N+1, 220/230/240V or 380/400/415V

APC Symmetra,2800 Watts /4000 VA, Input 230V, 400V 3PH /Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model

Apparent power: 4 kVA
Active power: 2800 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
No. of batteries: 1
Backup time (100% load): 7.5 Minute
Charging time: 3 Hour
Chassis type: Tower
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Overdischarge
Filters / protection: Suppression
Filters / protection: Circuit
Special functions:
Software:
Environment requirements:

• Ambient temperature for device operation: 040 °C
• Relative humidity: 095%
• Operating altitude (in meters above sea level): 0…10000 ft
• Ambient temperature for storage: -1545 °C
• Relative humidity (Storage): 095%
• Storage height: 0.004572.00 m
• Sound level: 62 dBA
• Heat dissipation: 2762 Btu/h

Accessories included:

• CD with software
• Documentation on CD
• Installation instructions
• User’s Guide

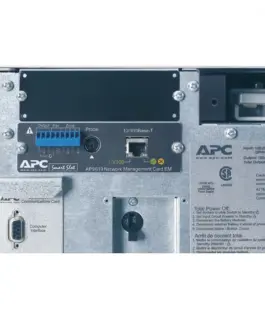

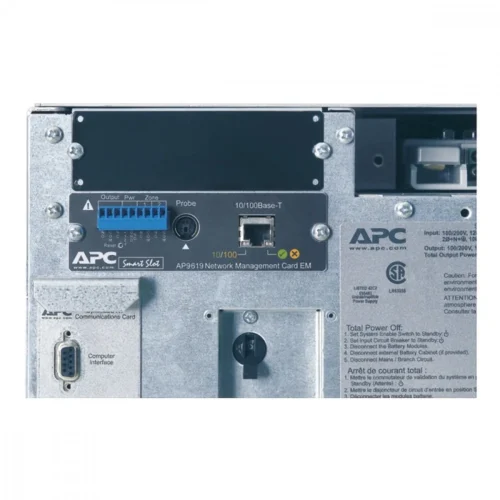

• Web SNMP Management Card for remote management

Color: Black
Dimensions:

483 x 726 x  671 mm

Weight: 157.73 kilogram
Other features:

– Output Power Capacity: 2800 W – 5600 W
– Nominal Output Voltage: 230V
– Output Voltage Distortion: Less than 5% at full load
– Crest Factor: up to 5 : 1
– Waveform Type: Sine wave
– Bypass: Internal Bypass (Automatic and Manual)
– Replacement Battery: SYBT5
– Pre-Installed SmartSlot Cards: AP9631
– Emergency Power Off (EPO)
