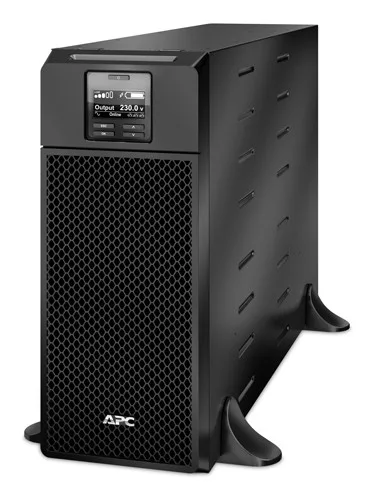

APC SRT6KXLI Smart-UPS SRT 6000VA Tower 230V

APC SRT6KXLI Smart-UPS SRT 6000VA Tower 230V

Description:

APC Smart-UPS SRT 6000VA 230V

APC Smart-UPS On-Line, 6000 Watts/6000 VA, input 230V /output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model

Apparent power: 6 kVA
Active power: 6000 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Backup time (100% load): 1.5 Minute
Charging time: 3 Hour
Chassis type: Tower
Special functions:
Software:

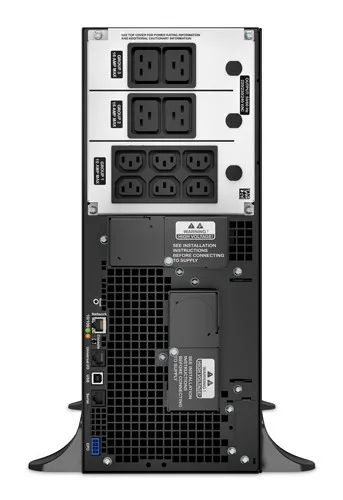

Input power ports: Hard Wire 3-wire (1PH + N + G)
Output power ports: 4 x IEC-C19
Output power ports: 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports: 6 x IEC-C13
Connectors: RJ-45
Connectors: SmartSlot
Connectors: 1 x USB (Typ B)
Environment requirements:

– Operating Environment: 0 – 40 &#176,C
– Operating Relative Humidity: 0 – 95% no %
– Operating Elevation: 0-3000 meters
– Storage Temperature: -15 – 45 &#176,C
– Storage Relative Humidity: 0 – 95% no %
– Storage Elevation: 0-15000 meters
– Audible noise at 1 meter from surface of unit: 55.0 dBA
– Online thermal dissipation: 1300.0 BTU/hr
– Protection Class: IP 20

Accessories included:

– CD with software
– Documentation CD
– Installation guide
– Removable support feet
– Temperature Probe
– USB cable
– Warranty card
– Web/SNMP Management Card

Color: Black
Dimensions:

– Height: 432 mm
– Width: 174 mm
– Depth: 719 mm

Weight: 60 kilogram
Other features:

– Nominal Output Voltage: 230V
– Output Voltage Distortion: Less than 2%
– Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
– Other Output Voltages: 220, 240
– Load Crest Factor: 3 : 1
– Topology: Double Conversion Online
– Waveform type: Sine wave
– Output Connections
– Bypass: Internal Bypass (Automatic and Manual)
– Nominal Input Voltage: 230V
– Input frequency: 40 – 70 Hz (auto sensing)
– Input Connections: Hard Wire 3 wire (1PH+N+G)
– Input voltage range for main operations: 160 – 275 V
– Input voltage adjustable range for mains operation: 100 – 275 (half load) V
– Other Input Voltages: 220, 240
