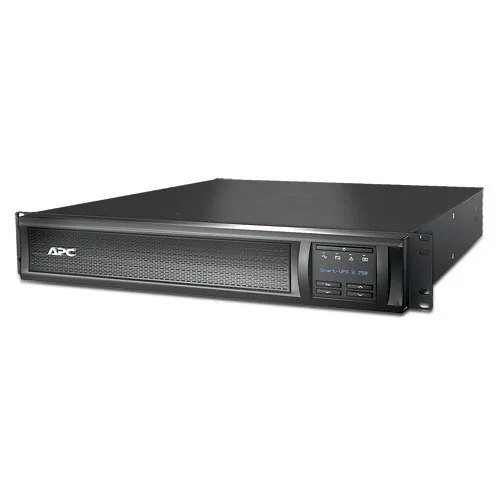

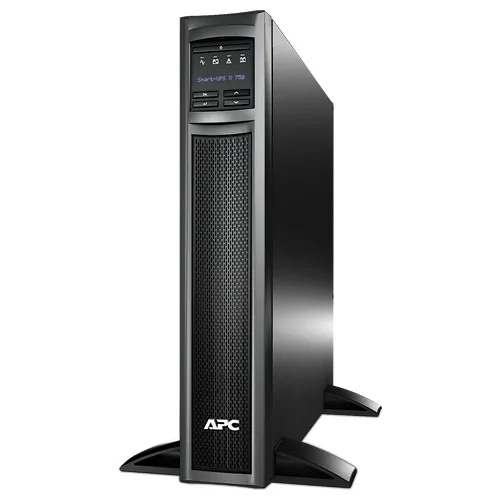

APC SMX750I SMART X 750VA USB/SERIAL/LCD/RT

APC SMX750I SMART X 750VA USB/SERIAL/LCD/RT

Description:

Apparent power: 750 VA
Active power: 600 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 48 Volt
Backup time (100% load): 14.2 Minute
Charging time: 3 Hour
Chassis type: Rack
Chassis type: Tower
Filters / protection: Overdischarge
Filters / protection: Overload
Special functions:

– EPO
– High online efficiency
– Green mode
– High frequency design
– Energy meter
– Predictive replace battery date
– Intuitive LCD interface
– Auto recognition of external batteries
– Single switched outlet group
– Multiple switched outlet groups
– Pure sine wave output on battery
– Scalable runtime
– Cold-start capable
– Plug-and-Play external batteries
– Rack/Tower convertible
– SmartSlot
– Temperature-compensated battery charging
– Boost and Trim Automatic Voltage Regulation (AVR)
– Intelligent battery management
– Power conditioning
– Temperature-compensated battery charging
– Automatic restart of loads after UPS shutdown
– Automatic self-test
– Disconnected battery notification
– Network manageable
– Audible alarms
– LED status indicators
– Serial connectivity
– USB connectivity
– Disconnected battery notification
– User-replaceable batteries
– Hot-swappable batteries
– Predictive failure notification
– Resettable circuit breakers
– Battery failure notification
– Adjustable voltage-transfer points
– Adjustable voltage sensitivity
– Safety-agency approved

Software:

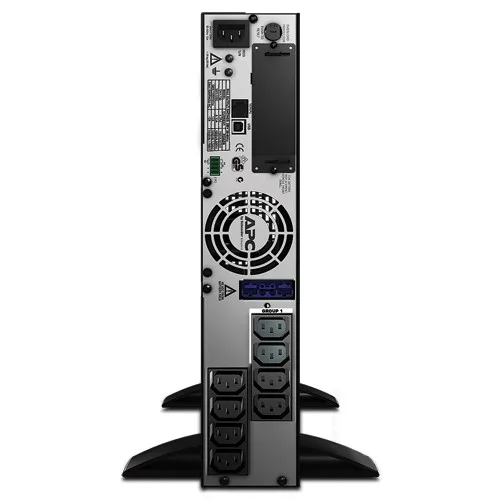

Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
Connectors: 1 x USB (Typ B)
Connectors: SmartSlot
Environment requirements:

– Operating Environment: 0 – 40 &#176,C
– Operating Relative Humidity: 0 – 95%
– Operating Elevation: 0-3000 meters
– Storage Temperature: -15 – 45 &#176,C
– Storage Relative Humidity: 0 – 95%
– Storage Elevation: 0-15000 meters
– Audible noise at 1 meter from surface of unit: 40.00 dBA
– Online Thermal Dissipation: 69.00 BTU/hr

Accessories included:

– CD with software
– Documentation CD
– Installation guide
– Rack Mounting brackets
– Removable support feet
– Smart UPS signalling RS-232 cable
– User Manual

Color: Black
Dimensions:

– Height: 89 mm
– Width: 432 mm
– Depth: 490 mm
– Rack Height 2U

Weight: 22.05 kilogram
Other features:

– Output Power Capacity: 600 Watts
– Nominal Output Voltage: 230V
– Output Voltage Distortion: Less than 5%
– Waveform Type: Sine wave
– Output Connections: (2) IEC Jumpers
– Available SmartSlot&#8482, Interface Quantity: 1
– Surge energy rating: 645 Joules

Designation:
