APC SMX3000RMHV2UNC 3000VA USB/RS/AP9631/LCD/RT 2U

APC SMX3000RMHV2UNC 3000VA USB/RS/AP9631/LCD/RT 2U

Description:

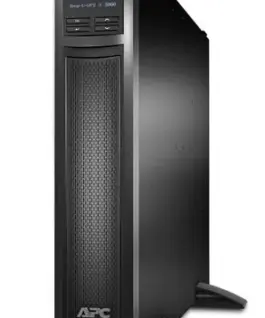

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V with Network Card
APC Smart-UPS,2700 Watts /3000 VA ,Input 208V, 230V/Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 2 U

Apparent power: 3000 VA
Active power: 2700 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 120 Volt
Battery capacity: 600 VAh
Hold-up time (maks): 4 millisecond
Backup time (100% load): 6.3 Minute
Charging time: 3 Hour
Chassis type: Rack
Chassis type: Tower
Special functions:

– Boost and Trim Automatic Voltage Regulation (AVR)
– Intelligent battery management
– Power conditioning
– Temperature-compensated battery charging
– Automatic restart of loads after UPS shutdown
– Automatic self-test
– Disconnected battery notification
– Network manageable
– Audible alarms
– LED status indicators
– Serial connectivity
– USB connectivity
– Disconnected battery notification
– User-replaceable batteries
– Hot-swappable batteries
– Predictive failure notification
– Resettable circuit breakers
– Battery failure notification
– Adjustable voltage-transfer points
– Adjustable voltage sensitivity
– Safety-agency approved

Software:

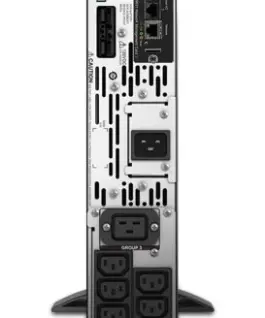

Input power ports: IEC-C20
Input power ports: Type F Schuko
Input power ports: Type G British
Output power ports: 8 x IEC-C13
Output power ports: 1 x IEC-C19
Connectors: SmartSlot
Environment requirements:

– Operating Environment: 0 – 45 &#176,C
– Relative Humidity: 0 – 95%
– The height above sea level Operating: 0-3000 m
– Temperature (storage): -15 – 45 &#176,C
– Relative humidity (storage) 0 – 95%
– The height above sea level (storage): 0-15000 m
– The noise level at 1 meter from surface of unit 55.00 dBA
– Dissipation: 184.00 BTU / hr.

Accessories included:

– CD with software
– Rack Mounting support rails
– Smart UPS signalling RS-232 cable
– Temperature Probe
– User Manual
– Web/SNMP Management Card

Color: Black
Dimensions:

– Height: 85 mm
– Width: 432 mm
– Depth: 667 mm
– Rack Height 2U

Weight: 37.32 kilogram
Other features:

– Output Power: 2700W
– Output voltage: 208/220/230/240V
– Waveform Type: Sine wave
– Crest Factor: 3: 1
– 2 x IEC Jumpers
– Input voltage: 208/230V, 140-280V
– Cord Length: 1.83 m
– Emergency power supply
– Surge energy rating: 645 joules
