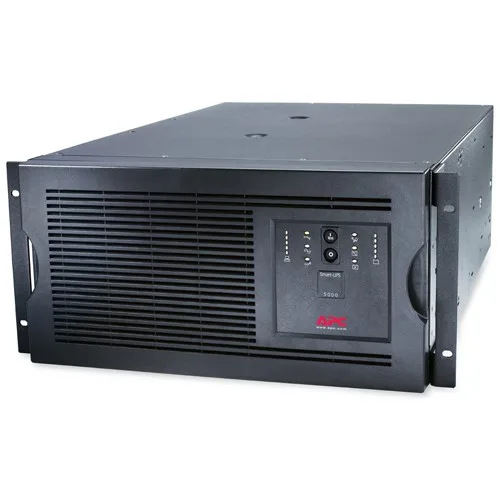

APC SMART-UPS 5000VA RM 5U SUA5000RMI5U

APC SMART-UPS 5000VA RM 5U SUA5000RMI5U

Description:

APC&#160,Smart-UPS,4000 Watts /5000 VA,Input&#160,230V /Output&#160,230V, Interface Port DB-9 RS-232, SmartSlot, Rack Height 5&#160,U

Apparent power: 5 kVA
Active power: 4000 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 2
Battery capacity: 816 VAh
Backup time (100% load): 9.4 Minute
Charging time: 3 Hour
Chassis type: Rack
Filters / protection: Surge
Filters / protection: Overload
Filters / protection: Suppression
Filters / protection: Circuit
Special functions:

– Resettable circuit breakers
– Boost and Trim Automatic Voltage Regulation (AVR)
– Serial connectivity
– Disconnected battery notification
– Adjustable voltage-transfer points
– Audible alarms
– Automatic self-test
– Cold-start capable
– Hot-swappable batteries
– Network manageable
– Rack/Tower convertible
– Safety-agency approved
– Serial connectivity
– SmartSlot
– Temperature-compensated battery charging
– Boost and Trim Automatic Voltage Regulation (AVR)
– Intelligent battery management
– Power conditioning
– Temperature-compensated battery charging
– Automatic restart of loads after UPS shutdown
– Automatic self-test
– Disconnected battery notification
– Network manageable
– Audible alarms
– LED status indicators
– Serial connectivity
– USB connectivity
– Disconnected battery notification
– User-replaceable batteries
– Hot-swappable batteries
– Predictive failure notification
– Resettable circuit breakers
– Battery failure notification
– Adjustable voltage-transfer points
– Adjustable voltage sensitivity

Software:

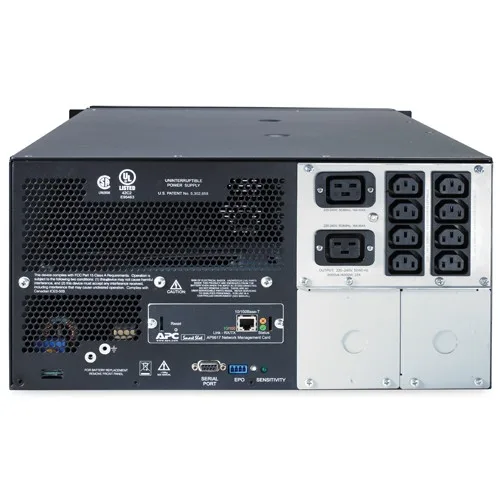

Input power ports: Hard Wire 3-wire (1PH + N + G)
Output power ports: 2 x IEC-C19
Output power ports: 8 x IEC-C13
Connectors: SmartSlot
Connectors: RS-232 (COM)
Environment requirements:

– Operating Environment: 0 – 40 &#176,C
– Operating Relative Humidity: 0 – 95%
– Operating Elevation: 0-3000 meters
– Storage Temperature: -15 – 45 &#176,C
– Storage Relative Humidity: 0 – 95%
– Storage Elevation: 0-15000 meters
– Audible noise at 1 meter from surface of unit: 53.00 dBA
– Online Thermal Dissipation: 430.00 BTU/hr

Accessories included:

– CD with software
– Documentation CD
– Installation guide
– Rack mounting hardware
– Rack Mounting support rails
– Smart UPS signalling RS-232 cable
– User Manual
– Web/SNMP Management Card

Color: Black
Dimensions:

Maximum Height: 222.00 mm
Maximum Width: 483.00 mm
Maximum Depth: 660.00 mm
Rack Height: 5U

Weight: 97.73 kilogram
Other features:

– Output Power Capacity: 4000 Watts / 5000 VA
– Nominal Output Voltage: 230V
– Output Voltage Distortion: Less than 5% at full load
– Waveform Type: Sine wave
– Output Connections: (4) IEC Jumpers
– Audible Alarm&#160,&#160,&#160,
– Replacement Battery: RBC55
– Pre-Installed SmartSlot&#8482, Cards: AP9630
– Surge energy rating: 480 Joules
