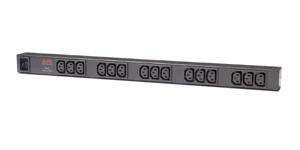

APC RACK PDU BASIC ZERO U 16A 208/230V C13 AP9572

APC RACK PDU BASIC ZERO U 16A 208/230V C13 AP9572

Description:

Basic Rack PDU device

Rack PDU, Basic, Zero U, 16A, 208 / 230V, (15) C13

APC Basic Rack PDU, at the input: 200V, 208V, 230V, Input socket type: IEC-320 C20, Power cord length: 8.2 feet (ft.) (2.5 meters), output: 200V, 208V, 230V, Output sockets: IEC 320 C13

Color: Black
Dimensions:

Maximum height: 620.00 mm

Macroscopic width: 44.00 mm

Maximum depth: 44.00 mm

Package weight: 2.73 kg

Height in transport packaging: 638.00 mm

Width in transport packaging: 168.00 mm

Delivery height: 146.00 mm

Weight: 2 kilogram
Certificates:

Lista cUL, CE, Queensland Australia, UL 60950, Lista UL, VDE

Technical specifications:

At the exit:

• &#160,&#160,&#160,&#160, Output voltage: 200V, 208V, 230V
• &#160,&#160,&#160,&#160, Maximum total power consumption: 16A
• &#160,&#160,&#160,&#160, Output sockets: (15) IEC 320 C13

At the entrance:

• &#160,&#160,&#160,&#160, Input voltage: 200V, 208V, 230V
• &#160,&#160,&#160,&#160, Frequency at input: 50/60 Hz
• &#160,&#160,&#160,&#160, Input jack type: IEC-320 C20
• &#160,&#160,&#160,&#160, Power cord length: 2.5 meters
• &#160,&#160,&#160,&#160, Number of power cables: 1
• &#160,&#160,&#160,&#160, Maximum current in the line: 16A
• &#160,&#160,&#160,&#160, Maximum input current: 16A
• &#160,&#160,&#160,&#160, Load level: 3680 VA

Environmental parameters:

• &#160,&#160,&#160,&#160, Operating environment: 0 – 45 &#176, C
• &#160,&#160,&#160,&#160, Relative humidity during operation: 5 – 95%
• &#160,&#160,&#160,&#160, Height m.p. during work: 0-3000 meters
• &#160,&#160,&#160,&#160, Temperature (storage): -25 – 65 &#176, C
• &#160,&#160,&#160,&#160, Relative humidity (storage): 5 – 95%
• &#160,&#160,&#160,&#160, Height m.p. (storage): 0-15000 meters

Included:

Buckles for mounting in industrial cabinets, Kit for assembly without tools, User’s guide
