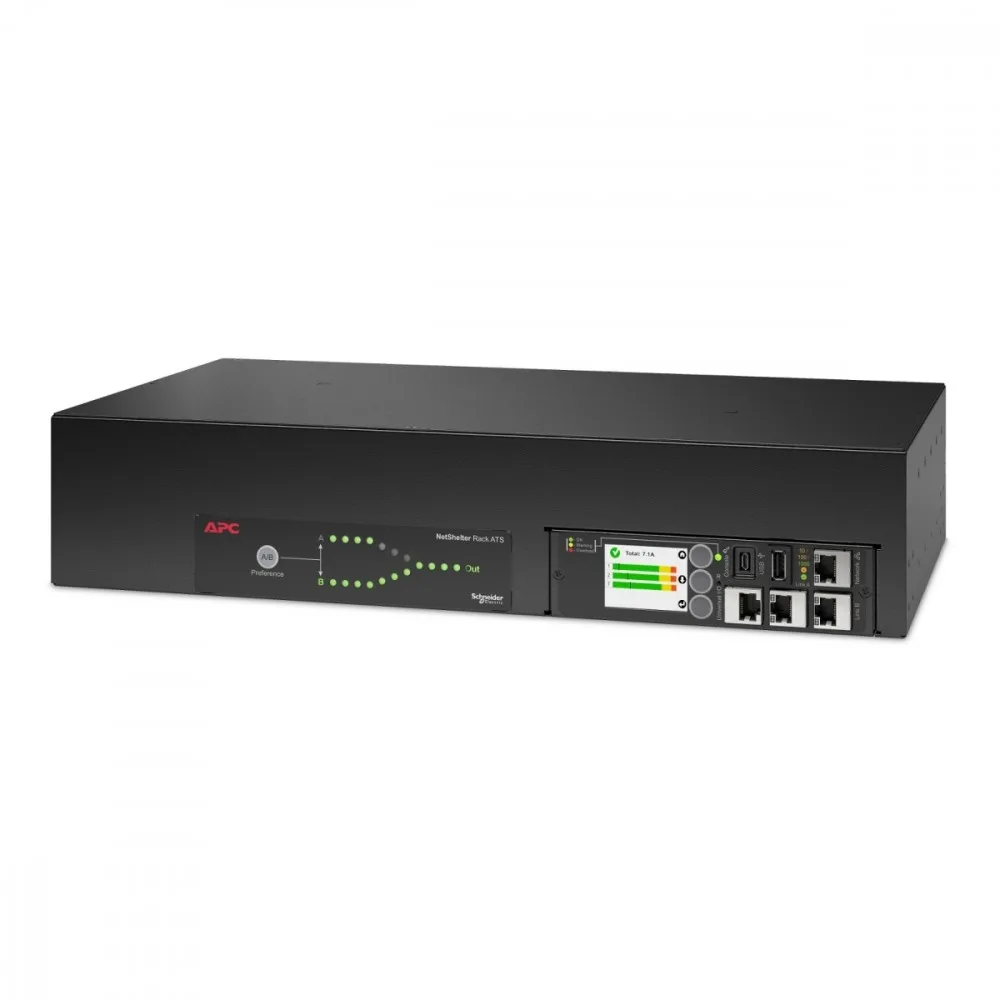

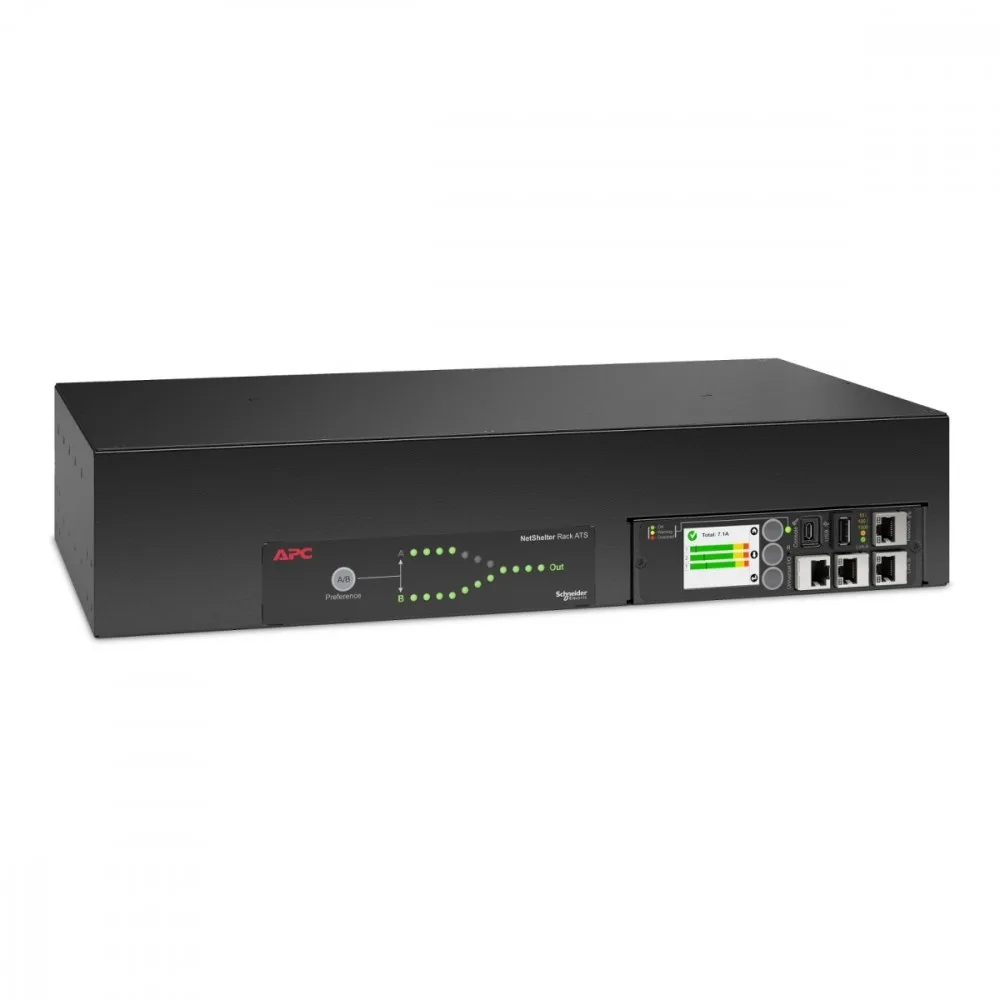

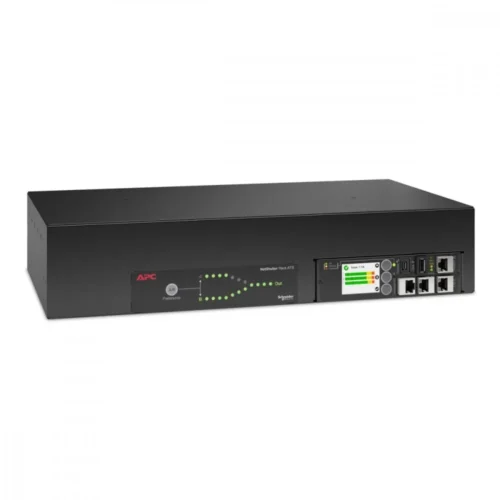

APC Rack Automatic Transfer Switch AP4424A 230V, 32A, IEC 309 in, (16) C13 (2) C19 out

APC Rack Automatic Transfer Switch AP4424A 230V, 32A, IEC 309 in, (16) C13 (2) C19 out

Description:

AP4424A Transfer Switch, ATS 32A, 230V, IEC 309 Input, Outputs 16xC13, 2xC19

Number of phases input: 1 (230V)
Voltage: 230 Volt
Chassis type: Rack
Special functions:
Software:
Input power ports: IEC 60309

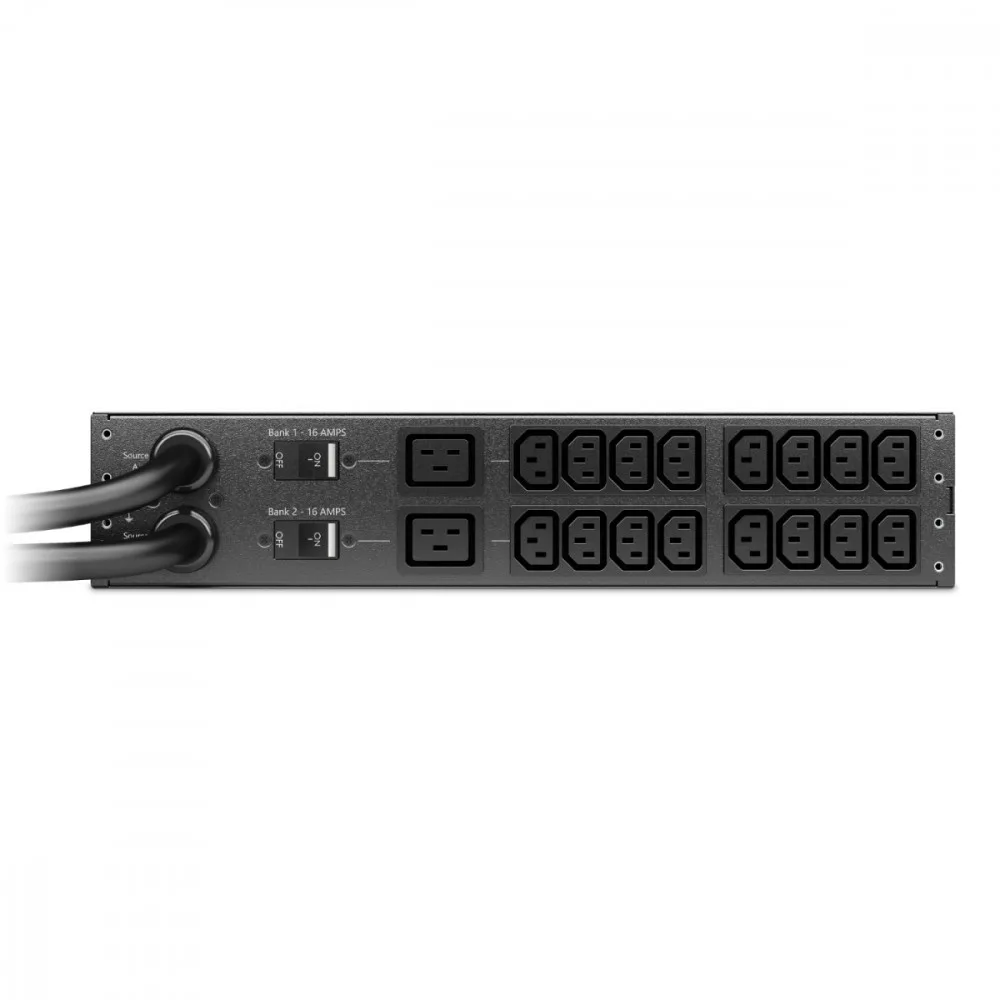

Output power ports: 2 x IEC-C19
Output power ports: 16 x IEC-C13
I/O connectors: 1 x micro USB (Type B)
I/O connectors: 4 x RJ-45 LAN
I/O connectors: 1 x USB Service
Environment requirements:

• Ambient temperature for device operation: -5 – 45 °C
• Relative humidity: 5 – 95%
• Ambient temperature for storage: -25 – 65 °C
• Relative humidity (storage): 5 – 95%

Accessories included:

• Fixing hardware
• Clamps for mounting in industrial cabinets
• Serial cable for configuration

Color: Black
Dimensions:

8,8 x 43,2 x 23,6 cm

Weight: 6.94 kilogram
Other features:

• Rack height: 2U
• Load level: 7400VA
• Maximum total current consumption: 32 A
• Type of protection: Circuit breaker
