AKYGA AK-B1-500 ATX 500W захранващ блок

Description:

Akyga AK-B1-500 ATX power supply 500W is one of the basic power supplies in our offer dedicated to power desktop computers.

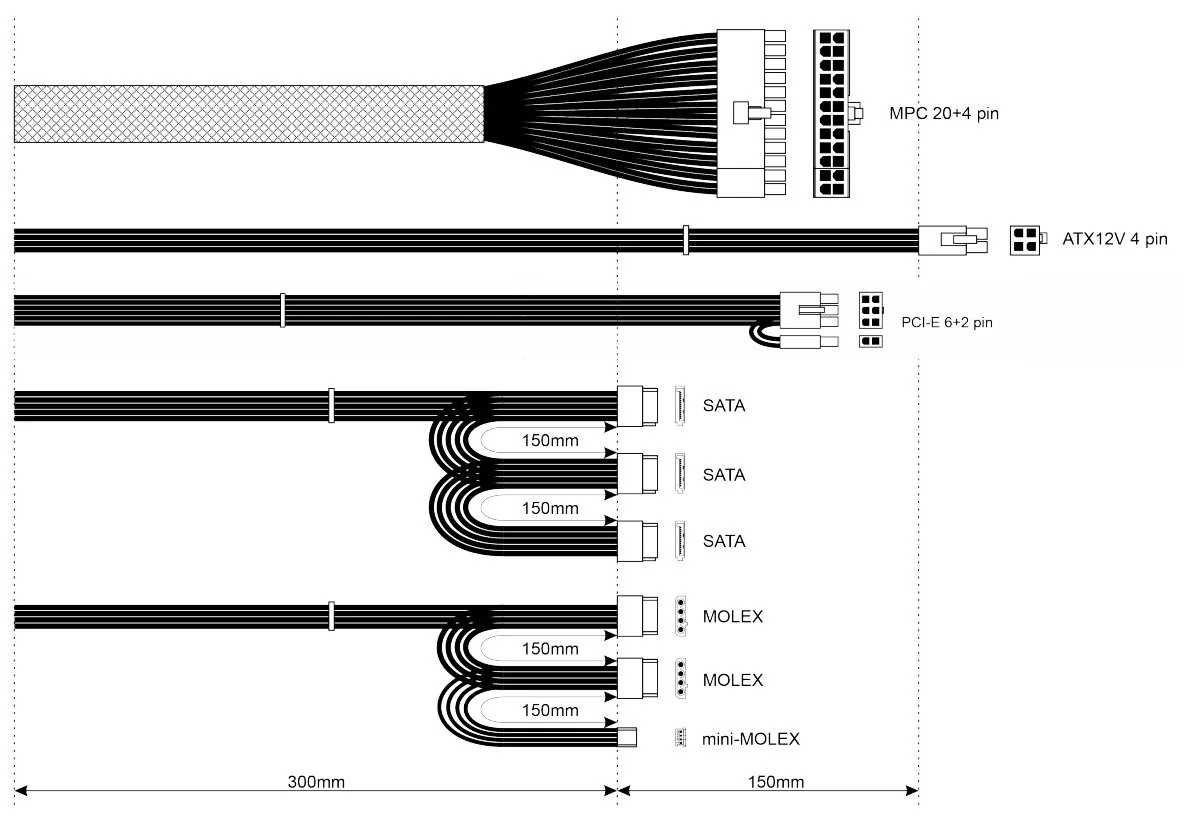

Made of high quality components, the power supply has a 3 SATA connectors, 2 MOLEX connectors, mini-MOLEX connector, P4 4-pin connector, PCI-E 6+2-pin connector and an universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Power supply: 500 W
Fan: 12 cm
PFC: Passive
PFC: Yes
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 3
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 1
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 0
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 1
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 20 + 4 pin
Modular power supply: No
Certificates 80+: None
Filters / protection: Thermal
Filters / protection: Current too high
Filters / protection: Circuit
Filters / protection: Overload
Filters / protection: Surge
Accessories included:
Dimensions:

140 x 150 x 85 mm

Weight: 1.03 kilogram
Other features:

• Product codeAK-B1-500
• Product typeComputer power supply
• FormatATX 2.31
• SeriesBasic
• Power consumption< 5 A
• Efficiency> 70 %
• 80 PLUS compatibilityNo
• 80 PLUS certificateNone

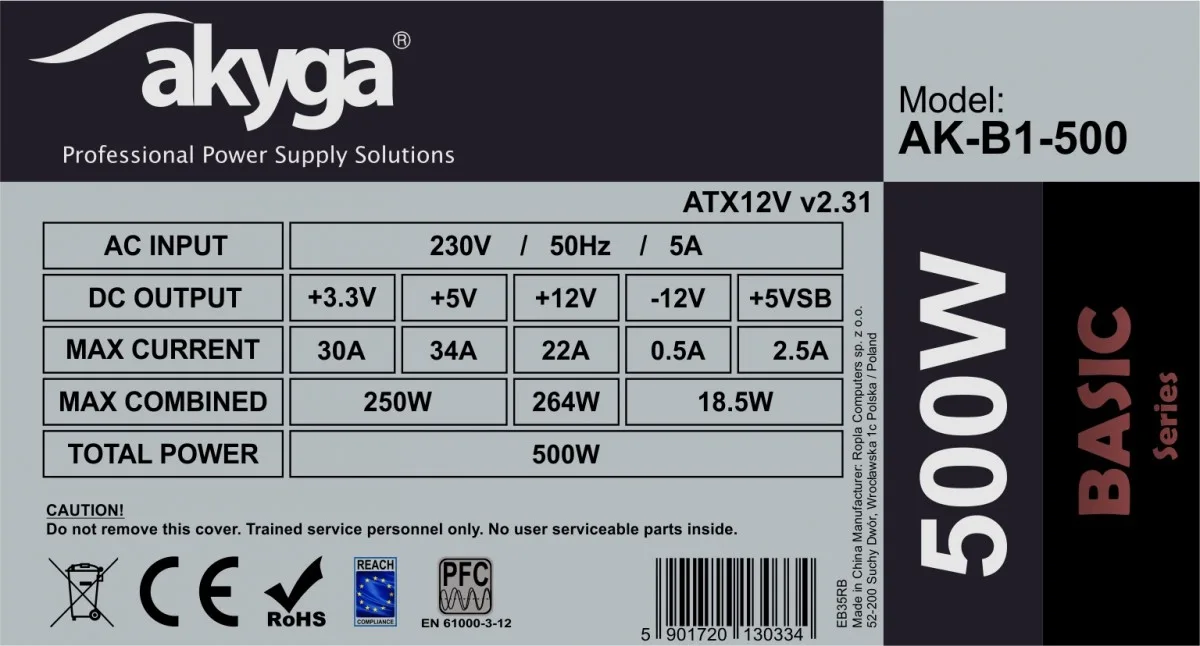

• Current on the +3.3V rail30 A
• Current on the +5V rail34 A
• Maximum load on +3.3V and +5V line250 W
• Current on the +12V rail22 A
• Maximum load on 12V line264 W
• Maximum power500 W
• Mainboard Power Connector24-pin
• Power connector ATX12V P41 pc
• Power connector EPS12V 8 pinNone
• Power connector PCI-E 6 pinNone
• Power connector PCI-E 6+2 pin1 pc
• Power connector PCI-E 8 pinNone
• Molex connector2 pcs
• Mini-Molex connector1 pc
• SATA connector3 pcs
• Modular power supplyNo
• PFC filterPassive

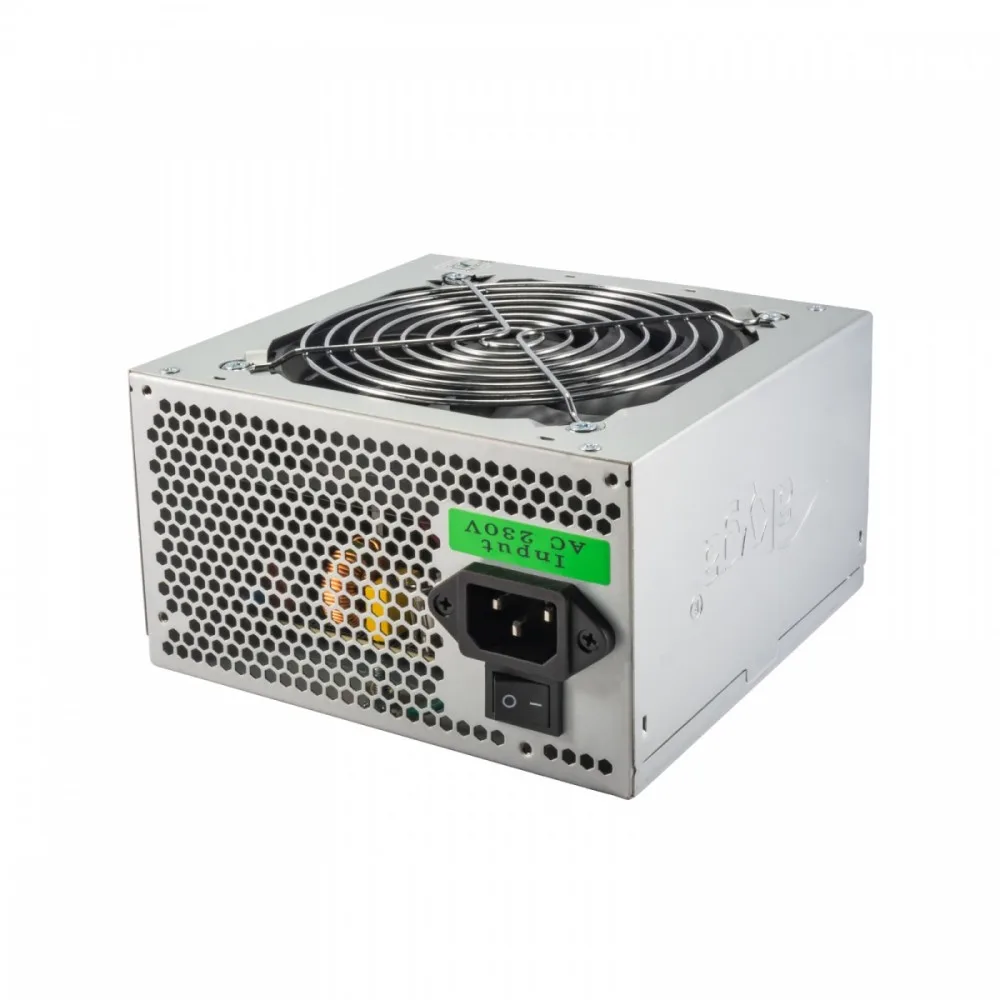

• Mechanical switchYes
• Ground wireYes
• OVPYes
• OCPYes
• OPPYes
• OTPYes
• SCPYes
• UVPNone
• Power supply connectorIEC C14
• Fan size120 mm
• Fan adjustmentsAutomatic
• Cable length30 – 60 cm
• Power cable includedNo
• MaterialGalvanized steel
• Product colorGrey
• MTBF100000 h
• Temperature5 – 50 °C
• PackageEcoBox
• Product size (L x W x H)140 x 150 x 85 mm
• Package size (L x W x H)220 x 160 x 95 mm
• Net weight1.03 kg
• Gross weight1.1 kg
• CE compatibilityYes
• FCC compatibilityNo
• RoHS compatibilityYes
• REACH compatibilityYes
• EAN code5901720130334
• Warranty24 months

Designation:
