Description:

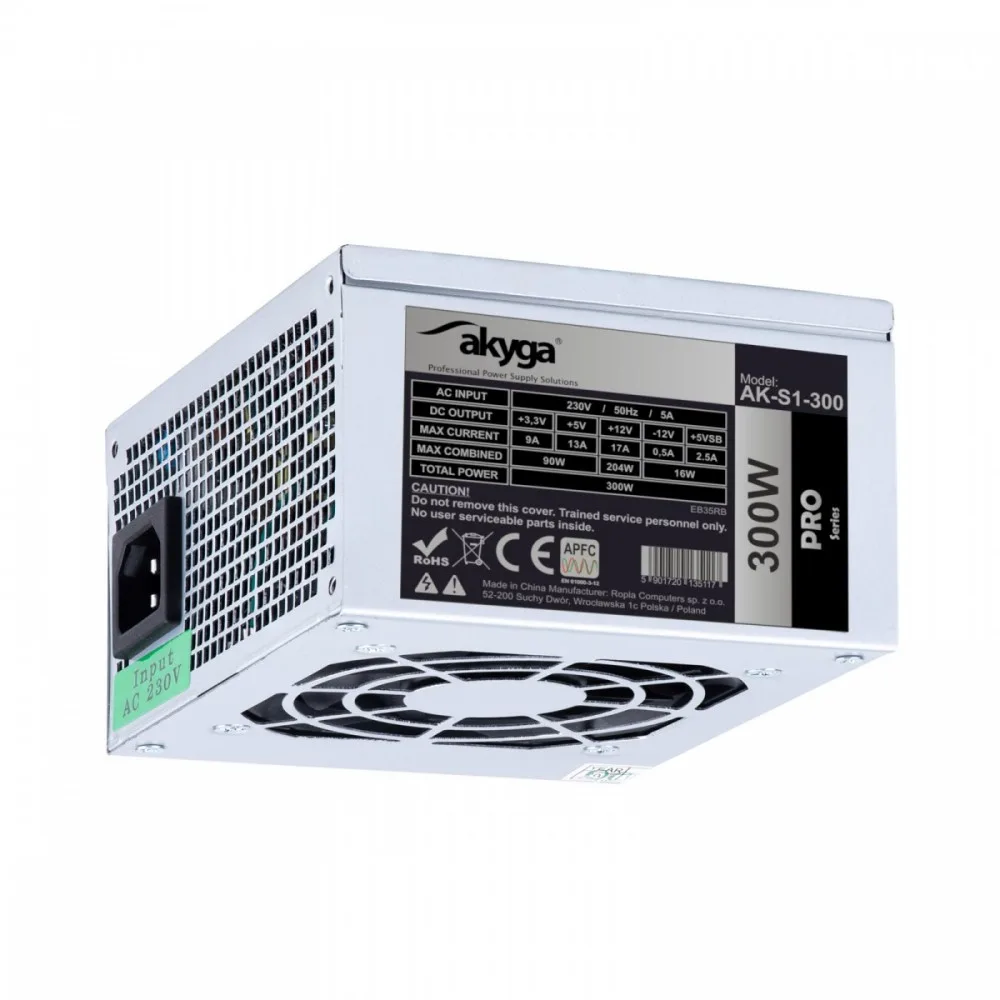

The modern SFX Akyga AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.

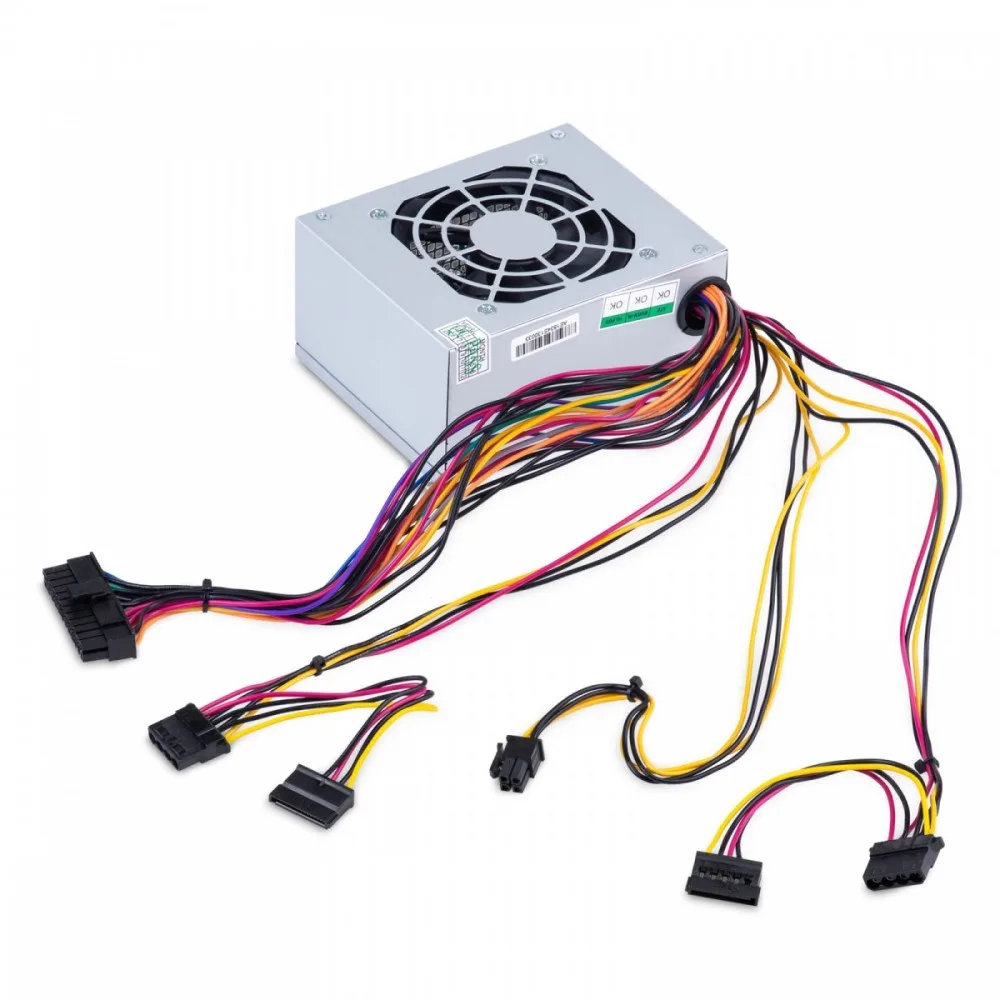

SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.

The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.

In the set with the power supply there is a power cable.

Power supply: 300 W
Fan: 8 cm
PFC: Passive
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 2
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 1
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 0
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 0
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 20 + 4 pin
Modular power supply: No
Certificates 80+: None
Filters / protection: Thermal
Filters / protection: Voltage drop
Filters / protection: Automatic fan speed control
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Circuit
Filters / protection: Current too high
Accessories included:

In the set with the power supply there is a power cable.

Dimensions:

63,5 x 125 x 100 mm

Weight: 0.8 kilogram
Other features:

• Format SFX
• Series Pro
• Supply voltage 230 V
• Power consumption< 5 A
• Efficiency> 70 %

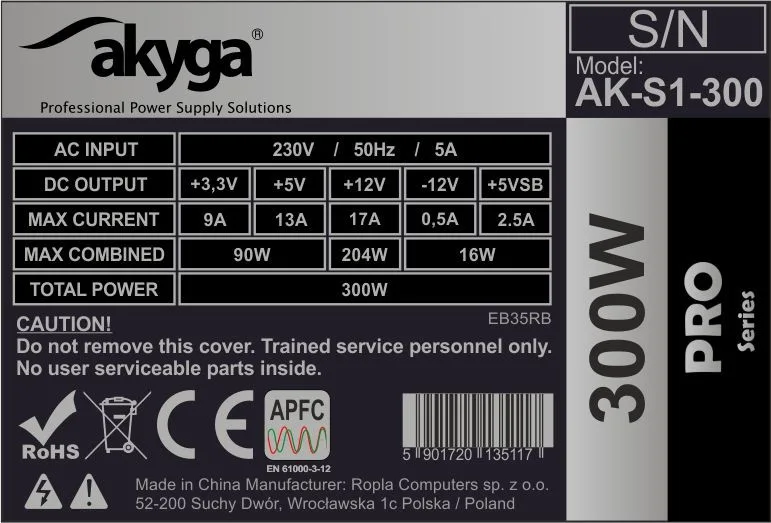

• Current on the +3.3V rail9 A
• Current on the +5V rail13 A
• Maximum load on +3.3V and +5V line90 W
• Current on the +12V rail17 A
• Maximum load on 12V line204 W
• Ground wire

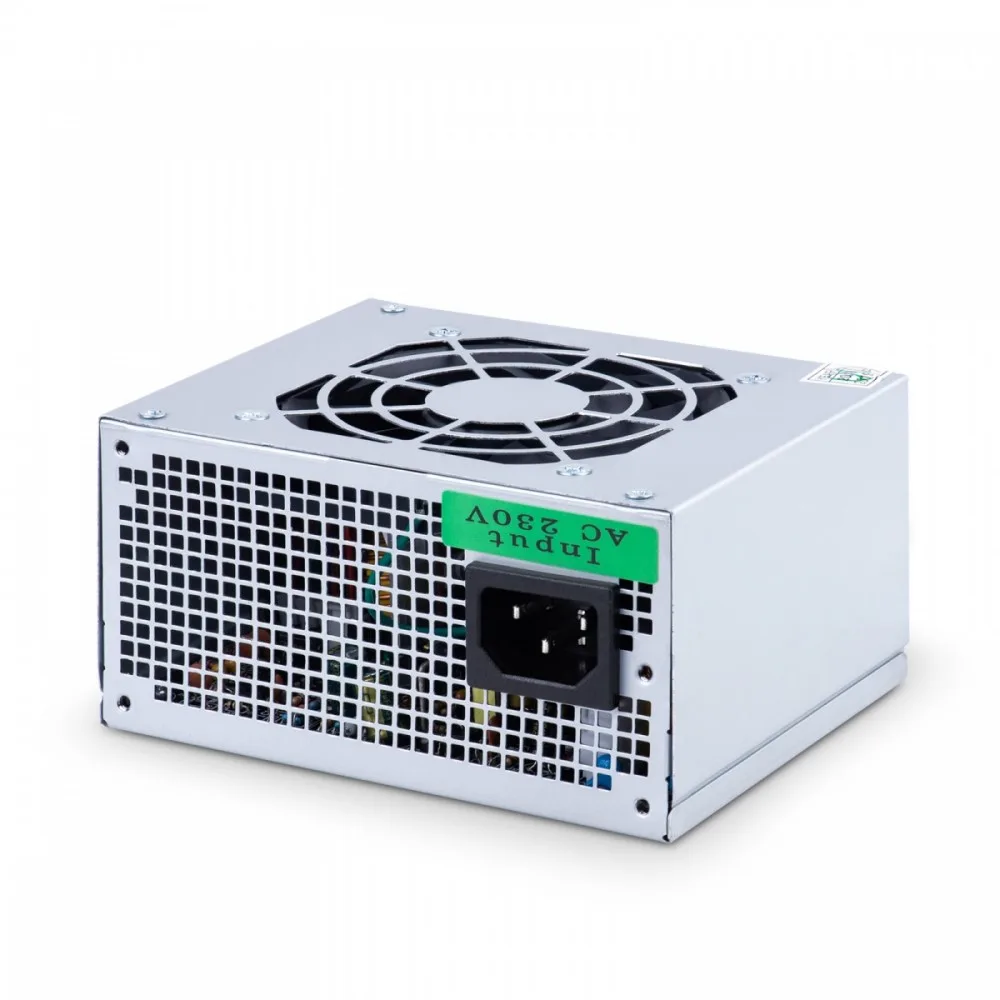

• Power supply connector IEC C14
• Fan adjustments Automatic

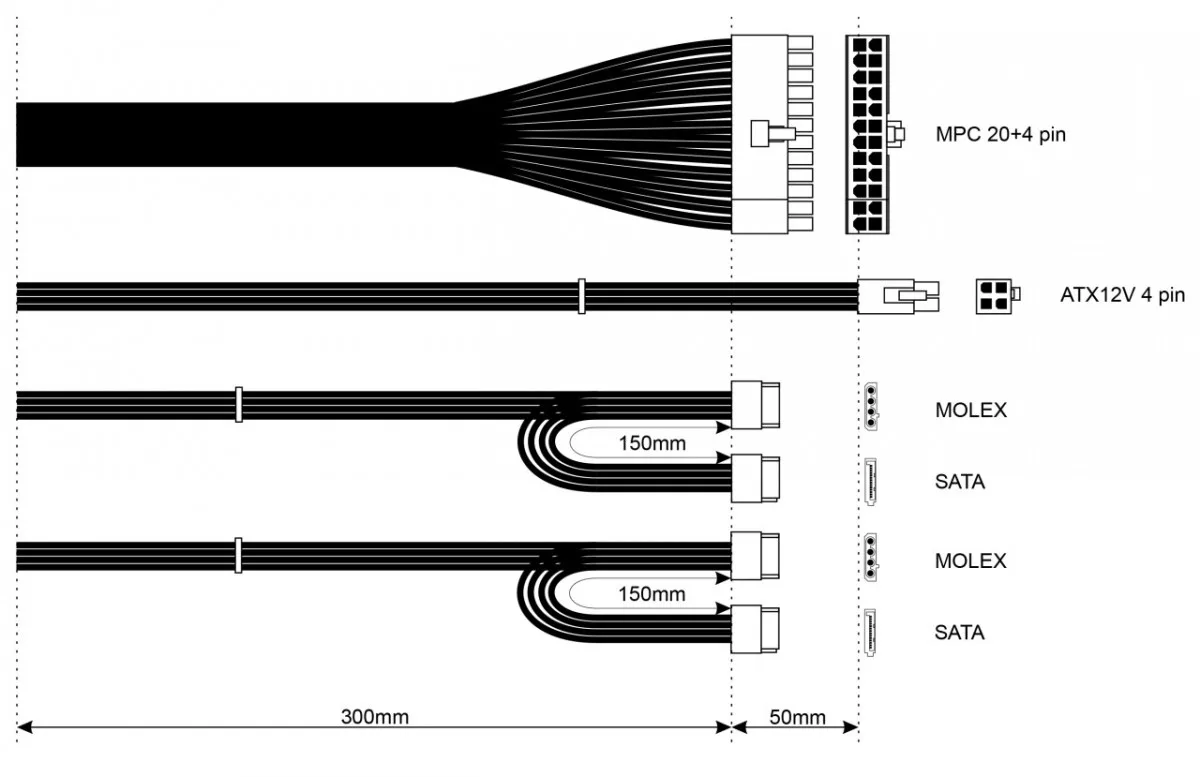

• Cable length 30 – 60 cm
• Material Galvanized steel
• Product color Black
• MTBF 100000 h
• Temperature 5 – 50 °C
• Package Foil
• Package size (L x W x H)63,5 x 125 x 150 mm
• Gross weight 0.8 kg
• CE compatibility
• RoHS compatibility
• REACH compatibility
