AKYGA захранващ блок ATX 700W B1

AKYGA захранващ блок ATX 700W B1

Description:

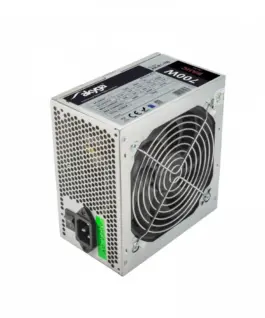

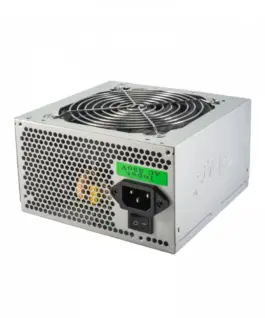

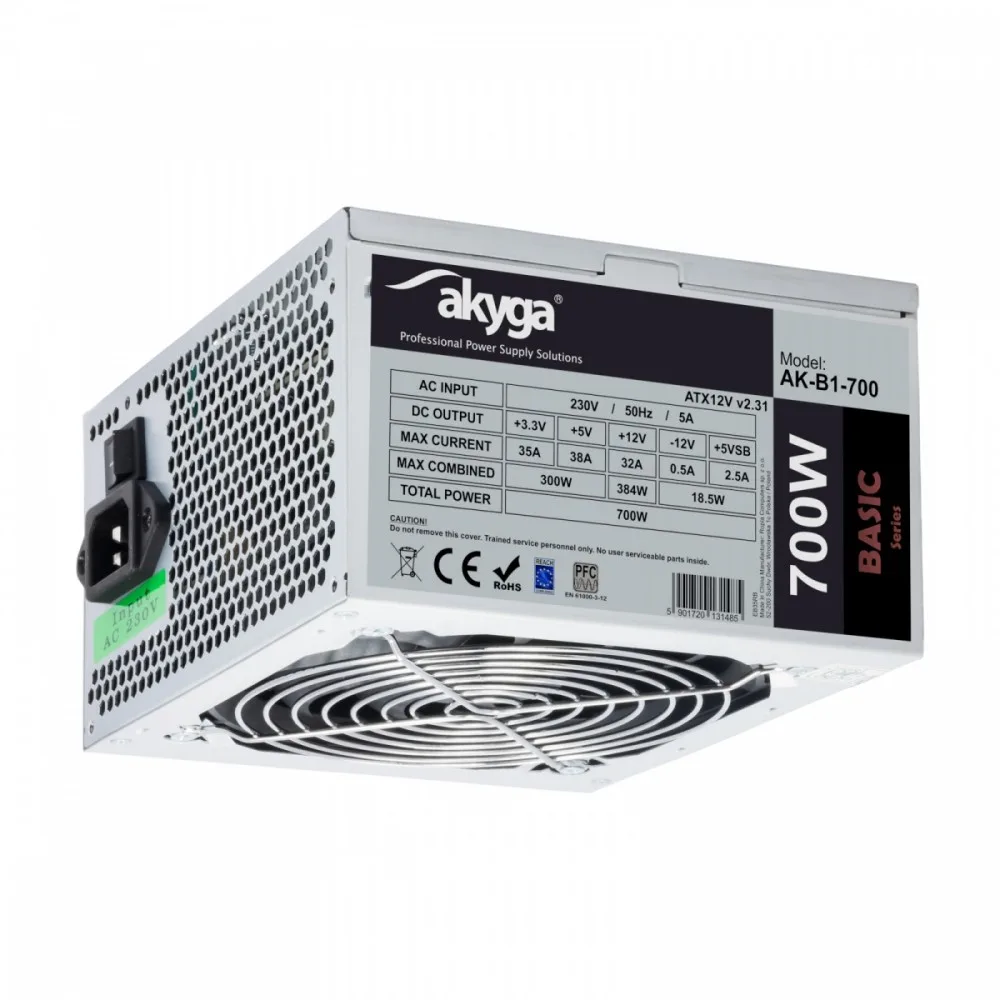

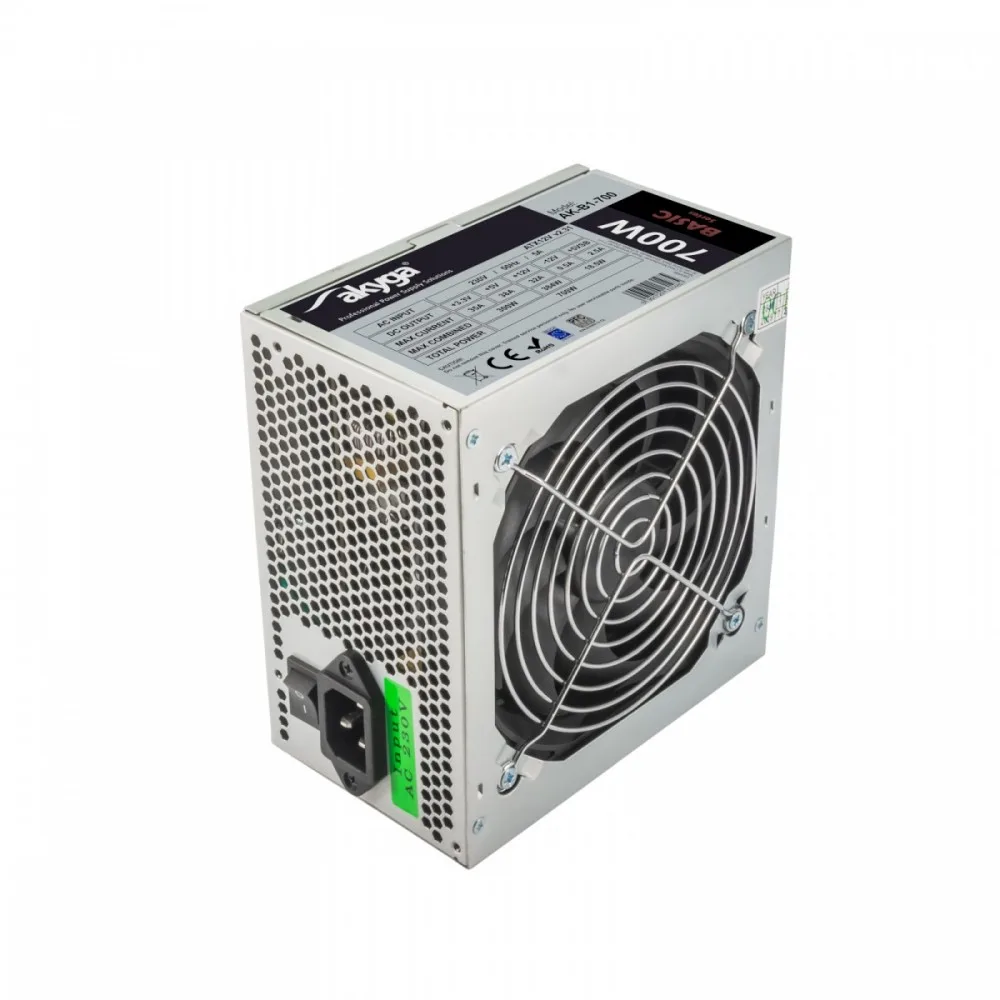

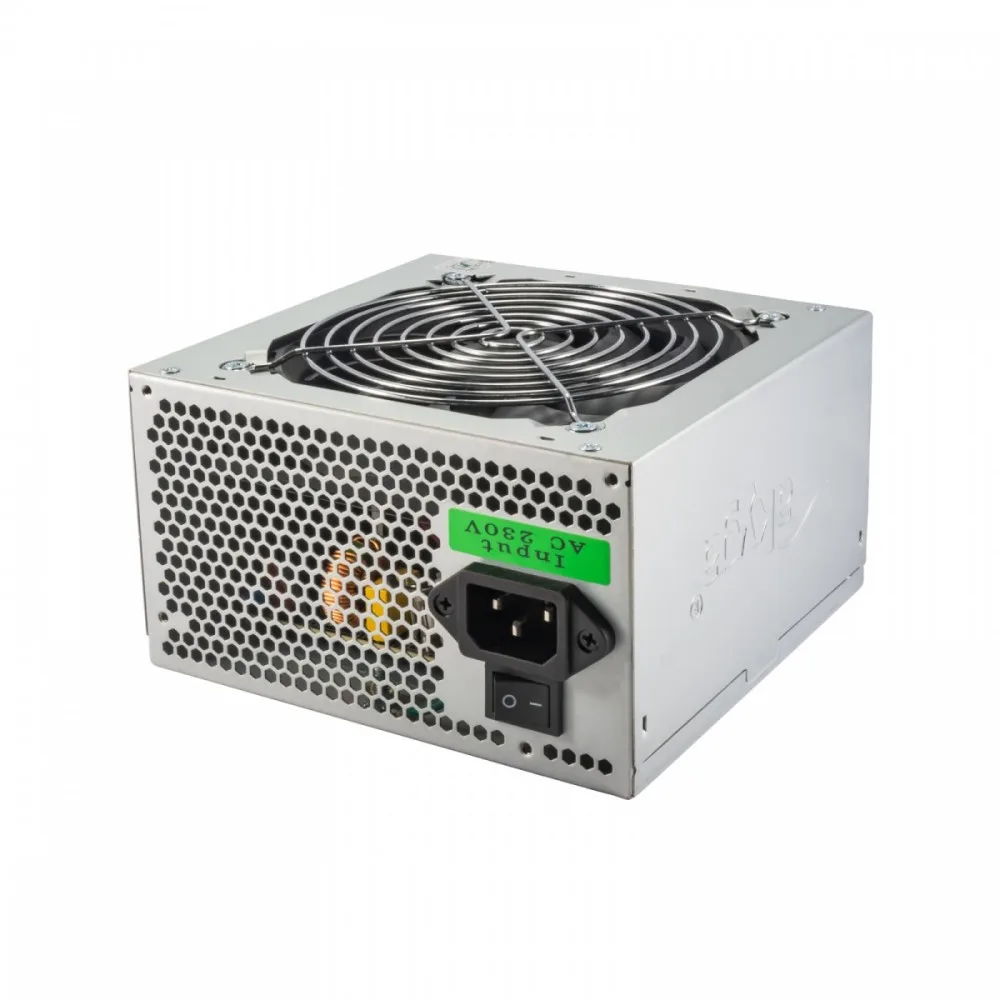

Akyga AK-B1-700 ATX power supply 700W is one of the basic power supplies in our offer dedicated to power desktop computers.

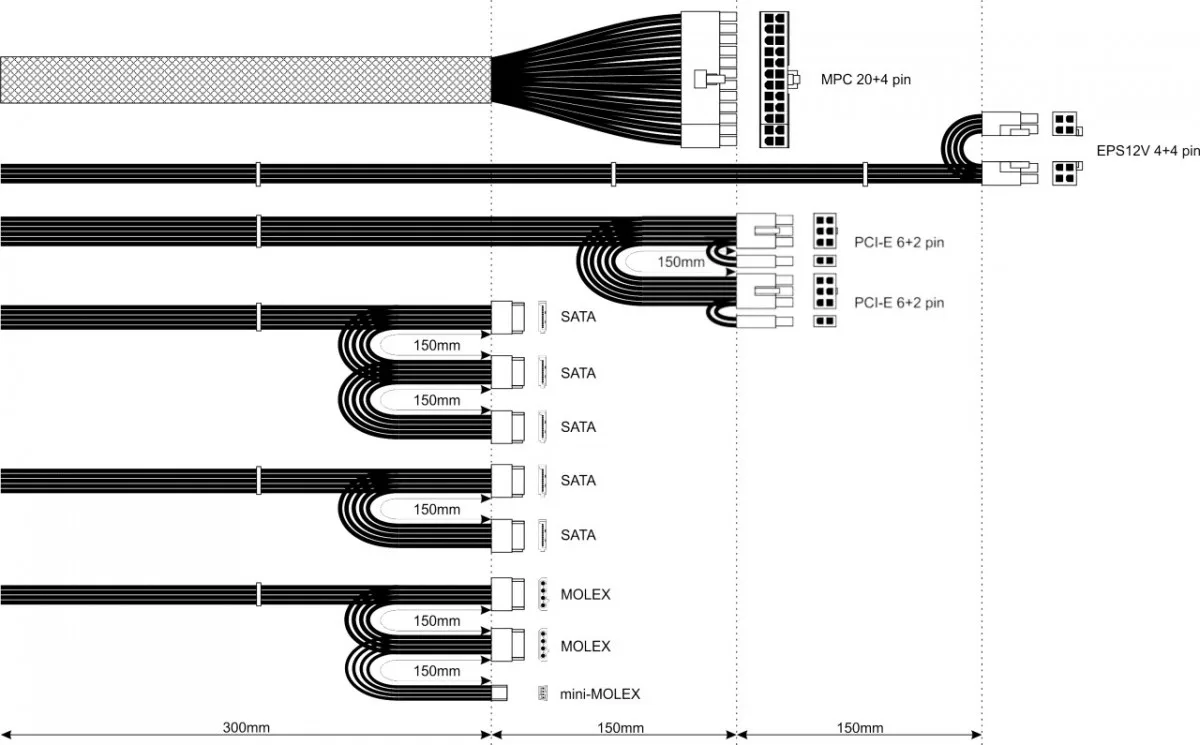

Made of high quality components, the power supply has 5x SATA connectors, 2x MOLEX connectors, mini-MOLEX connector, EPS12V 4+4pin connector,  2x PCI-E 6+2-pin connector and an universal 24-pinmotherboard connector. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Power supply: 700 W
Fan: 12 cm
PFC: Passive
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 5
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 1
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 2
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: No
Certificates 80+: None
Filters / protection: Thermal
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Circuit
Filters / protection: Current too high
Accessories included:
Dimensions:

140 x 150 x 85 mm

Weight: 1.26 kilogram
Other features:

• Format ATX 2.31
• Series Basic
• Supply voltage 230 V
• Power consumption< 5 A
• Efficiency> 70 %
• Current on the +3.3V rail35 A
• Current on the +5V rail38 A
• Maximum load on +3.3V and +5V line300 W
• Current on the +12V rail32 A
• Maximum load on 12V line384 W
• Mechanical switch
• Ground wire
• Power supply connector IEC C14
• Fan adjustments Automatic
• Cable length 30 – 60 cm
• Material Galvanized steel
• Product color Grey
• MTBF 100000 h
• Temperature 5 – 50 °C
• Package EcoBox
• Package size (L x W x H)240 x 175 x 95 mm
• Gross weight1.33 kg
• CE compatibility
• RoHS compatibility
• REACH compatibility
