AKYGA захранващ блок ATX 420W

AKYGA захранващ блок ATX 420W

Description:

Description

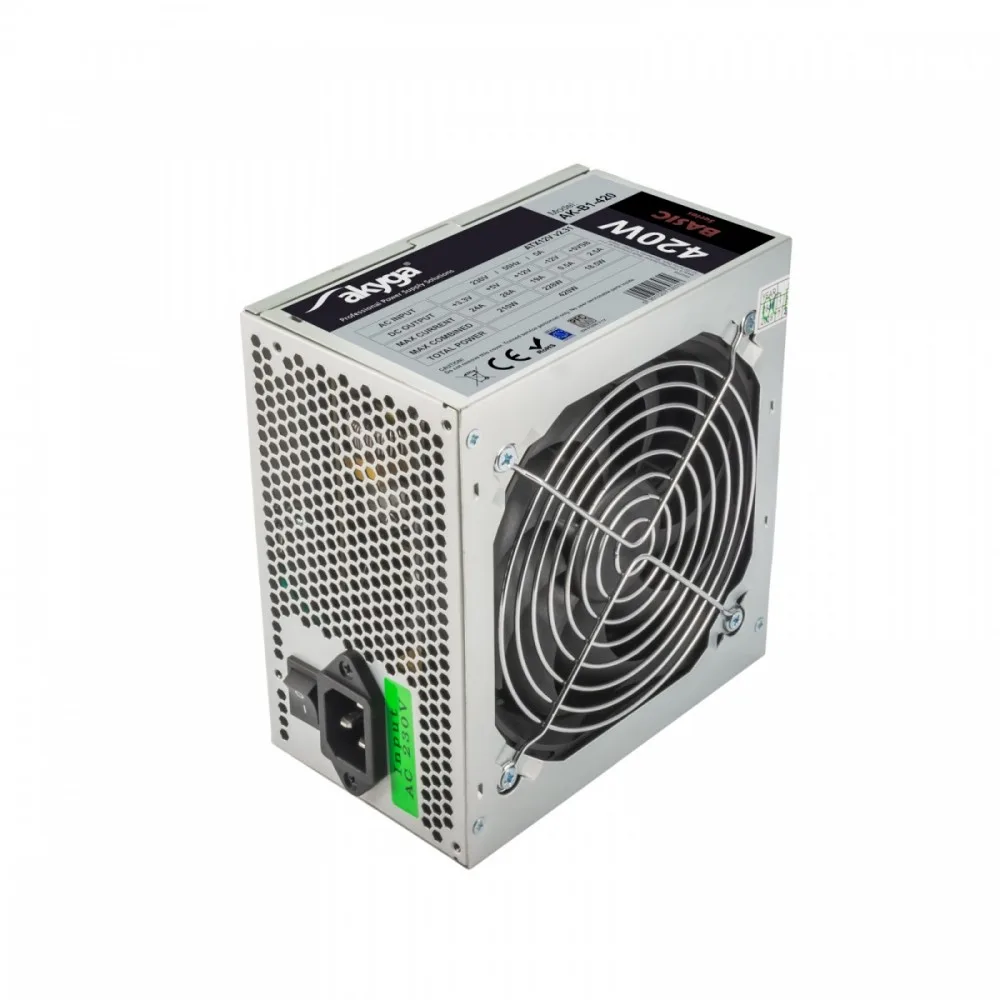

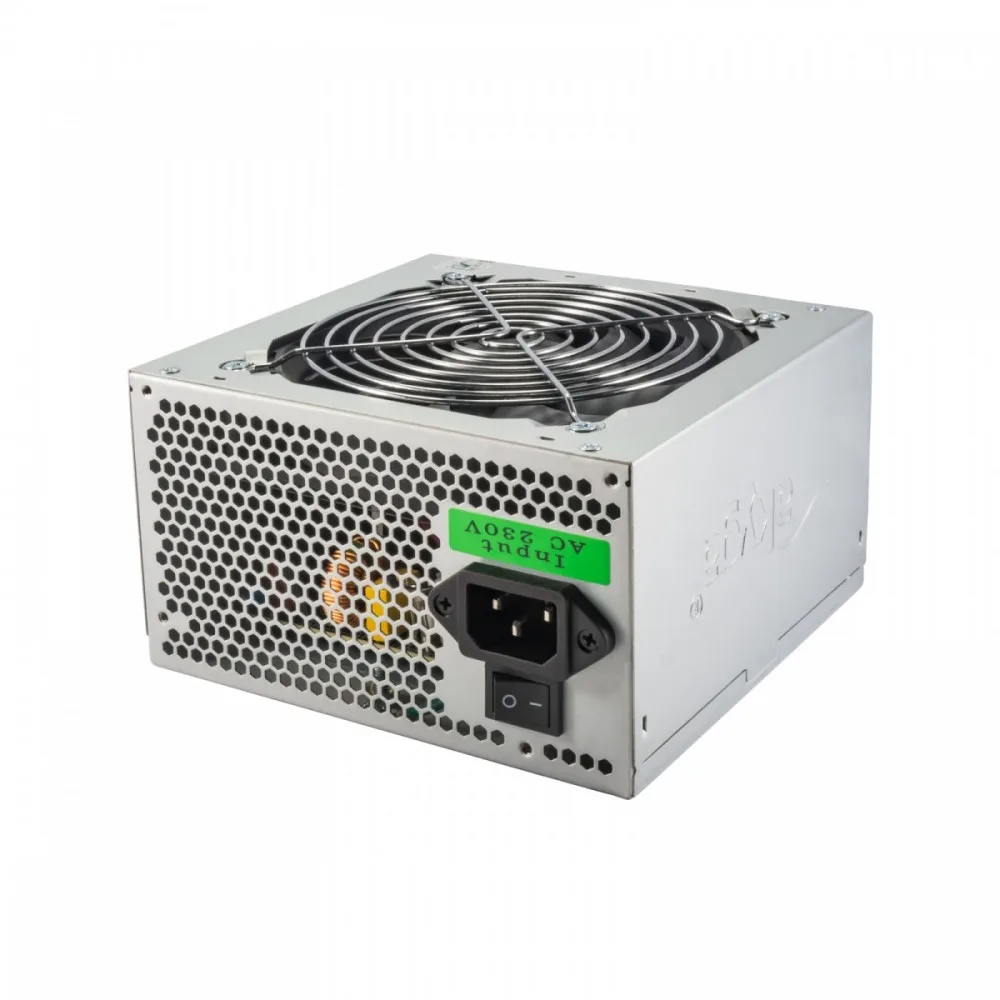

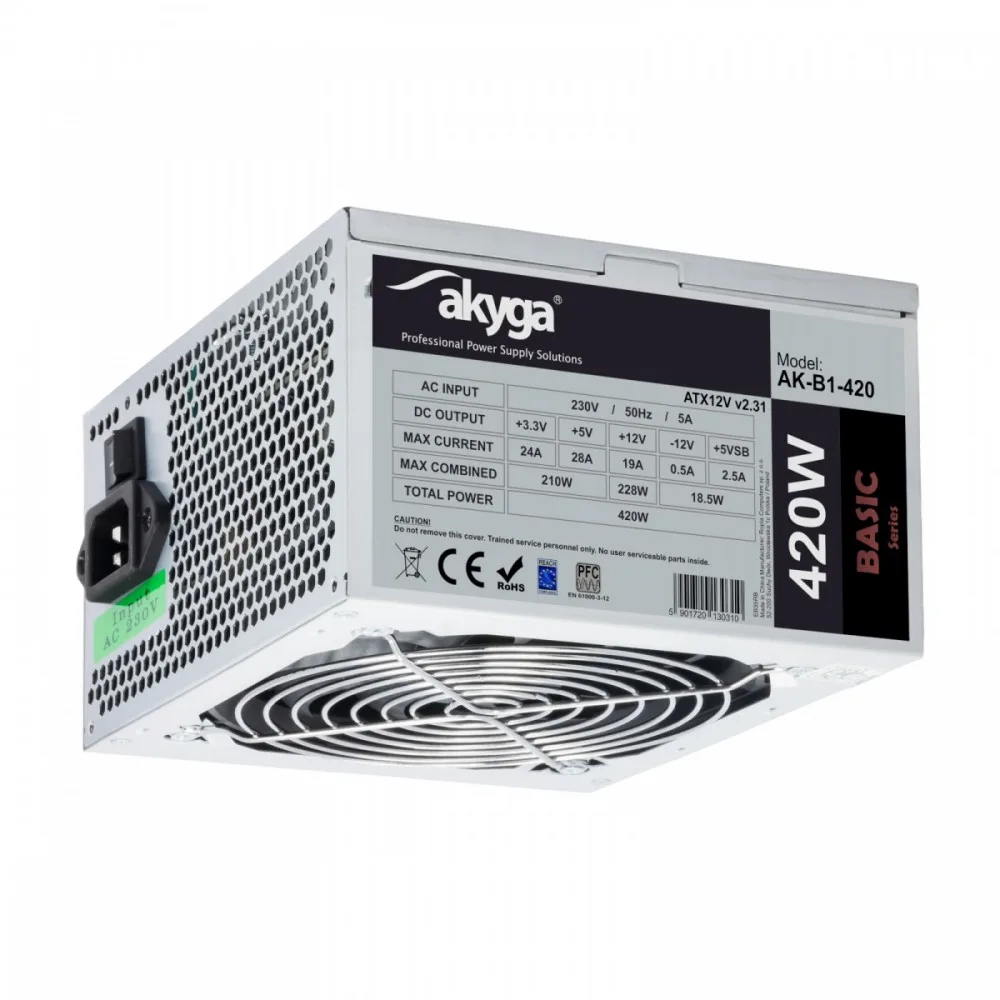

Akyga AK-B1-420 ATX power supply 420W is one of the basic power supplies in our offer dedicated to power desktop computers.

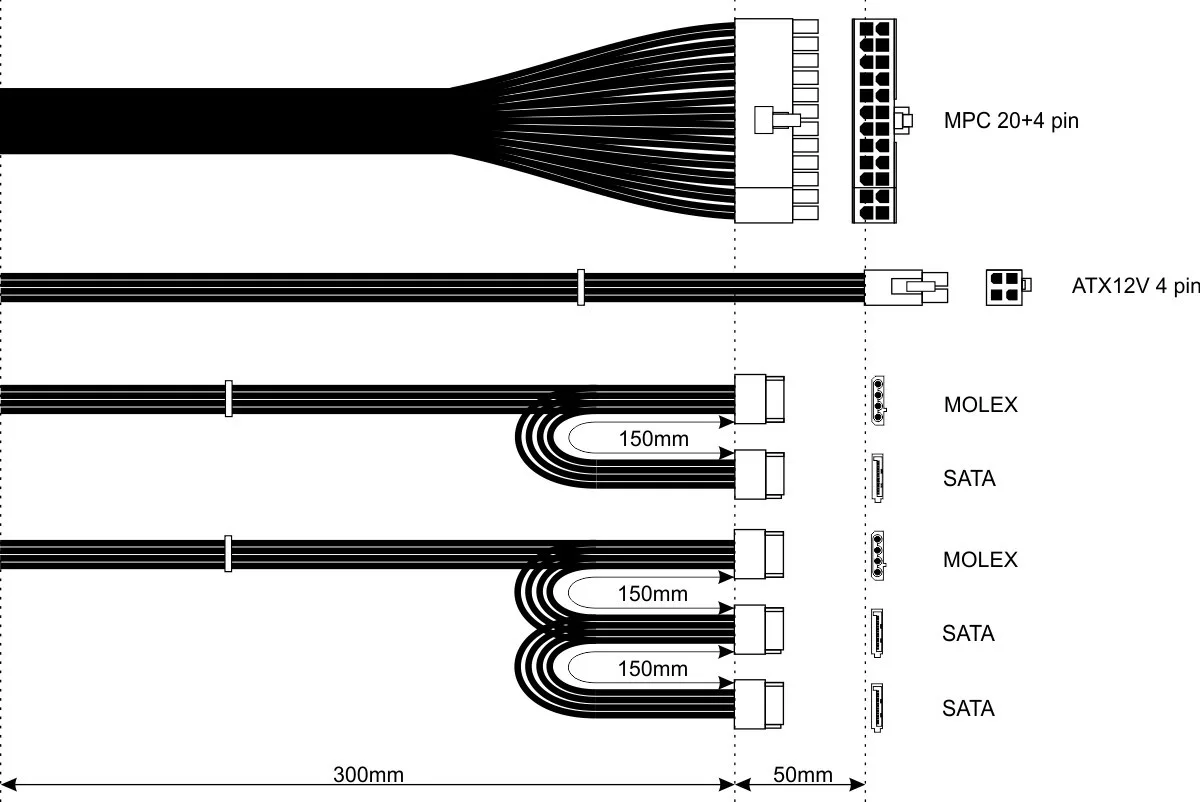

Made of high quality components, the power supply has a 3 SATA connectors, 2 MOLEX connectors, P4 4-pin connector and a universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Power supply: 420 W
Fan: 12 cm
PFC: Passive
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 3
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 1
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 0
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 0
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: No
Certificates 80+: None
Filters / protection: Protection against surges and surges
Filters / protection: Circuit
Filters / protection: Current too high
Filters / protection: Thermal
Filters / protection: Automatic fan speed control
Filters / protection: Overload
Filters / protection: Surge
Accessories included:
Dimensions:

140 x 150 x 85 mm

Weight: 1.04 kilogram
Other features:

• FormatATX 2.31
• Series Basic
• Supply voltage 230 V
• Power consumption< 5 A
• Efficiency> 70 %
• Current on the +3.3V rail 24 A
• Current on the +5V rail 28 A
• Maximum load on +3.3V and +5V line210 W
• Current on the +12V rail19 A
• Maximum load on 12V line228 W
• Mechanical switch
• Ground wire
• Power supply connector IEC C14
• Cable length 30 – 60 cm
• Material Galvanized steel
• Product color Grey
• MTBF 100000 h
• Temperature 5 – 50 °C
• Package Foil
• Package size (L x W x H)196 x 151 x 86 mm
• Gross weight 1.05 kg
• CE compatibility
• RoHS compatibility
• REACH compatibility
