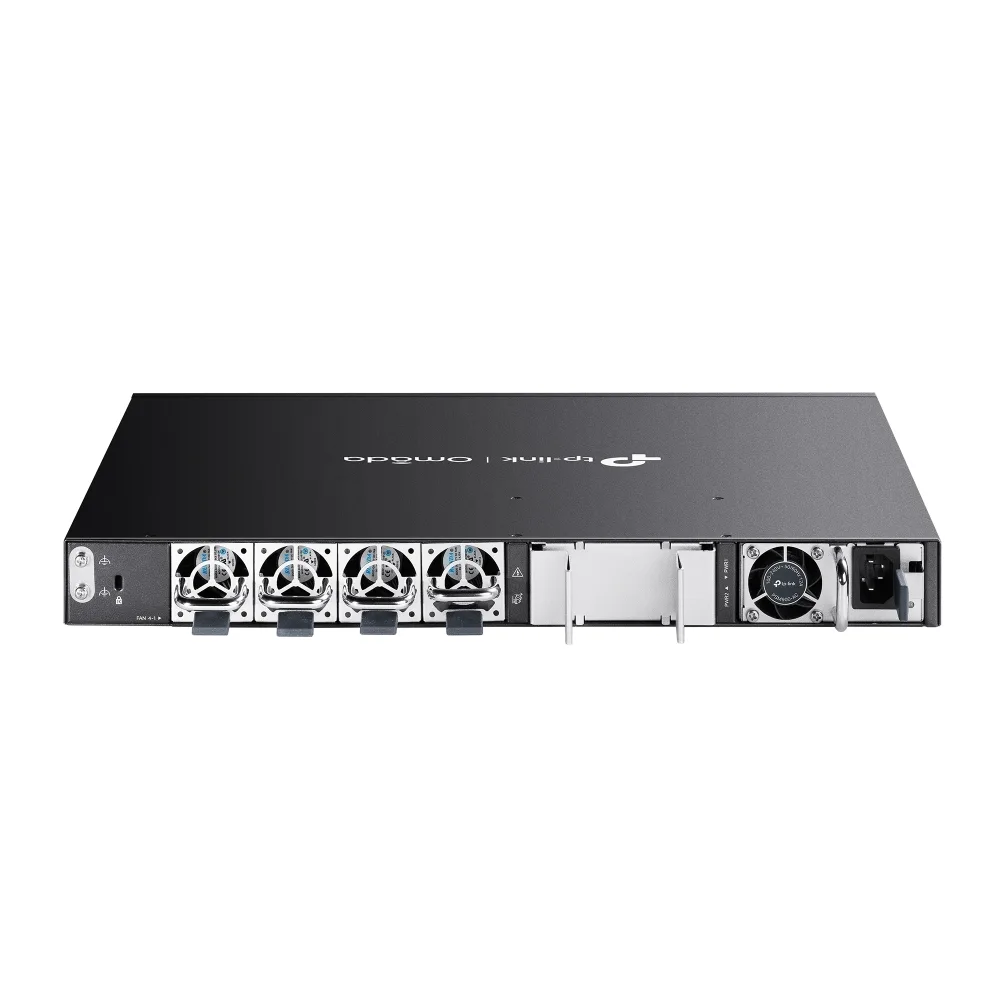

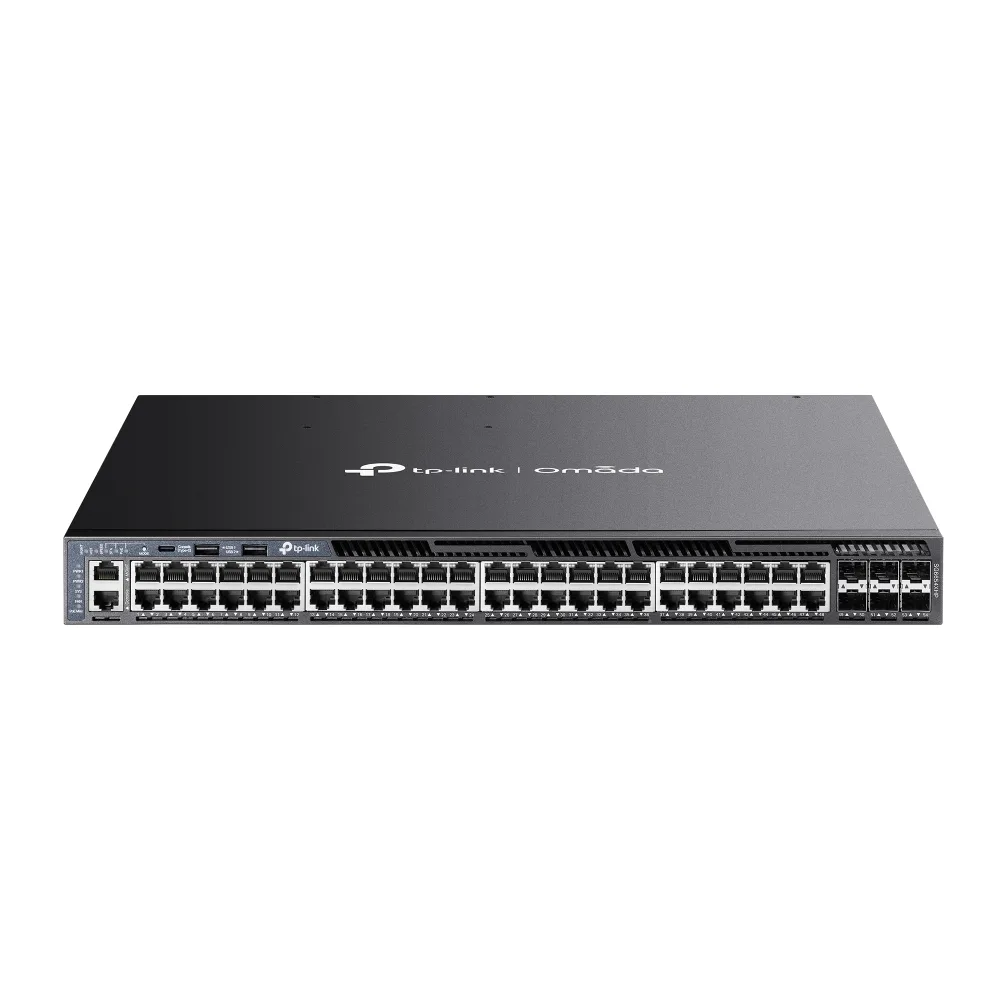

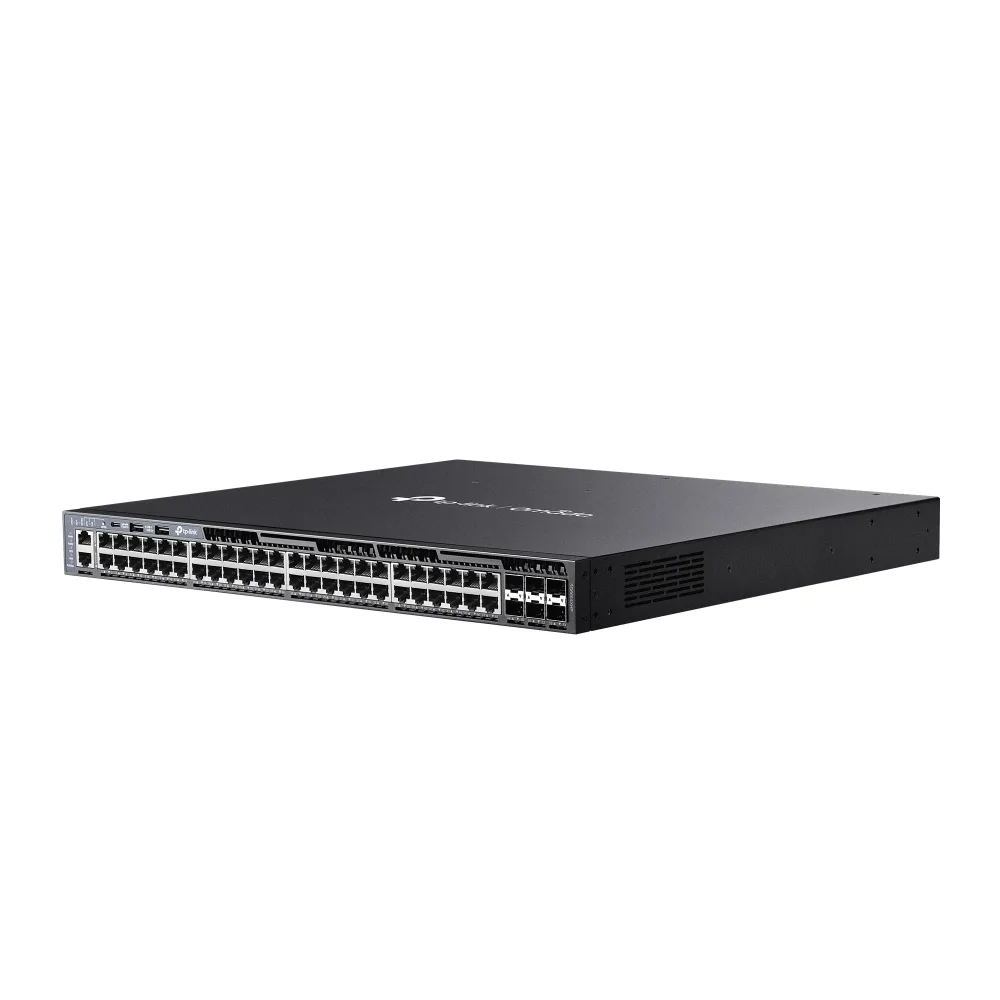

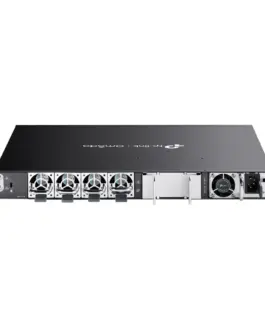

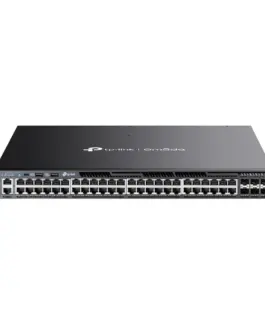

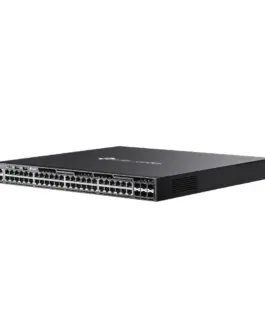

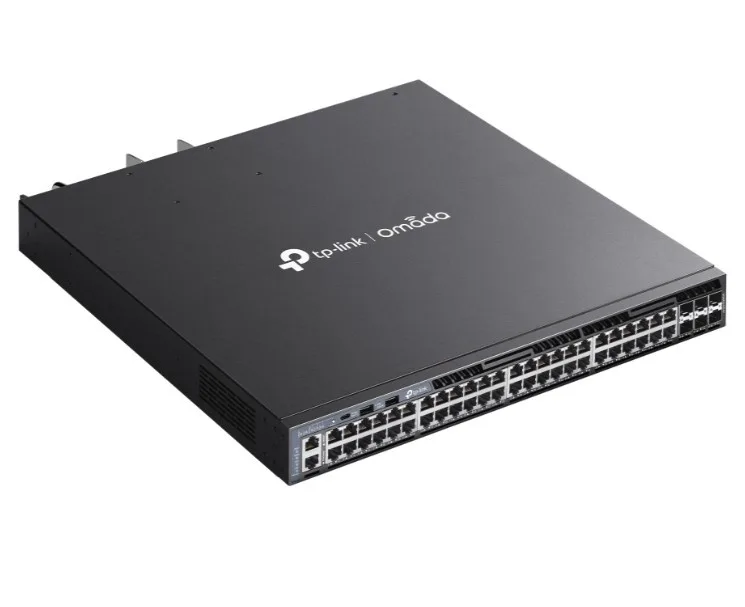

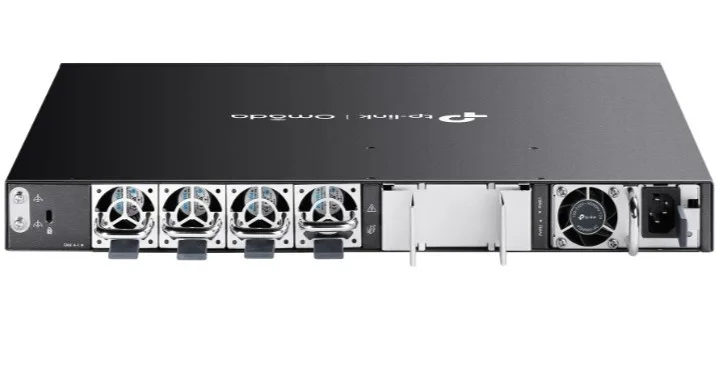

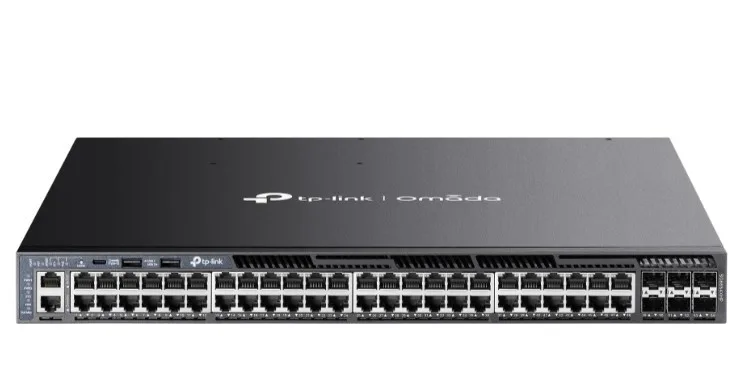

48-портов Gigabit Stackable L3 управляем комутатор с 6 10G слота TP-Link Omada SG6654XHP

48-портов Gigabit Stackable L3 управляем комутатор с 6 10G слота TP-Link Omada SG6654XHP
L3 Switching Features : VRRP: Version v2/v3, Max 64 groups
L3 Switching Features : Max 1,024, IPv6: Max 512
Интерфейс : 6× 10G SFP+ Slots
VLAN : Voice VLAN
Quality of Service : Voice VLAN
Захранване : Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Интерфейс : 1× USB Type-C Console Port
Интерфейс : 48 10/100/1000Mbps RJ45 Ports
Ethernet портове : 6× 10G SFP+ Slots
ХИТ : N
Наличност : Ограничена – под 10 бр.
Експлоатационни качества : Switching Capacity 216 Gbps per Unit
Експлоатационни качества : Packet Forwarding Rate 160.7 Mpps
L3 Switching Features : Static Routing
Работна температура : -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
L2 Switching Features : Static Link Aggregation
VLAN : Max. 4K VLAN Groups
L3 Switching Features : Max 1,000 Manual Binding Entries
L2 Switching Features : Multicast Filtering
Интерфейс : 1× RJ45 Management Port
L2 Switching Features : IGMP Snooping
Quality of Service : Class of Service
L2 Switching Features : RSPAN
L3 Switching Features : Static ARP: 512 static entries
Софтуерни функции : VLAN
Критерии за валидност на гаранцията : Гаранционна карта/Сериен номер
VLAN : VLAN VPN (QinQ): Max 256 entries
Размери дълбочина : 380 mm
L2 Switching Features : L2 Multicast Table
L3 Switching Features : IPv4: Max 256, IPv6: Max 256
Филтър Swich : 48 порта
Размери ширина : 440 mm
Ethernet портове : 1× RJ45 Management Port
Системни изисквания : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
L3 Switching Features : RIP: Version v1/v2, Max 8,190
L2 Switching Features : Multicast
L2 Switching Features : Port-based and VLAN-based Loopback Detection
Размери височина : 44 mm
L2 Switching Features : 802.3x Flow Control
VLAN : Management VLAN
Работна температура : -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
Работна температура : -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
Гаранция : 60 месеца
Quality of Service : User-Defined OUI
L3 Switching Features : IP Interfaces:
Quality of Service : Bandwidth Control
Софтуерни функции : Quality of Service
L3 Switching Features : Relayed VLAN
Експлоатационни качества : Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
L2 Switching Features : Fast Leave
L2 Switching Features : Static Multicast IP
L2 Switching Features : MAC Address Table
Brand : TP-LINK
L3 Switching Features : Host Route Table: Max 6,100 entries
Софтуерни функции : L2 and L2+ Features
Софтуерни функции : L3 Features
L2 Switching Features : Spanning Tree Protocol
L3 Switching Features : Relayed Interface
L3 Switching Features : ECMP: 256 entries, max 32 ECMP Nexthops per Destination
L3 Switching Features : Proxy ARP
L3 Switching Features : Dynamic ARP: 7,680 dynamic entries
L3 Switching Features : OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
L3 Switching Features : DHCP Server:
L2 Switching Features : PIM-DM, PIM-SM (IPv4)
Вид на монтаж : Rackmount
Интерфейс : 2× USB 2.0 Ports
Интерфейс : 1× RJ45 Console Port
L3 Switching Features : Max 64 IP Pools
L2 Switching Features : Supports 2,048 IGMP groups
Софтуерни функции : Security
Софтуерни функции : Advanced Features
Филтър Swich – PoE, SFP : SFP+ slots
L2 Switching Features : MLD Snooping
VLAN : VLAN VPN (QinQ)
Експлоатационни качества : MAC Address Table 32 K
Експлоатационни качества : Stacking Number: 8
Ethernet портове : 48× 10/100/1000 Mbps RJ45 Ports
Ethernet портове : 1× RJ45 Console Port
L2 Switching Features : Multicast VLAN Registration (MVR)
Quality of Service : Smoother Performance
Работна влажност : 10%~90% без кондензация
VLAN : MAC VLAN Entries: 200
L2 Switching Features : ERPS
VLAN : Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN : GVRP
Влажност на съхранение : 10%~90% без кондензация
L3 Switching Features : DHCP Server/Relay
Експлоатационни качества : Jumbo Frame 9 KB
Quality of Service : Action for Flows
VLAN : Private VLAN
VLAN : 802.1q Tagged VLAN
VLAN : Multicast VLAN
