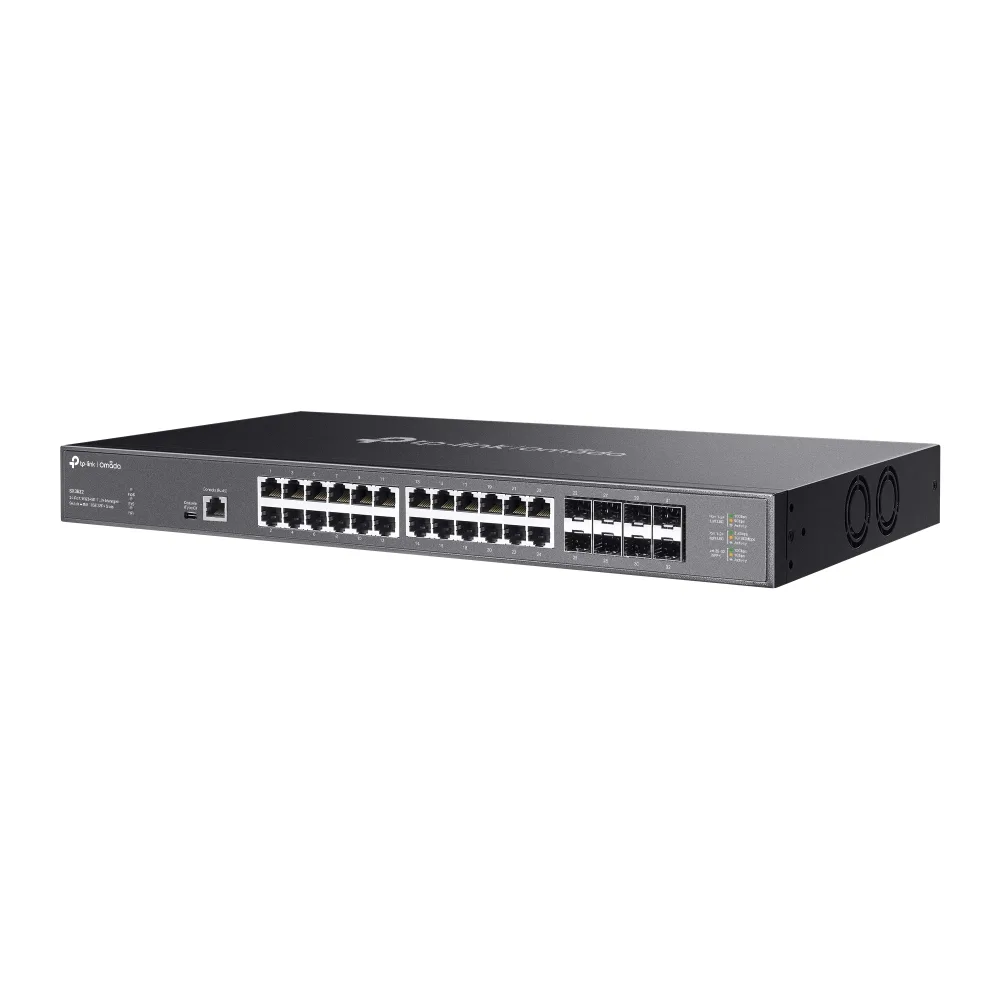

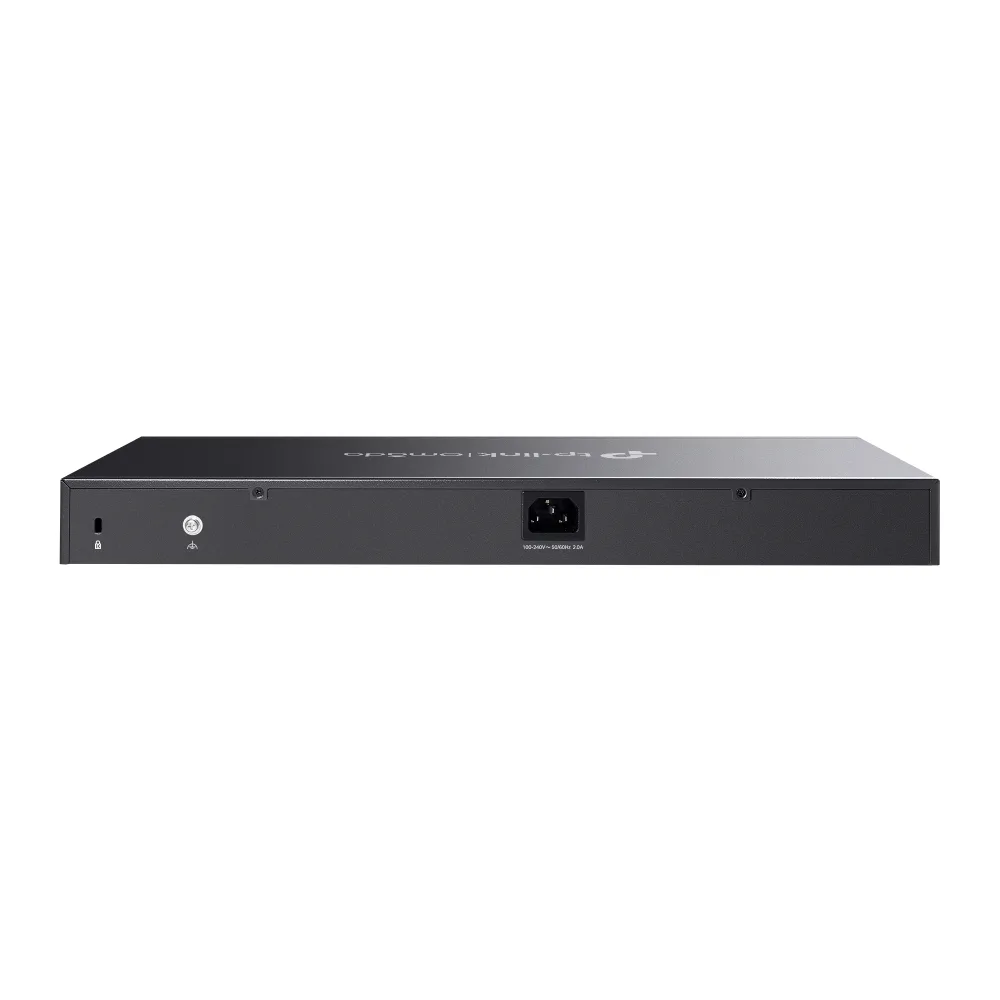

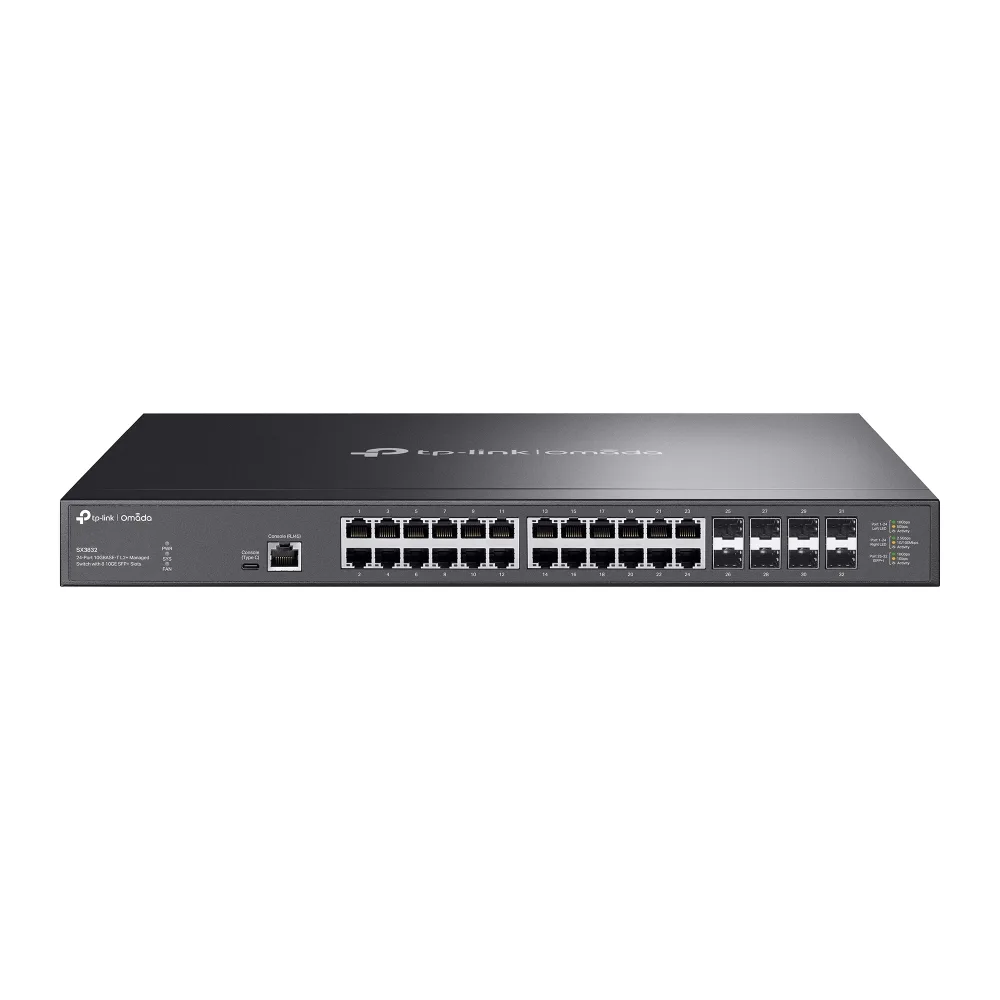

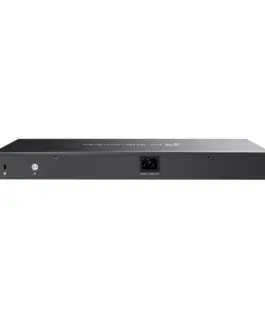

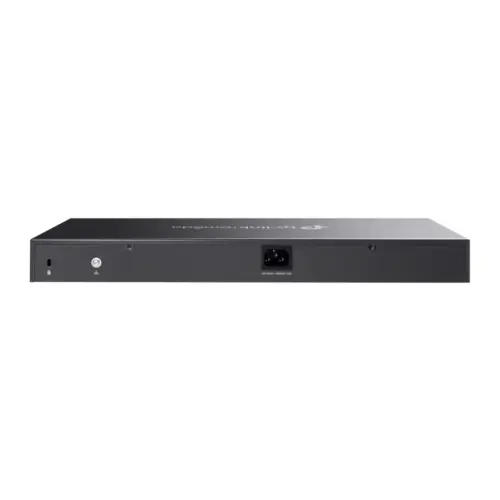

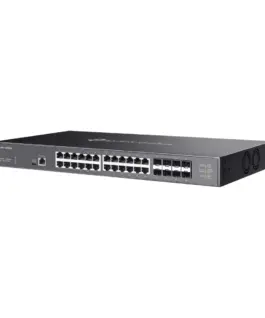

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

Версия: 1.0
Управление/Management : System Log
VPN : VLAN Replace
Quality of Service : Support 8 priority queues
Управление/Management : DHCP AutoInstall
L3 Switching Features : Static Routing
VLAN : MAC VLAN: 256 Entries
Наличност : Ограничена – под 10 бр.
IPv6 : Multicast Listener Discovery (MLD) Snooping
Експлоатационни качества : Switching Capacity 640 Gbps
L2 Switching Features : Static Link Aggregation
Сигурност : DHCP Snooping
Управление/Management : Dual Image, Dual Configuration
Филтър Swich : 24 порта
Управление/Management : Web UI
Работна температура : 0℃~45℃ (32–113 ℉)
L2 Switching Features : IGMP Authentication
Сигурност : IPv4 Source Guard
L2 Switching Features : Proxy ARP
Гаранция : 60 месеца
Ethernet портове : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Промо : N
L2 Switching Features : CPU Mirroring
Управление/Management : DHCP/BOOTP Client
Quality of Service : Action for Flows
IPv6 Applications : Telnet(v6)
VLAN : Voice VLAN
IPv6 Applications : Tracert6
Quality of Service : Smoother Performance
IPv6 : IPv6 Dual IPv4/IPv6
Филтър Swich скорост : Switching capacity: 320 Gbps
IPv6 Applications : IPv6 TFTP
IPv6 : TCPv6/UDPv6
Интерфейс : 8× 1/10G SFP+ Slots
Софтуерни функции : IEEE 802.3ad: Link Aggregation
Интерфейс : 1× USB Type C Console Port
Тегло, кг. : 4.5 кг
VLAN : Max. 4K VLAN Groups
VLAN : 802.1q Tagged VLAN
Тип : Omada
IPv6 Applications : DHCPv6 Client
Филтър Swich скорост : 10 Gb SFP+ modules
Сертификати : CE, FCC, RoHS
Софтуерни функции : Password Recovery*
IPv6 : IPv6 neighbor discovery (ND)
Управление/Management : EEE
L2 Switching Features : Port Mirroring
Работна влажност : 10%~90% без кондензация
Сигурност : ARP Inspection
L3 Switching Features : DHCP L2 Relay
L3 Switching Features : DHCP Server/Relay
Validity criteria warranty card : Гаранционна карта/Сериен номер
Съвместимост с мрежови стандарти : IEEE 802.3x Flow Control
Размери дълбочина : 220 mm
L2 Switching Features : Cable Diagnostics
Сигурност : Port isolation
IPv6 Applications : IPv6 Interface*
Софтуерни функции : Omada Software Controller
L2 Switching Features : MVR
Ethernet портове : 8× 1/10G SFP+ Slots
Сигурност : Static/Dynamic Port Security
L2 Switching Features : 802.3x Flow Control
Експлоатационни качества : Packet Buffer Memory 24 Mbit
IPv6 Applications : IPv6 SSL
Софтуерни функции : Omada App
Сигурност : Broadcast/Multicast/Unknown-unicast Storm Control
Quality of Service : Rate Limit
Управление/Management : SNTP
IPv6 Applications : Ping6
IPv6 : IPv6 ACL
Сигурност : IP-MAC-Port Binding
Управление/Management : SDM Template
Управление/Management : Web-based GUI
Размери ширина : 440 mm
Системни изисквания : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Color : Черен
Софтуерни функции : IEEE 802.3x: Flow Control
L3 Switching Features : Proxy ARP
Сигурност : Secure web management through HTTPS with SSLv3/TLS1.0
L2 Switching Features : Multicast Filtering: 256 profiles and 16 entries per profile
VPN : VLAN Mapping
Температура на съхранение : -40℃~70℃ (-40℉~158℉)
Филтър Swich скорост : 10G (100Mbps/1G/2.5G/5G/10G) RJ45
L2 Switching Features : 128 IP Interfaces: Support IPv4/IPv6 Interface
Софтуерни функции : Omada Hardware Controller (OC300)
Охлаждане : Активно
Brand : TP-LINK
L2 Switching Features : 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Съвместимост с мрежови стандарти : IEEE 802.1w
L2 Switching Features : MLD v1/v2 Snooping
In stock : LIMITED STOCK
Филтър Swich – PoE, SFP : SFP+ slots
Софтуерни функции : CPU Monitoring
VLAN : VLAN VPN (QinQ)
L3 Switching Features : 16 IPv4/IPv6 Interfaces
Сигурност : IP/Port/MAC based access control
Quality of Service : Bandwidth Control
L2 Switching Features : 510 ARP Entries
Сигурност : AAA
L3 Switching Features : Gratuitous ARP
VLAN : VLAN Group
Сигурност : Access Control List • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL
Софтуерни функции : Port Mirroring
Сигурност : IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
Тип : Управляем
Софтуерни функции : Omada Hardware Controller (OC200)
L2 Switching Features : Link Aggregation
Управление/Management : Command Line Interface (CLI) through telnet
Интерфейс : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Съвместимост с мрежови стандарти : IEEE 802.1p
Софтуерни функции : Omada Cloud-Based Controlle
IPv6 Applications : IPv6 SSH
IPv6 Applications : IPv6 ACL*
Сигурност : DoS Defence
Вид на монтаж : Rackmount
Интерфейс : 1× RJ45 Console Port
Сигурност : Secure Command Line Interface (CLI) management with SSHv1/SSHv2
Съвместимост с мрежови стандарти : IEEE 802.3ad
Размери височина : 44 mm
Съвместимост с мрежови стандарти : IEEE 802.1x
Софтуерни функции : IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
Управление/Management : 802.1ab LLDP/LLDP-MED
VLAN : GARP/GVRP
L2 Switching Features : IGMP Snooping V1/V2/V3
Quality of Service : Queue scheduling: SP, WRR, SP+WRR
IPv6 : Internet Control Message Protocol (ICMP) version 6
Управление/Management : RMON (1,2,3,9 groups)
Експлоатационни качества : MAC Address Table 32 K
IPv6 : Static IPv6 Routing
Съвместимост с мрежови стандарти : IEEE 802.1d
Управление/Management : SNMP Trap/Inform
L2 Switching Features : Static Routing
Quality of Service : Support 802.1p CoS/DSCP priority
Захранване : 100-240 V AC~50/60 Hz
Приложение : Rackmount
Ethernet портове : 1× RJ45 Console Port
L3 Switching Features : Static ARP
Quality of Service : Cable Diagnostics
VLAN : Private VLAN
VLAN : Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Влажност на съхранение : 5%~90% без кондензация
Експлоатационни качества : Packet Forwarding Rate 240 Mpps
IPv6 Applications : Http/Https
IPv6 Applications : IPv6 SNMP
VLAN : Selective QinQ
L2 Switching Features : IGMP Snooping Querier
IPv6 : Path maximum transmission unit (MTU) discovery
