PowerWalker UPS Rack VFI 20000 ICRE IOT 3/3 On-line 20KVA terminal RJ-45 USB-B RS-232 3/3 without battery

PowerWalker UPS Rack VFI 20000 ICRE IOT 3/3 On-line 20KVA terminal RJ-45 USB-B RS-232 3/3 without battery

Description:

VFI 20000 ICRE IOT 3/3 On-line Rack UPS 20KVA terminal RJ-45 USB-B RS-232 3/3 without battery

The PowerWalker VFI 1-20K ICT/ICR IoT series is the next generation of IoT UPSs, offering the intuitive WinPower View application for remote monitoring via the cloud. The UPS can be quickly configured and is easy to maintain. It provides the ability to review operating status and immediately troubleshoot issues regardless of time or location.

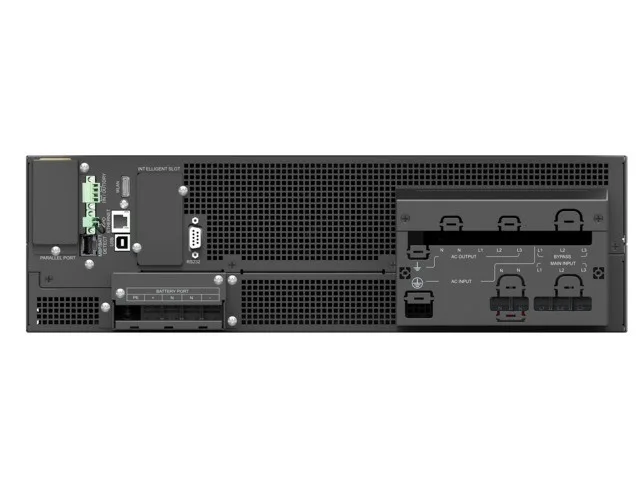

Data is sent to the cloud via an Ethernet (RJ-45) port or wireless adapter, all ICT/ICR IoT models have an Ethernet (RJ-45) port on the rear panel. Cloud-based monitoring increases the availability and quality of traditional monitoring while enabling cost reduction, scalability and trend analysis.

This UPS series uses double-conversion technology and features the highest PF=1.0 power factor, ensuring stable operation of critical equipment and delivering uninterrupted output power to sensitive loads. Many additional accessories, such as external battery packs, communication cards and WLAN adapter, enhance the functionality of the UPSs. The series is available as: Online 1/1, Online 3/1 and Online 3/3.

Stay up to date with your UPS anytime and anywhere!

Note: This product does not contain batteries! To make this UPS work as intended, you need to purchase 2 Battery Pack model 10124056 separately!

Apparent power: 20 kVA
Active power: 20000 Watt
UPS Architecture: on-line
The shape of the output voltage: Full sine wave
Number of phases input: 3 (400V)
No. of batteries: 0
Hold-up time (maks): 10 millisecond
Transfer time (max): 10 millisecond
Chassis type: Rack
Filters / protection: Surge
Special functions:
Software:

WinPower

Input power ports: Terminal
Output power ports: 1 x Terminal
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x RJ-45 LAN
Environment requirements:

• Recommended ambient temperature: 0 – 40 °C
• Recommended ambient humidity: 0 – 95 %

Accessories included:
Color: Black
Dimensions:

129 x 438 x 559 mm

Other features:

• Device efficiency: 96 %
• Input frequency range: 40 – 70 Hz
• Input frequency adjustment: +/- 0.1 Hz
• Output voltage range: 220 – 415 V
• Output voltage adjustment: +/- 1 %
• Operation indication: LCD
• Noise level: 55 dB
• Size: 19″
