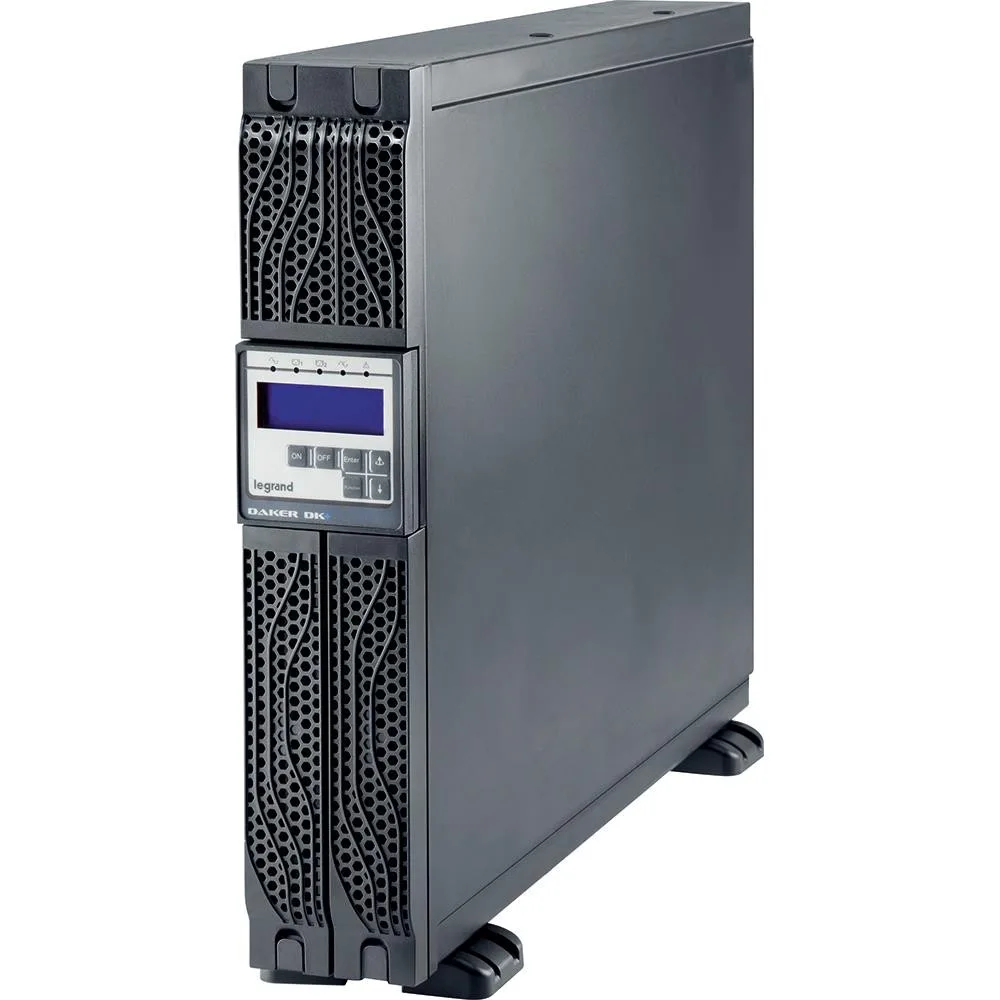

Legrand UPS DAKER DK+ 2000VA 310171

Legrand UPS DAKER DK+ 2000VA 310171

Backup time (100% load): 5 Minute
Description:

Online with double conversion VFI-SS-111
Sinusoidal voltage waveform
Power factor PF = 0.9
Conventional UPS in RACK /TOWER 2U version
LCD panel
Graphic interface for the user
EPO
USB-RS232
6x IEC C13 output sockets
IEC C14 input socket
Automatic and manual bypass (variant)
High efficiency (up to 91%)

optional:
WEB SNMP
RACK KIT
EXTERNAL BATTERY PANELS

Apparent power: 2000 VA
Active power: 1800 Watt
UPS Architecture: on-line double conversion
UPS Architecture: on-line
Number of phases input: 1 (230V)
No. of batteries: 6
Voltage: 12 Volt
Battery capacity: 7.2 Ah
Special functions:

EPO
Output sockets: 6x IEC C13

Software:

YES – for downloading from the site: http://ups.legrand.pl/software/

I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:

Working temperature 0-40°C
Degree of protection IP 21
Working humidity 20-80%
Sound intensity at a distance of 1m

Accessories included:
Color: Black
Color: Gray
Dimensions:

600 x 88(2U) x 40 mm

Weight: 29.5 kilogram
Other features:

Certifications: EN 62040-1, EN 62040-2, EN 62040-3

DAKER DK+ is managed by a microprocessor and is able to manage alarms and other functions described below via the control panel and LCD display:
Normal work
The output frequency is not synchronized with the input
Work on the battery
Work in Bypass mode
Damaged power module
Overload
General anomaly
Neutral connection with the ground
End of autonomy

Chassis type: Rack
Chassis type: Tower
Designation:
