Description:

Dizzying speed

WiFi 6E, the new 6GHz band, presents a solution to meet the need for higher bandwidth networks. The BandFlex radio design of the NWA220AX-6E allows the access point to support either the 5GHz or 6GHz band depending on configuration, making it the most cost-effective choice to match existing 5GHz coverage as well as future 6Ghz usage.

The NWA220AX-6E is an excellent choice for:

• High-density environments such as offices, campuses, shopping malls, convention centres or transport hubs to reduce WiFi congestion, reduce congestion and increase user experience.
• New technologies such as VR/AR, 8K video streaming or online gaming that promise ultra-fast speeds without lag.

The device incorporates all the benefits of WiFi 6 capabilities, such as OFDMA, MU-MIMO, BSS Coloring technologies, and then moves them to the all-new interference-free 6GHz to deliver ultra-fast speeds and low-latency connections.

Flexible BandFlex radio design

The Zyxel NWA220AX-6E is a dual-band access point with a BandFlex radio design that can support either 5GHz or 6GHz depending on configuration. It is the most cost-effective choice to match existing 5 GHz coverage as well as future 6 GHz usage.

6E efficiency boost

The high-gain 4×4 design transmitting from 6GHz helps increase the efficiency of beamforming and receive MIMO to extend coverage and maximise the performance of the new band.

Manage it your way

The NWA220AX-6E access point with NebulaFlex has flexible management options. In addition to management via the local interface, you can also use Nebula’s cloud-based management interface.

Network architecture: GigabitEthernet

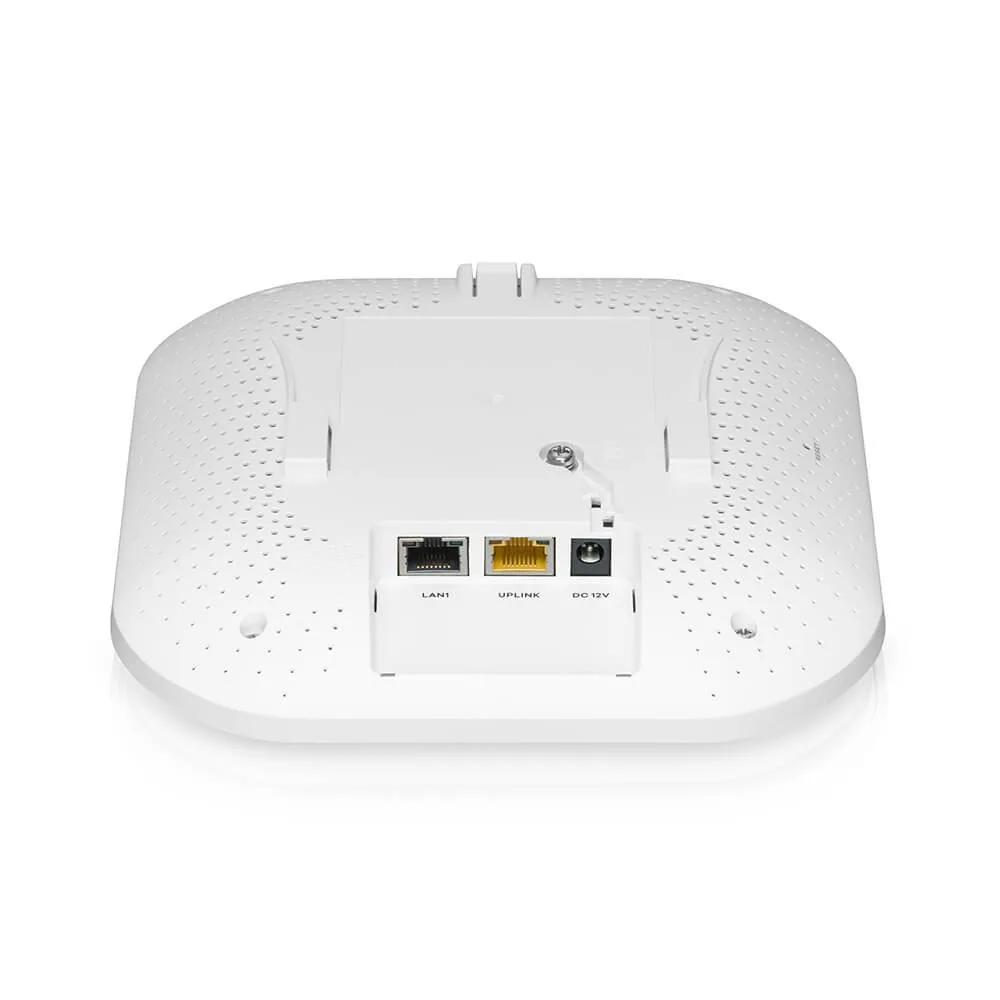

I/O ports: 1 x 10/100/1000/2500 RJ-45 port PoE
I/O ports: 1 x 10/100/1000 Mbit/s
Operating frequency: 6 GHz
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Standards: 802.11ac
Standards: 802.11a
Standards: 802.11b
Standards: 802.11g
Standards: 802.11n
Standards: 802.11ax
Security:

Encryption

• WEP
• WPA
• WPA2-PSK
• WPA3

Authentication

• WPA
• WPA2
• WPA3-Corporate
• EAP
• IEEE 802.1X
• RADIUS authentication

Access management

• L2 isolation
• MAC address filtering
• Detection of rogue access points

Management, monitoring, configuration:

Operation mode

• Nebula cloud management
• Standalone

ZON tool

• Discovering Zyxel switches, access points and gateways

Centralised and batch configurations

• IP configuration
• IP renewal
• Rebooting a device
• Locating the device
• Access to the web-based graphical interface
• Software update
• Password configuration

Web UI/CLI

SNMP

Special functions:

WLAN function:

• Bandwidth control
• WDS/Grid*2
• Fast roaming – Pre-authentication, PMK and 802.11r/k/v caching
• DCS
• Load balancing
• Advanced cellular coexistence

Power supply:

• PoE (802.3)at: power draw 21W
• DC input : 12 VDC 2A

Software:
System Requirements:
Accessories included:

• Mounting plate
• Mounting screws

Color: White
Weight: 650 gram
Dimensions:

180 x 180 x 42 mm

Other features:

Antenna type 4×4 + 2×2 Double optimised antenna

• 2.4 GHz antenna gain: 3dBi peak gain
• 5 GHz: 5dBi peak gain
• 6 GHz: 6dBi peak gain
• Minimum receive sensitivity Rx to -101 dBm

Designation:
