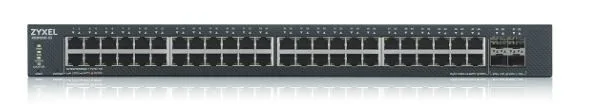

Zyxel Switch XGS1930-52 48xGb 4x10G SFP+ Hybrid

Zyxel Switch XGS1930-52 48xGb 4x10G SFP+ Hybrid

Description:

XGS1930-52 switch
The Smart Managed Switch series Zyxel GS1930 presents Zyxel NebulaFlex that allows you to easily switch between our license-free cloud management platform Nebula at any time in just a few simple clicks.

Switch class: SMART
Switch class: Managed
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 48
Number of SFP+ ports: 4
Throughput: 176 Gigabajty na sek.
Forwarding rate: 130.9 Mpps
Packet buffer: 1.5 MegaBajt
MAC address table size: 16000
Stackability: Yes
VLAN:
Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet*
• IEEE 802.3u 100BASE-TX Ethernet*
• IEEE 802.3ab 1000BASE-T Ethernet*
• IEEE 802.3z 1000BASE-X*
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber*
• IEEE 802.3af PoE*
• IEEE 802.3at PoE Plus*
• IEEE 802.3az EEE*
• IEEE 802.3x flow control
• IEEE 802.3ad LACP aggregation*
• IEEE 802.1D Spanning Tree Protocol (STP)*
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1p Class of Service (CoS) prioritization*
• IEEE 802.1X port authenticatio

QoS:

• No. of hardware queues per port: 8*
• 802.1p queuing methods: SPQ, WRR, WFQ*
• Storm control: broadcast, unknown L2MC, unknown unicast (DLF)*
• Rate limiting per port
• Policy-based rate limiting
• Policy-based prioritizatio

Security:

• 802.1X*
• Port security*
• MAC authentication*
• Static MAC forwarding
• SSL
• Static ARP
• Policy-based security filtering
• Port isolation
• MAC search
• Guest VLAN*
• PPPoE relay agent
• PPPoE option 82
• PPPoE IA
• Interface related trap enable/  disable (by port)
• CPU protection
• SHA2 HTTPS certification*
• Login authentication by RADIUS*
• RADIUS accounting
• Authorization on RADIUS*
• Multiple RADIUS servers*
• 802.1x VLAN and bandwidth  assignment by RADIUS*
• ACL packet filtering (IPv4/IPv

Management, monitoring, configuration:

• SNMP v1, v2c, v3
• SNMP trap group
• RMON (1, 2, 3, 9)
• Syslog (IPv4/v6)*
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• Custom default
• Display port utilization*
• Support NebulaFlex for hybrid mode

L2 features:

• L2 multicast group: 1K
• IGMP snooping (v1, v2, v3)*
• Configurable IGMP snooping timer and priority
• IGMP snooping statistics
• IGMP throttling
• IGMP filtering
• Static multicas

L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 55.7 Watt
Mean time between failures (MTBF): 827.093 Hour
Accessories included:

• Power cable
• Technical Documentation

Power supply:

100 to 240 V AC, 50/60 Hz

Dimensions:

441 x 270 x 44 mm

Weight: 3.7 kilogram
Other features:
Designation:
