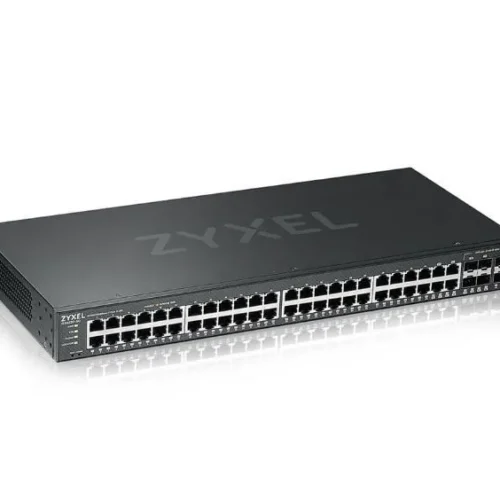

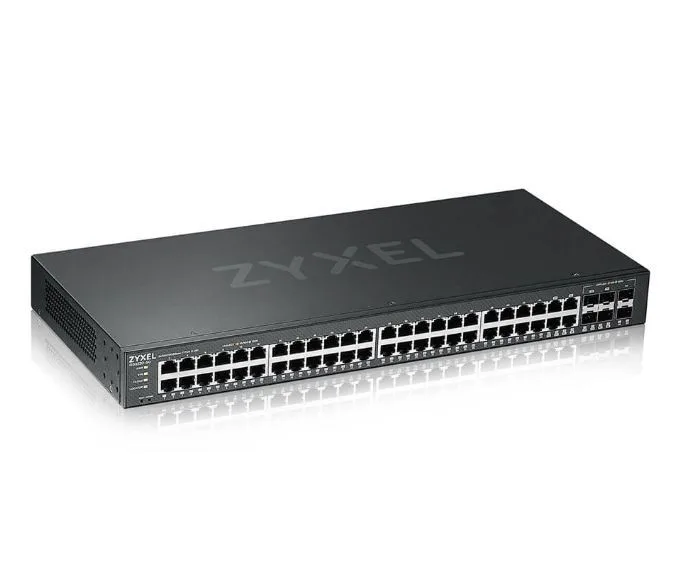

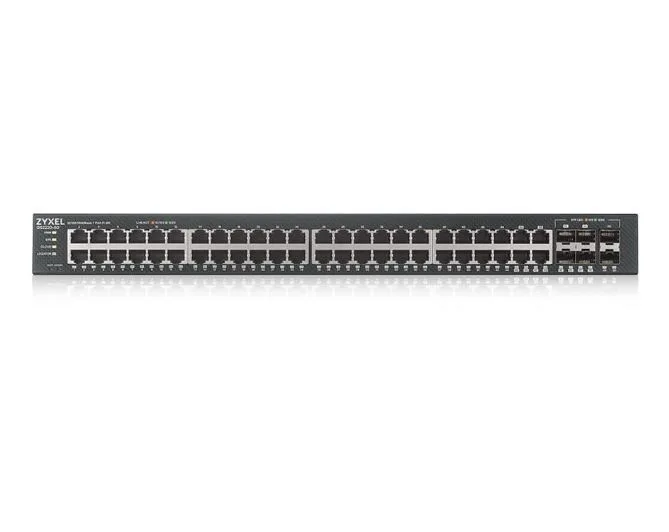

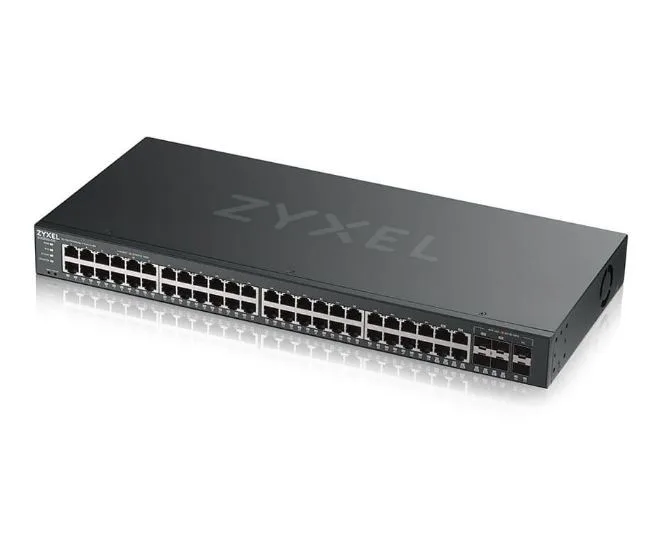

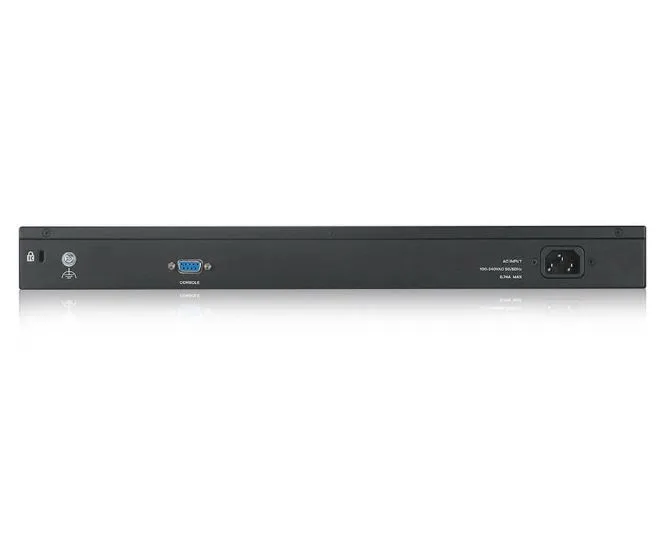

Zyxel Switch GS2220-50-EU0101F 48-port GbE L2 Switch with GbE Uplink

Zyxel Switch GS2220-50-EU0101F 48-port GbE L2 Switch with GbE Uplink

Description:

Industry’s first switch with three management modes

The GS2220 series is the first-ever managed hybrid switch with Nebula cloud management, standalone management and SNMP.

Powerful L2 functionality

The GS2220 Series has a rich Layer 2 feature set that can shape traffic for any VoIP, video conferencing and IPTV deployments. The advanced traffic control features implemented in the GS2220 Series, such as L2 multicast, IGMP snooping, Multicast VLAN Registration provide hotels, businesses and educational institutions with greater capabilities and more efficient traffic management for today’s converged applications.

Manage it your way!

Zyxel NebulaFlex Pro support allows you to easily switch, at any time with just a few clicks, between standalone management mode and Nebula’s intuitive cloud management platform with the ANNUAL Pro Pack included in the switch price.

Efficient device power and energy saving

To meet the needs of power-hungry devices, PoE models support 802.3at, offering 30 watts per port and a maximum power budget of 375 watts. Smart consumption mode allows only the actual power required by devices connected to the switch to be delivered, which translates into a greater return on investment.

Ultra-quiet operation

The presented series supports models without fans and with built-in intelligent fans. The intelligent fan is designed to automatically adjust its speed depending on the temperature of the device. You will hardly hear the sound of the fans when the switch is in operation.

Flexible port connectivity

The GS2220 series has copper and combo ports, the 50 and 50HP models even come with additional dedicated SFP ports for uplinks. The flexible port combination can easily be used in any Layer 2 switching installation.

Switch class: Managed
Application: Medium and large companies
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 44
Number of COMBO ports: 4
Number of SFP ports: 2
Console port: No
Throughput: 100 Gigabajty na sek.
Forwarding rate: 74 Megabajty na sek.
Packet buffer: 1.5 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: No
Stackability: Yes
VLAN:

• 802.1Q static VLANs/dynamic VLANs: 1 K/4 K
• Port-based VLAN
• Protocol-based VLAN
• IP subnet-based VLAN
• MAC-based VLAN
• Private VLAN
• Voice VLAN
• Vendor ID based VLAN
• VLAN ingress filtering
• LACP algorithm of source/ destination IP or MAC
• GVRP
• L2PT

Supported protocols and standards:

• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3z 1000BASE-X
• IEEE 802.3af PoE
• IEEE 802.3at PoE plus
• IEEE 802.3az EEE
• IEEE 802.3x flow control
• IEEE 802.1AB LLDP/LLDP-MED
• IEEE 802.3ad LACP aggregation
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1Q VLAN tagging
• IEEE 802.1p Class of Service (CoS) prioritization
• IEEE 802.1X port authentication

QoS:

• No. of hardware queues per port: 8
• Storm control and event log: Broadcast, multicast, unknown unicast (DLF)
• Port-based rate limiting (ingress/ egress)
• Rate limiting per IP/TCP/UDP per port
• Policy-based rate limiting
• 802.3x flow control
• 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
• DiffServ (DSCP)

Security:

• Port security
• Layer 2 MAC filtering
• Layer 3 IP filtering
• Layer 4 TCP/UDP socket filtering
• Static MAC forwarding
• Multiple RADIUS servers
• Multiple TACACS+ servers
• New for V4.70 Compound authentication
• 802.1x VLAN and 802.1p assignment by RADIUS
• Login authentication by RADIUS
• Login authentication by TACACS+
• TACACS+ accounting
• RADIUS accounting
• Authorization on RADIUS
• Authorization on TACACS+
• SSH v2
• SSL
• MAC freeze
• DHCP snooping IPv4
• DHCP snooping IPv6
• ARP inspection
• Static IP-MAC-Port binding
• Policy-based security filtering
• Port isolation
• IP source guard (IPv4/IPv6)
• MAC search
• Guest VLAN
• ACL packet filtering (IPv4/IPv6)
• CPU protection
• Interface related trap enable disable (by port)
• MAC-based authentication per VLAN

Management, monitoring, configuration:

• SNMP v1, v2c, v3
• SNMP trap group
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• IEEE 802.1AB LLDP
• Cloud support on V4.70 IEEE 802.1AB LLDP-MED
• Custom default
• Syslog (IPv4/IPv6)
• Display port utilization
• Support NebulaFlex Pro for Cloud Management

L2 features:

• L2 multicast
• IGMP snooping (v1, v2, v3)
• IGMP snooping fast leave
• Configurable IGMP snooping timer and priority
• IGMP snooping statistics
• IGMP throttling
• MVR support
• IGMP filtering
• IGMP snooping immediate leave
• IGMP proxy mode & snooping mode selection
• MLD snooping

L3 features:
Other functions:
Chassis type: Rack
Power supply : Internal
Power consumption: 36.9 Watt
Accessories included:
Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

440 x 200 x 44.5 mm

Weight: 2.9 kilogram
Other features:

Acoustic noise (min/max) : 23.6/47.3 dBA

Designation:
