Zyxel Router wireless LTE5398-M904-EU01V1F

Zyxel Router wireless LTE5398-M904-EU01V1F

Model:

LTE5398-M904

Description:

Maximum Network Efficiency, Easier Life!

It combines the functions of WAN AP, LAN gateway and VoIP/VoLTE*/telephone in one box. With an easy-to-navigate interface and minimalist design, it helps make your life easier!

Wireless freedom

Installing cable internet is not cost-effective/time-consuming at all. It can free you from cable installation with 4G LTE wireless technology for any location with poor wired connection. Whether you already have a router or not, the device can operate in both bridge and router modes, making it easy to deploy and integrate into your existing environment.

Exceptional speed, signal and performance

Equipped with Cat.18, the highest level of 4G LTE-A technology, downlink speeds can reach up to 1.2 Gbps thanks to 5-band carrier aggregation and built-in 4×4 high performance MIMO antennas. Even better, two external LTE antenna ports are embedded, which can enhance signal reception. Enjoy fast mobile internet.

Seamless connectivity

The „Dual-WAN failover“ function allows you to configure LTE as a backup when the performance of the main wired connection drops, or set LTE as the main connection and the LAN port as a backup WAN to maintain a reliable network connection.

Connection possible anywhere

It uses dual-band concurrent 2.4/5GHz Wi-Fi. Share your Wi-Fi with up to 32* Wi-Fi devices simultaneously. Combine it with powerful security gateways, switches, NAS servers, VoIP/VoLTE phones, or other devices to meet your business or family’s networking needs throughout the day.

Simple design, Easy management

It is designed with elegance and space-saving style. The plug-and-play function, the user-friendly free „Zyxel Air“ app and the intuitive web-based GUI ensure pleasant and easy-to-use management via mobile device or PC.

Type: xDSL
Type: GSM 3G/4G
Network architecture: GigabitEthernet

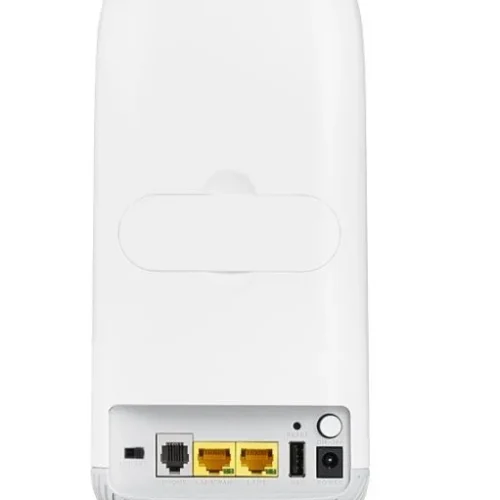

I/O ports: 2 x 10/100/1000 Mbit/s
I/O ports: 1 x USB 2.0
Standards: 802.11n
Standards: 802.11a
Standards: 802.11b
Standards: 802.11g
Standards: 802.11ac
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Number of antennas: 6
Antenna: Built-in
Antenna gain: 5 dBi
Security:

• WPA2-Personal, WPA+WPA2
• Wi-Fi Protected Setup (WPS)

Management, monitoring, configuration:

• APN management
• SIM PIN/PUK management
• SMS management
• Network selection
• Selection of the operating frequency band
• Zyxel Air APP support (iOS and Android) for easy installation and local management

Special functions:
Power supply:
Software:
System Requirements:
Accessories included:

• Power adapter (12V/2A EU/US/UK plug)
• Ethernet cable
• Quick Start Guide
• Warranty Card
• CE certificate
• Safety Warning

Color: White
Weight: 599 gram
Dimensions:

100 x 100 x 205 mm

Other features:

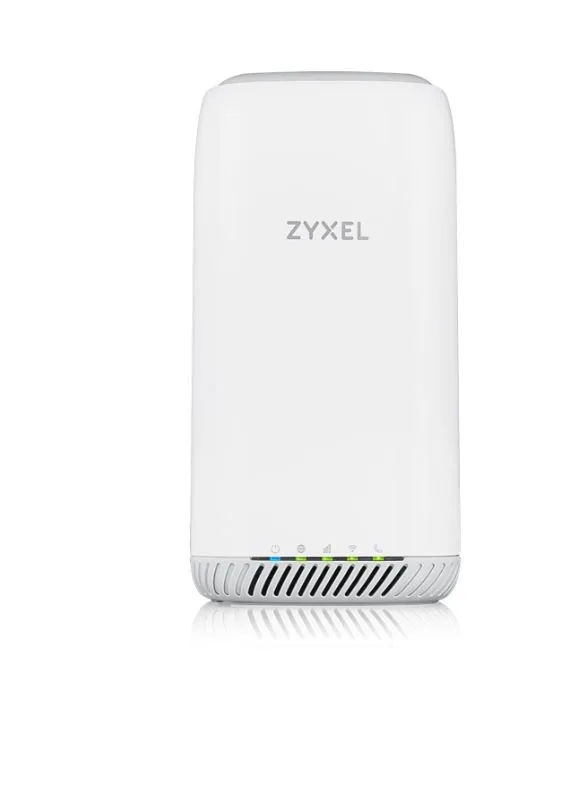

• LEDs (from left to right on the panel):
• Power/USB (green/blue)
• internet (green)
• LTE Signal Strength (Green/Red/Orange)
• WiFi/WPS (Green)
• One button WPS & Wi-Fi on/off
• One slot for 3FF micro SIM card
• One button reset to default settings
• One button power on/off
• Automatic channel selection
• Wi-Fi Multimedia (WMM)
• Multiple SSID/Hide SSID
• WLAN planning
• Up to 32 Wi-Fi clients per band

Designation:
