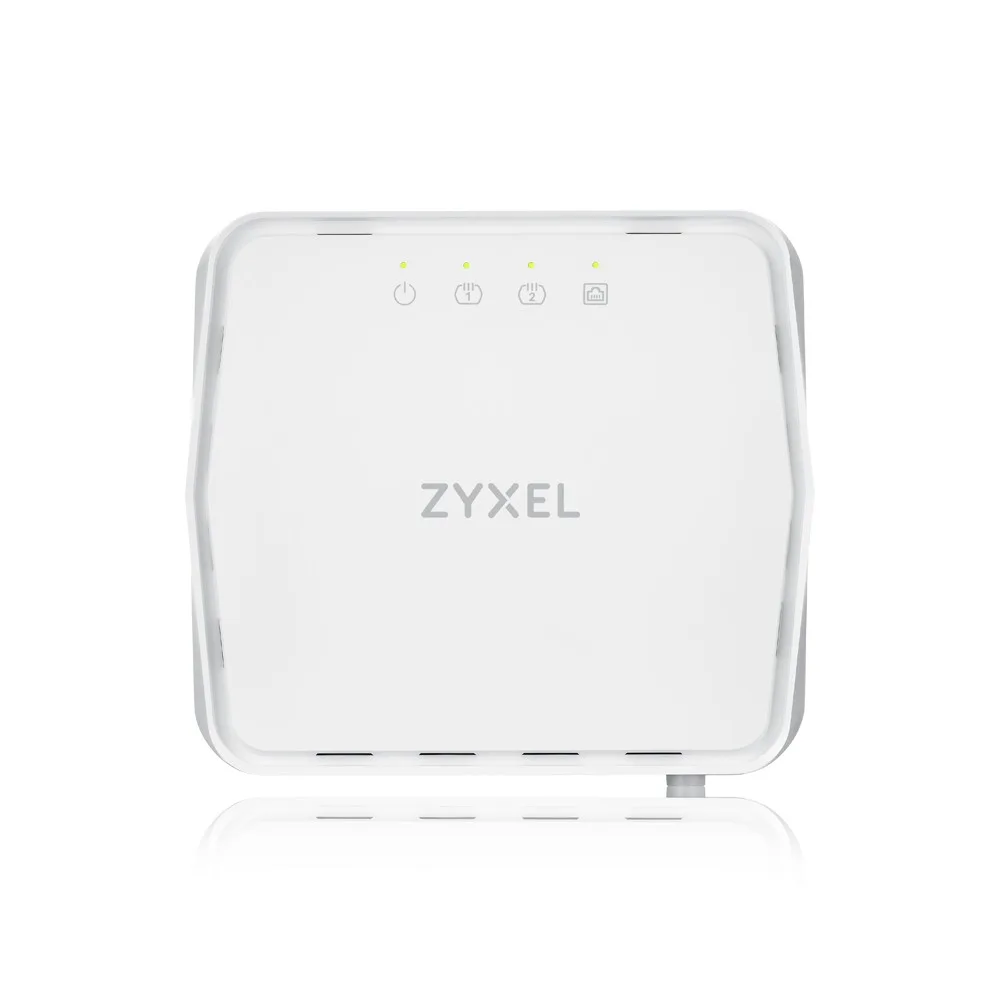

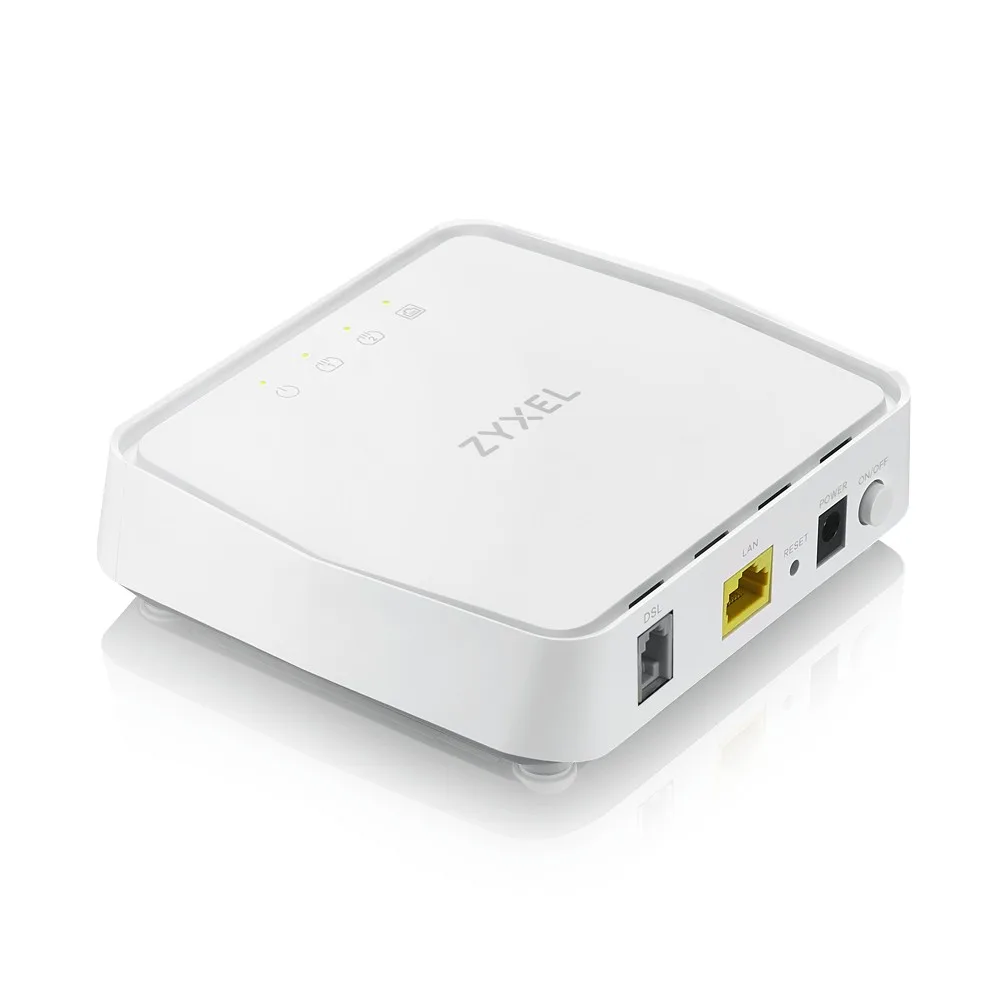

Zyxel Router VMG4005-B50A-EU01V1F

Zyxel Router VMG4005-B50A-EU01V1F

Model:

VMG4005-B50A

Description:

VDSL2 17a Bonding and 35b Single Line Bridge

The Zyxel VMG4005-B50A is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.

• VDSL2 17a Bonding technology allows ISPs to double the speed of their existing connection for customers
• VDSL2 supports super vectoring of up to profile 35b
• Metallic Line Testing (MELT) functionality, TR-286 standard compliant
• Auto provisioning and remote management through TR-069
• Zyxel OPAL firmware offers better flexibility and faster time-to-market
• Responsive Web design and intuitive user interface

Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.

Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B50A VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.

TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true „plug-and-play“ experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.

Type: ADSL/xDSL
Network architecture: GigabitEthernet

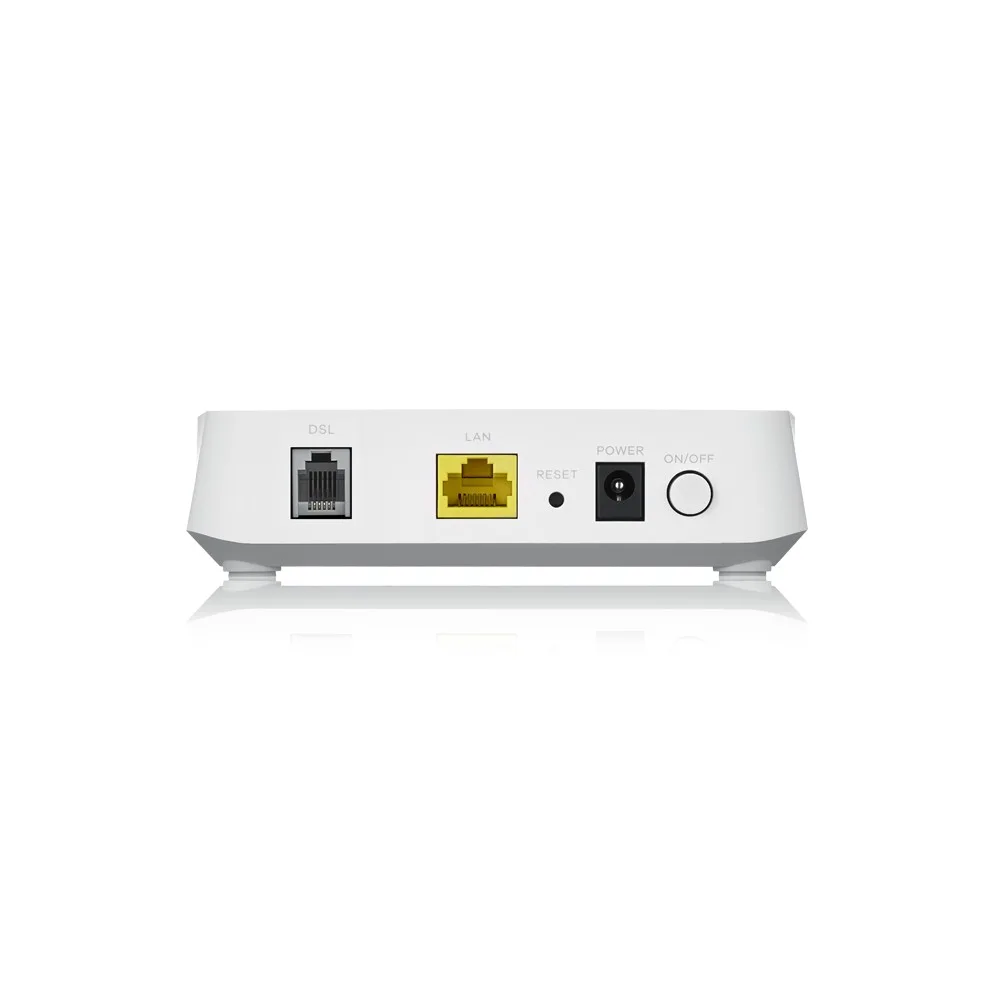

I/O ports: 1 x ADSL (RJ-11)
I/O ports: 1 x 10/100/1000 Mbit/s
Standards: 802.1d
Standards: 802.1Q
Operating frequency: Not applicable
Number of antennas: Not applicable
Security:

• Generic packet filter
• DoS attack prevention
• Certificates

Management, monitoring, configuration:

Bridge Features:



• IEEE 802.1D transparent bridge & basic spanning tree
• PPPoE (RFC 2516)
• PPPoA (RFC 2364)
• MAC Encapsulation Routing / IPoE
• DHCP client/server/relay with DHCP option 43/60/61
• IPv6: Dual Stack, 6RD





QoS:



• 802.1Q VLAN tagging/un-tagging
• Support flexible traffic classification
• Support VLAN staking (QinQ)





Networking:



• LAN Setup
• VLAN Group
• Interface group





Management:



• Web/HTTP: 3 level log-in
• CLI (Command Line Interpreter) via SSH or Telnet
• Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
• Text based configuration (XML based)
• Configuration backup/update/restore default via Web
• Configurable access control for remote management (Interface and / port number)
• Trust Domain (support trust domain list)
• NTP (Internet Time automatically synchronize)
• DSL Forum TR-069, TR-098,TR111, TR181
• Rom-D support
• Session login (for multiple user configuration with login privilege)
• Configuration filter by login privileges
• Firewall & Security





System Monitor:





• xDSL Statistics
• Traffic Status
• MAC Address Table
• ARP table
• System Log

Special functions:
Power supply:

12 V DC/1 A

Software:
System Requirements:
Environment requirements:

Operating Environment:

• Temperature: 0C to 40C (32F to 104F)
• Humidity: 10% to 90% (Non-Condensing)



Storage Environment:

• Temperature: -30C to 70C (-22F to 158F)
• Humidity: 10% to 95% (Non-Condensing)

Certificates:
Accessories included:

• VDSL2 Bridge Modem
• Power adapter
• Quick start guide
• DoC & Safety warning

Color: White
Weight: 173 gram
Dimensions:

130 x 120 x 32 mm

Other features:

VDSL:



• G.993.1 VDSL
• G.993.2 VDSL2, Band 997, 998, over POTS
• Support VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
• G.vector





ADSL:





• G.992.1 (G.dmt)
• G.992.2 (G.lite)
• ANSI T1.413 compliant
• G.992.3 (ADSL2)
• G.992.5 (ADSL2+)
• G.INP support
