Zyxel Nebula Simplicity Starter Kit 2x WiFi 6 Access Points & 8-Port PoE Smart managed Switch NWA90AX & GS1915-8EP

Zyxel Nebula Simplicity Starter Kit 2x WiFi 6 Access Points & 8-Port PoE Smart managed Switch NWA90AX & GS1915-8EP

Separator:

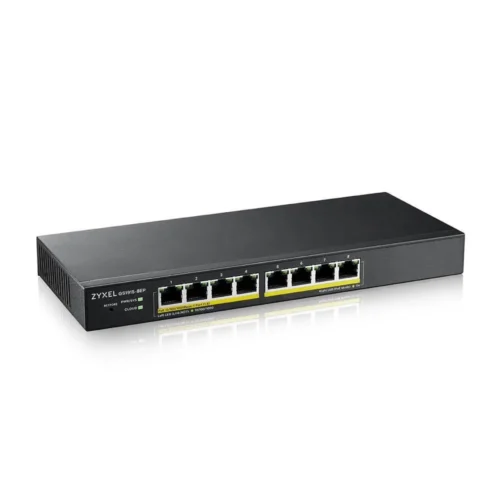

GS1915-8EP managed switch

Description:

Nebula Simplicity Switch and AP Starter Kit

GS1915-8EP intelligent managed switch

The Zyxel GS1915 series offers 8/24-port GbE intelligent managed switches with and without PoE functionality for small businesses. The GS1915 series supports NebulaFlex, which offers convenient features and excellent performance. This series is the most affordable hybrid switch solution for the small and medium business (SB/SMB) market. It can be easily configured using Nebula Control Center for cloud-integrated management, or via a user-friendly Web GUI if you prefer local settings.

802.11ax dual-radio PoE access point (Wi-Fi 6) NWA90AX

With support for a guest welcome page and IEEE802.1x authentication, the NWA90AX access point offers SMBs not only enterprise-grade security to protect their corporate network, but also flexible options to customise wireless login methods for marketing and business promotion.With support for a guest welcome page and IEEE802. 1x access point, the NWA90AX offers SMBs not only enterprise-grade security to protect their corporate network, but also flexible options to customise wireless login methods for company marketing and promotion.The NWA90AX is the best choice for SMBs looking to affordably upgrade their access points to the 11ax (Wi-Fi 6) standard. With support for 2.4GHz and 5GHz, the NWA90AX access point allows you to take full advantage of Wi-Fi 6 capabilities, such as faster speeds, even in heavy internet traffic and device-dense environments, as well as extended wireless coverage and support for more Internet of Things devices.

Switch class: Managed
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 8
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 16 Gigabity na sek.
Forwarding rate: 11.9 Mpps
Packet buffer: 525 Kilobajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• Kontrola przepływu IEEE 802.3x
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
• Obsługa IEEE 802.3az EEE/zielony Ethernet
• Obsługa IEEE 802.1p CoS

QoS:

• 802.1p queuing methods: SPQ, WRR, WFQ
• Storm control: broadcast, multicast, unknown unicast (DLF)
• Rate limiting based on ports (incoming/outgoing)
• 802.3x flow control
• 802.1p class of service (support for SPQ, WFQ, SPQ/WFQ combinations)
• DiffServ (DSCP)

Security:

• Layer 2 MAC address filtering
• Static MAC redirection
• SSH v2
• SSL
• Port isolation
• Port security
• MAC freeze
• CPU protection
• SHA2 HTTPS certification
• RADIUS logon authentication
• RADIUS accounting
• RADIUS authorization
• Multiple RADIUS servers
• DHCP tracking

Management, monitoring, configuration:

• IPv6 over Ethernet (RFC 2464)
• IPv6 Addressing Architecture (RFC 4291)
• Dual Stack (RFC4213)
• ICMPv6 (RFC4884)
• MTU path (RFC 1981)
• Minimum Path MTU 1280 (RFC 5905)
• Encapsulation for a maximum PMTU size of 1500
• Neighbor Discovery (RFC4861)
• Self-management via web interface
• Cloud management by Nebula Control Center
• Setup Wizard
• Management over the Internet, SNMP
• Remote firmware upgrade via FTP/Web
• Saving and downloading configurations
• DHCP client
• DHCP relay per VLAN
• Seasonal time change
• NTP (IPv4/IPv6)
• Port mirroring
• Schedule PoE
• Default PoE consumption mode

L2 features:

• L2 multicast
• Static L2 multicast forwarding
• IGMP tracing (v1, v2, v3)

L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : Internal
Power consumption: 72 Watt
Mean time between failures (MTBF): 1641000 Hour
Accessories included:

• Managed switch
• Power cord
• Charger
• Wall mounting kit

Power supply:

100 – 240 V AC, 50/60 Hz

Dimensions:

250 x 104 x 27 mm

Weight: 0.62 kilogram
Other features:
Designation:
Separator:
Network architecture: GigabitEthernet
I/O ports: 1 x 10/100/1000 Mbit/s
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Standards: 802.11n
Standards: 802.11ac
Standards: 802.11ax
Standards: 802.11b
Standards: 802.11g
Standards: 802.11a
Antenna: Built-in
Antenna gain: 4 dBi
Security:
Management, monitoring, configuration:
Special functions:
Power supply:
Software:
System Requirements:
Accessories included:
Color: White
Weight: 290 gram
Dimensions:
Other features:
