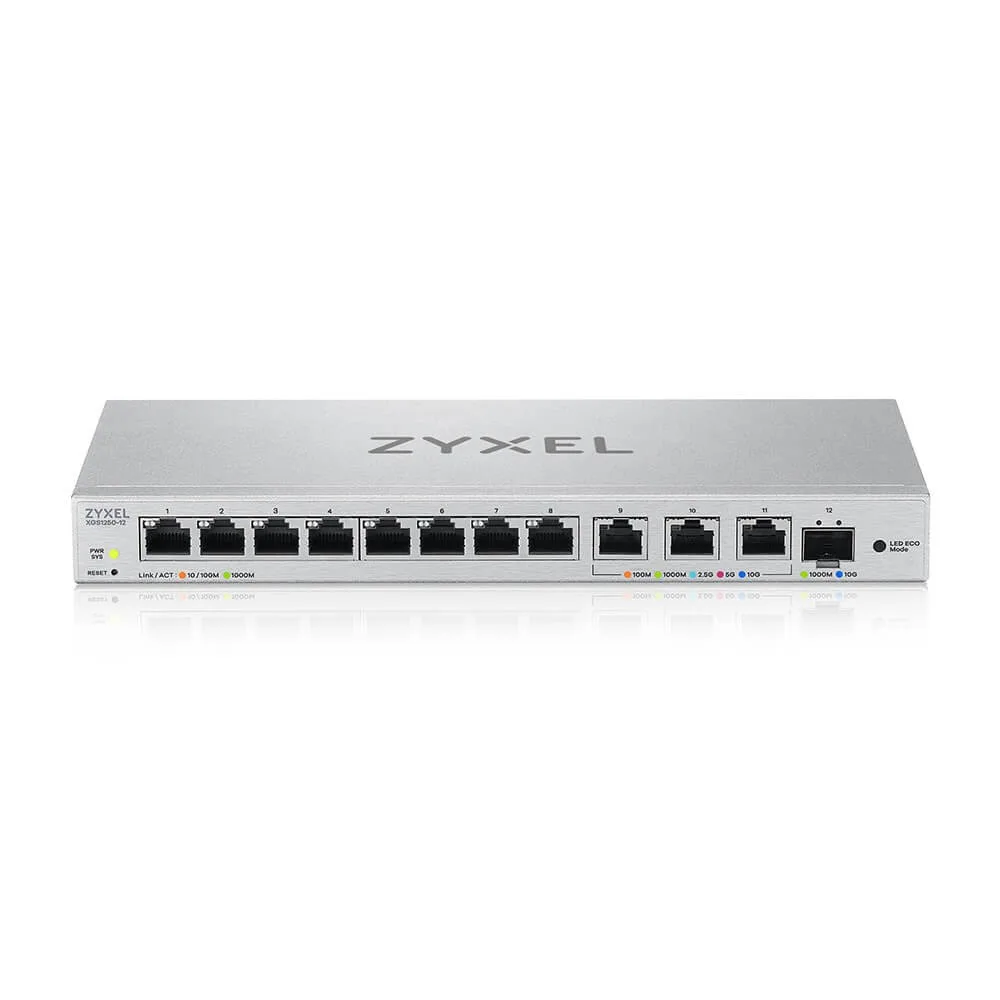

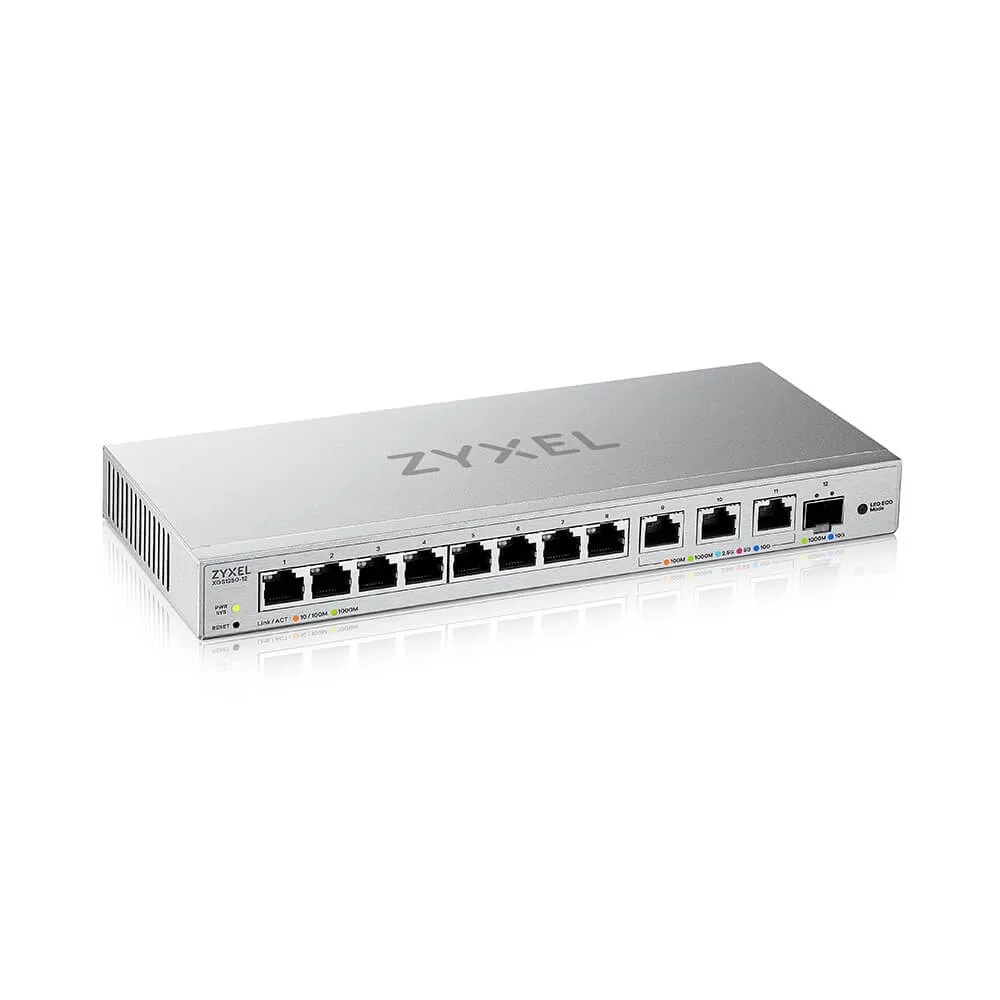

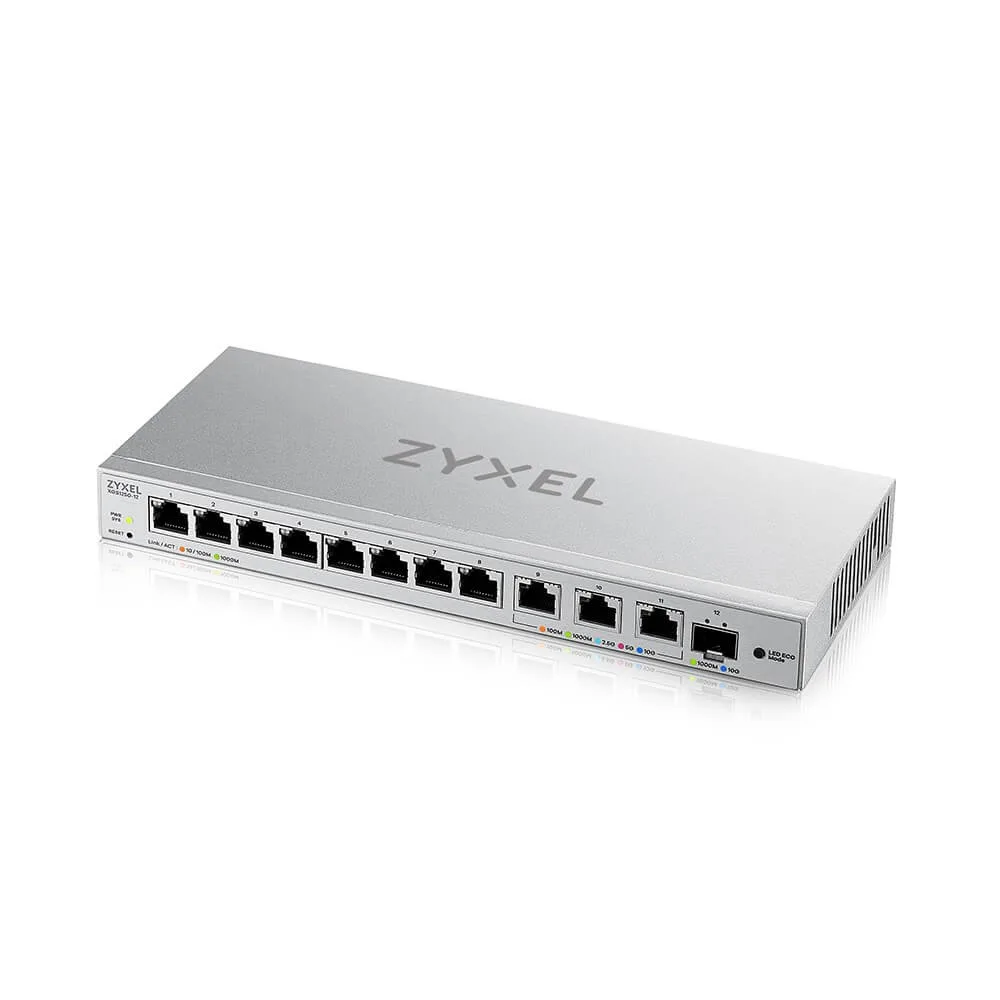

Zyxel Managed switch XGS1250-12-ZZ0102F

Zyxel Managed switch XGS1250-12-ZZ0102F

Description:

XGS1250-12-ZZ0102F Managed Switch

Agile Networking Applications
Equipped with 1G ports, 10G Multi-Gigabit ports, and a 10G fiber port, this port combination is able to support a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs or new 2.5G motherboards. The unique 5-color LED on the front panel allows you to check the link speed at a glance. link speed.

Why Multi-Gigabit?
The growing number of new applications is driving the demand for higher network speed. Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should determine the network speed of the motherboard, computer or WiFi 6 AP and choose the appropriate network cable to achieve the maximum speed. speed.

The current cabling is fine!
Multi-Gigabit support is able to leverage the existing Cat 5e cable infrastructure to increase the network speed up to 5 times for cost-effective network configuration.

Whisper Quiet, Energy Saving Operation
With the built-in intelligent fan, which is designed to automatically adjust the speed according to the device temperature, the sound is barely audible during the operation of the switch. In addition, you can turn off the Ethernet port LEDs to avoid distraction by switching to ECO LED mode via the front panel button* or web interface.**
* The function applies to the latest hardware version.
** New for FW V2.00.

Switch class: Managed
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of ports 1G/2.5G/5G/10G: 3
Number of 10Gb ports: None
Number of ports 25Gb: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 1
Number of SFP56 ports: None
Number of QSFP+ ports: None
Throughput: 96 Gigabajty na sek.
Forwarding rate: 71.42 Megabajty na sek.
Packet buffer: 1.5 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 12 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3an 10GBASE-T
• IEEE 802.3ae 10 Gbit/s Ethernet over fiber
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3x full duplex operation and flow control
• IEEE 802.1p QoS

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Power supply : External
Power consumption: 20.06 Watt
Environment requirements:

• Temperature: 0°C to 40°C/32°F to 104°F
• Humidity: 10% to 90% (non-condensing)
• Temperature: -40°C to 70°C/-40°F to 158°F
• Humidity: 10% to 90% (non-condensing)

Certificates:
Accessories included:
Power supply:

100-240 V ~ 50-60 Hz

Dimensions:

27 x 250 x 104 mm

Weight: 0.783 kilogram
Other features:
Designation:
