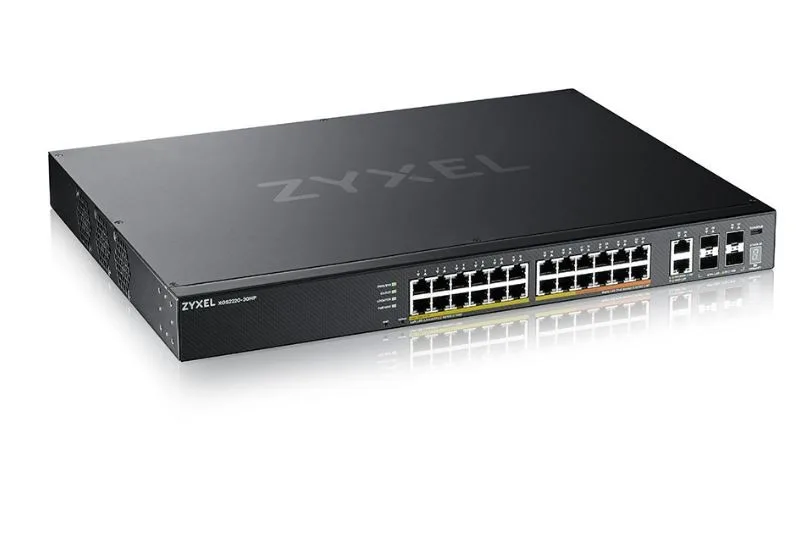

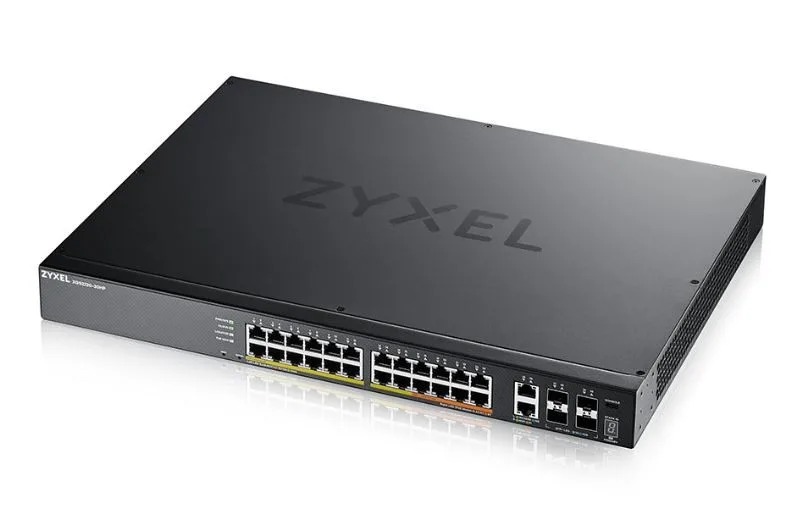

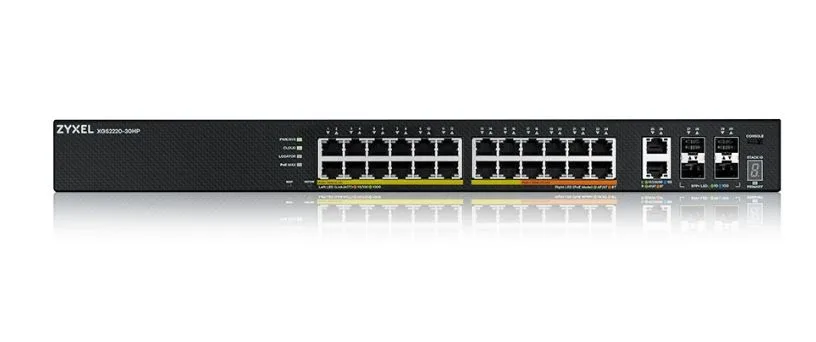

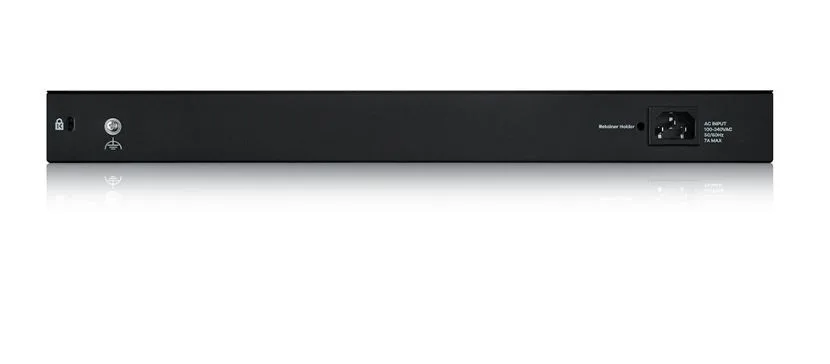

Zyxel Access Switch L3 24 ports PoE,10GbE RJ-45, 4 ports 10GbE SFP+ XGS2220-30HP-EU0101F

Zyxel Access Switch L3 24 ports PoE,10GbE RJ-45, 4 ports 10GbE SFP+ XGS2220-30HP-EU0101F

Description:

• 16 Gigabit RJ-45 PoE+ ports
• 8 Gigabit RJ-45 PoE++ ports (60 W).
• 2 x 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 PoE++ (60W) ports
• 4 1G SFP/10G SFP+ slots
• PoE power budget: 400W

Network architecture: GigabitEthernet
I/O ports: 24 x 10/100/1000 Mbit/s PoE
I/O ports: 4 x SFP
I/O ports: 1 x 10 Gbit/s
Standards: 802.1Q
Standards: 802.1ab
Standards: 802.3ab
Standards: 802.3ae
Standards: 802.3af
Standards: 802.3an
Standards: 802.3at
Standards: 802.3az
Standards: 802.3bt
Standards: 802.3x
Standards: 802.3z
Standards: 802.1p
Standards: 802.1x
Security:

Port security

Layer 2 MAC filtering

Layer 3 IP filtering

Layer 4 TCP/UDP socket filtering

Static MAC forwarding

Multiple RADIUS servers

• Multiple TACACS+ servers
• 802.1x VLAN and 802.1p assignment by RADIUS
• Login authentication by RADIUS
• Login authentication by TACACS+
• TACACS+ accounting
• RADIUS accounting
• Authorization on RADIUS
• Compound authentication
• Authorization on TACACS+
• SSH v2
• SSL
• MAC freeze
• IP source guard (IPv4/IPv6)
• DHCP snooping
• DHCP ServerGuard
• ARP inspection
• ARP freeze
• Anti-ARP scan
• Static IP-MAC-Port binding
• Policy-based security filtering
• Port isolation
• MAC search
• Guest VLAN
• ACL packet filtering* (IPv4/IPv6)
• CPU protection
• Interface related trap enable/disable (by port)
• MAC-based authentication per VLAN
• BPDU transparency
• PPPoE relay agent/option82
• WoL/WoL Relay

Management, monitoring, configuration:

• Standalone management by Web interface
• Cloud management by Nebula
• Control Center
• Networked AV mode by Web Interface
• Intuitive Cloud connection status
• Zyxel iStackingTM
• Management through Console,
• Telnet, SNMP
• Remote firmware upgrade by FTP/Web/TFTP
• Configuration saving and retrieving
• Multiple logins supported
• Configure clone
• Custom default Configuration
• Multilevel CLI
• CLI (Cisco-like)
• DHCP relay per VLAN
• DHCP client IPv4/IPv6
• DHCP client option 60
• DHCP option 82
• Daylight saving
• DHCP relay MAC proxy
• Auto PD Recovery
• NTP supports IPv4/IPv6
• Port mirroring
• Policy-based mirroring
• Mirror CPU
• VLAN-based mirroring

Special functions:
Power supply:

100 – 240 V AC, 50/60 Hz

Software:
System Requirements:
Environment requirements:
Certificates:

Safety

• LVD
• BSMI

EMC

• FCC Part 15 (Class A)
• CE EMC (Class A)
• BSMI EMC

RoHS

• Level A

Accessories included:
Color: Black
Weight: 5.77 kilogram
Dimensions:

441 x 330 x 44 mm

Other features:
Designation:
