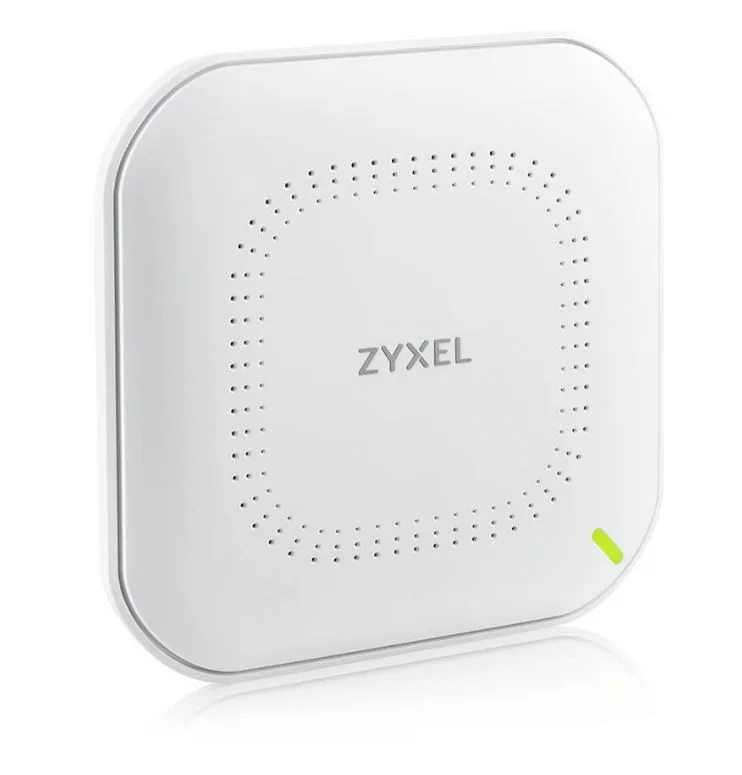

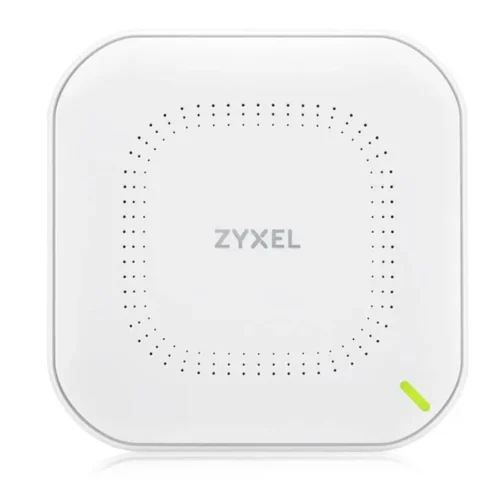

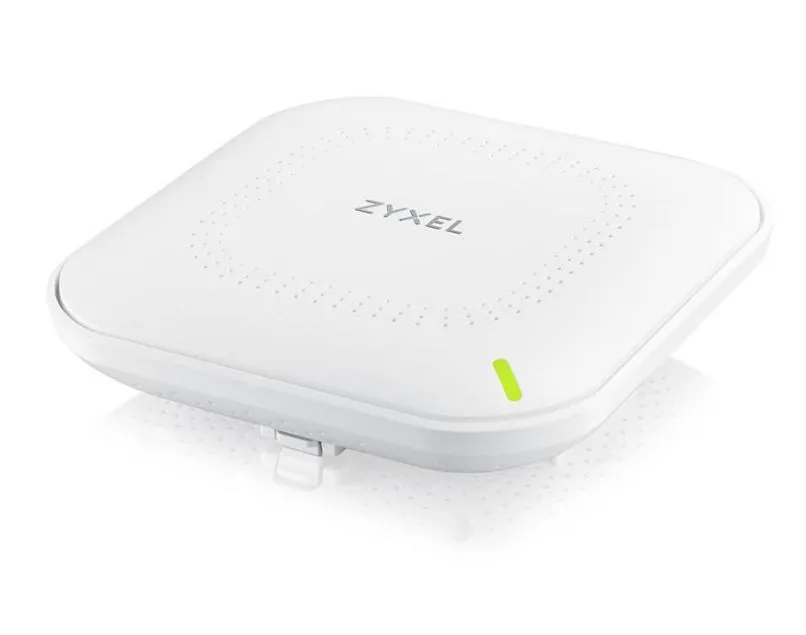

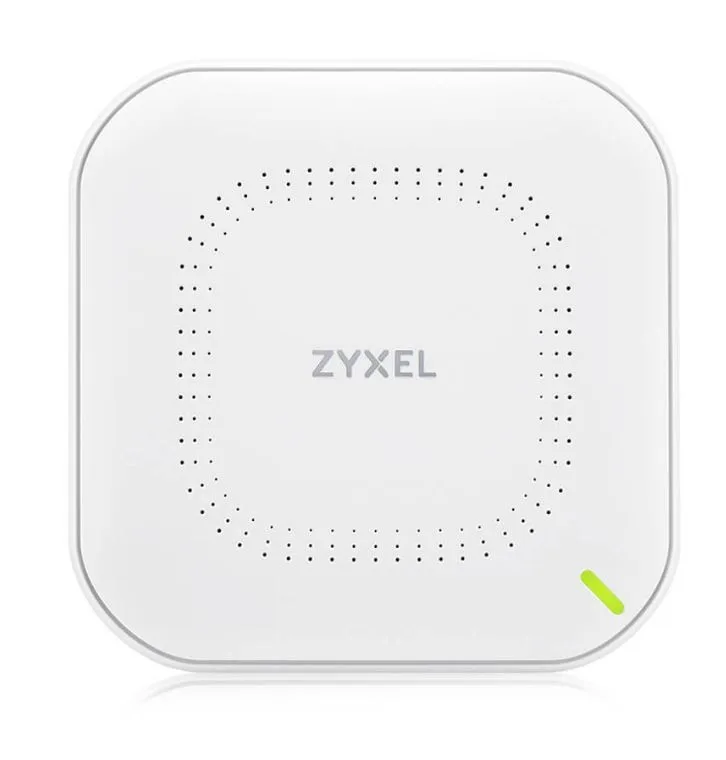

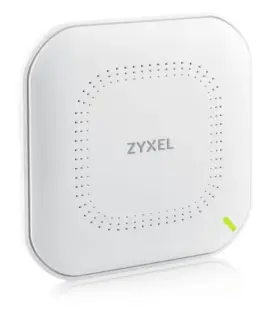

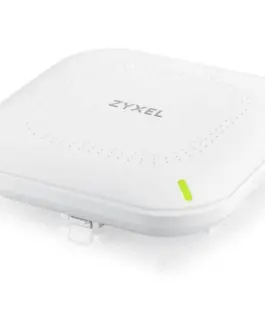

Zyxel Access point Nebula NWA50AX PRO NWA50AXPRO-EU0102F

Zyxel Access point Nebula NWA50AX PRO NWA50AXPRO-EU0102F

Description:

Multi-gig Wi-Fi 6 access point for small businesses

Delivering AX3000 Wi-Fi speeds with a 2.5G Ethernet uplink port, Zyxel NWA50AX Pro delivers powerful and fastest Wi-Fi 6 speeds for small businesses, SoHo and home offices.

Extended 5 GHz coverage for small businesses.

The AX3000 access point (3×3:2 in 5Ghz, 2×2:2 in 2.4Ghz) provides a maximum data transfer rate of 3000 Mbps, and the 2.5G uplink port enables multi-gig connectivity for small business networks.

Multi-gigabit Wi-Fi with a connection-stabilizing design.

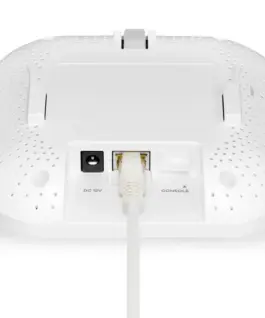

Get multi-gigabit performance with a 2.5Gbps PoE port to meet your most demanding wireless requirements. The Multi-gig Connection Stabilizer Pad secures the connection between the Cat 5E cable and the RJ45 connector to provide a 2.5G connection for maximum throughput.

Easy installation and configuration.

Easy self-installation/configuration with the right feature set, perfect for small businesses and SOHO.

Flexible management

NebulaFlex allows users to switch between standalone mode or Nebula’s intuitive cloud management mode depending on their needs.

Boost your Wi-Fi performance

To better take advantage of the faster speeds in the 5 GHz band, Zyxel NWA50AX Pro is equipped with 3 high-gain antennas that amplify the Wi-Fi signal and extend the range, especially in hard-to-reach areas. In addition to Wi-Fi signal amplification, the NWA50AX Pro also comes with top-quality multi-gig Ethernet connections. Because it can run on regular Cat5e cabling, the 2.5G uplink port breaks the 1.0G bottleneck without the need for re-cabling, making it easy to create an affordable, high-speed networking environment for your business or home.

Easy deployment with Zyxel’s Smart Mesh

Zyxel’s Smart Mesh technology automatically creates dynamic wireless connections between access points and eliminates complex, cumbersome cabling to deploy Wi-Fi. Smart Mesh technology saves on additional cabling by enabling wireless connectivity between access points for extended coverage and flexible deployment.

Manage your way!

NWA50AX Pro with NebulaFlex offers flexible management capabilities so you can freely choose between your device’s local web interface or joining our super easy Nebula cloud management interface, so you never have to worry about forgetting your IP address or losing your account and password while managing it in the cloud.

Network architecture: GigabitEthernet

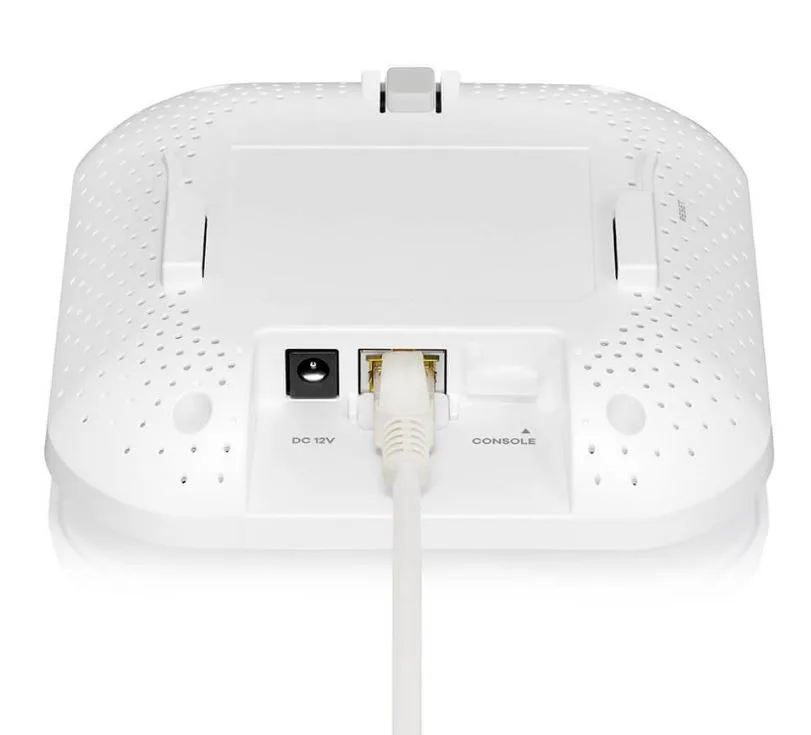

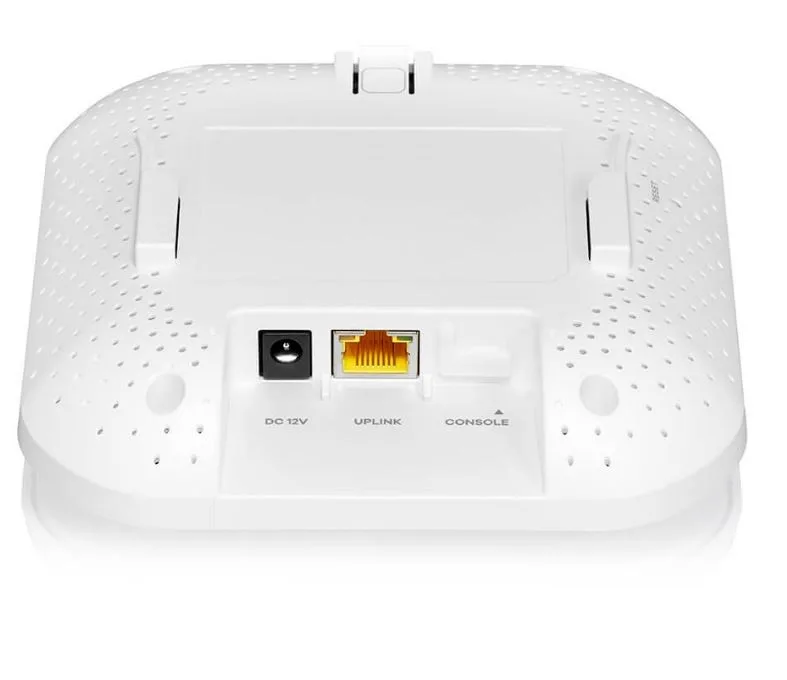

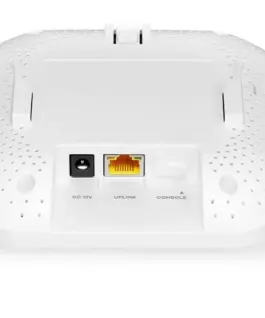

I/O ports: 1 x 10/100/1000/2500 RJ-45 port
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Standards: 802.11g
Standards: 802.11b
Standards: 802.11ax
Standards: 802.11ac
Standards: 802.11n
Standards: 802.11a
Number of antennas: 2
Antenna: Built-in
Antenna gain: 4 dBi
Security:

Encryption

• WPA Personal
• WPA2 Personal
• WPA3 Personal

Access management

• L2 isolation
• MAC address filtering
• Detecting rogue access points

Management, monitoring, configuration:

ZON tool

• Discovery of Zyxel switches, access points and gateways
• Centralized and batch configuration:
• IP configuration
• IP renewal
• Restart the device
• Locating devices
• Access to the web GUI
• Firmware update
• Password configuration

Special functions:
Power supply:

• Power supply: AC 100 – 240V – 50/60Hz 0.3A, Output: DC +/- 12V 2A
• PoE (802.3at): power consumption 20.5 W

Software:
System Requirements:
Environment requirements:

Work

• Temperature: 0°C to 50°C/32°F to 122°F
• Humidity: 10% to 90% (non-condensing)

Storage

• Temperature: -40°C to 70°C/-40°F to 158°F
• Humidity: 10% to 90% (non-condensing)

Certificates:

• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893
• LP0002
• EN 60601-1-2
• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438
• Safety EN 60950-1
• IEC 60950-1
• BSMI CNS14336-1

Accessories included:

• Power adapter
• Mounting plate
• Mounting screws

Color: White
Weight: 352 gram
Dimensions:

140 x 140 x 37.5 mm

Other features:
Designation:
