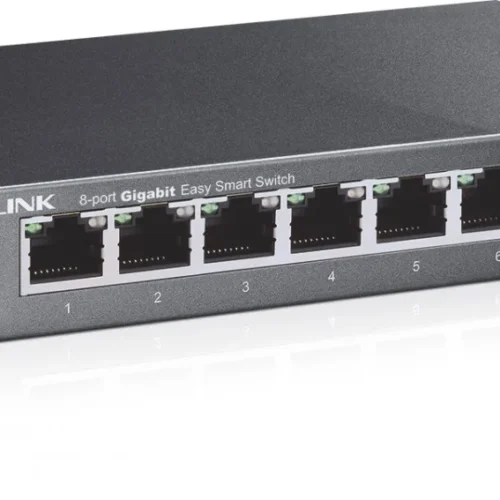

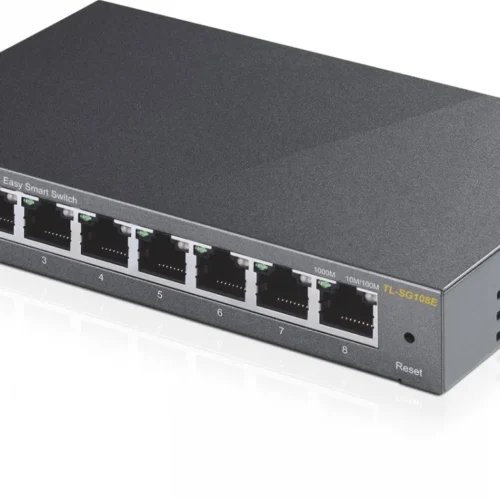

TP-LINK TP-Link TL-SG108E 8x1GbE Smart Switch

TP-LINK TP-Link TL-SG108E 8x1GbE Smart Switch

Description:

The TL-SG108E 8-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG108E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 80% of power consumption, making it an eco-friendly solution for your business network.

Switch class: SMART
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Console port: No
Forwarding rate: 11.9 Mpps
Packet buffer: 256 Kilobajt
MAC address table size: 8192
Support for Jumbo frames: Yes
Jumbo frame size: 16 Kilobajt
Number of VLAN groups: 32
VLAN:

– Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
– MTU/Port/Tag VLAN

Supported protocols and standards:

– IEEE 802.3
– IEEE 802.3u
– IEEE 802.3ab
– IEEE 802.3x
– IEEE 802.1q
– IEEE 802.1p

QoS:

– Support Port Based/802.1p Based priority
– Support 4 priority queues
– Rate Limit
– Storm Control

Security:
Management, monitoring, configuration:
L2 features:

– IGMP Snooping
– Link Aggregation
– Port Mirroring
– Cable Diagnostics
– Loop Prevention

L3 features:
Other functions:

– Transmission Method: Store-And-Forward
– AUTO Negotiation/AUTO MDI/MDIX
– Innovative energy-efficient technology reduces power consumption by up to 80%
– IEEE 802.3x flow control provides reliable data transfers
– Effective network monitoring
– Port and tag-based QoS enable smooth latency-sensitive traffic

Chassis type: Slim
Fan : No
Power supply : External
Accessories included:

– TL-SG108E
– Power Cord
– Installation Guide
– Resource CD
– Rubber Feet

Power supply:

100-240V AC, 50/60Hz

Dimensions:

158 x 101 x 25 mm

Other features:

– Transmission Method: Store-And-Forward
– Certification: FCC, CE, RoHS
– Operating Temperature: 0~40
– Operating Humidity: 10%~90% non-condensing

Designation:
