Description:

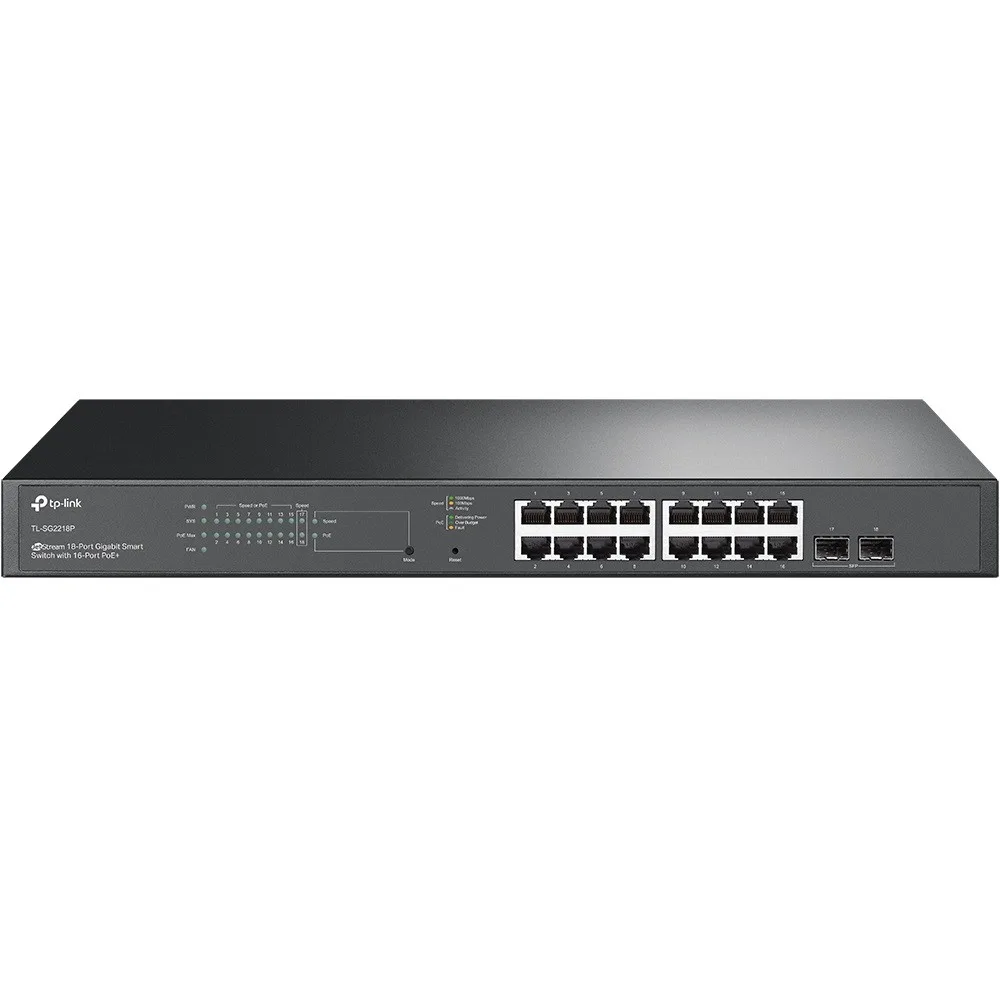

TL-SG2218P Smart JetStream Switch, 18 Gigabit Ports, including 16 PoE+ Ports

• 150W total PoE power: 16 802.3af/at compliant PoE+ ports provide a total of 150W PoE power.
• Gigabit Ports: 16 Gigabit PoE+ ports and 2 Gigabit SFP slots ensure high-speed connections.
• Operation integrated with the Omada SDN platform: Unattended ZTP configuration, Cloud Central Management and Intelligent Monitoring.
• Centralized management: Cloud access and the Omada app is the convenience of management.
• Static Routing: Control internal traffic for more efficient use of network resources.
• Robust Security: IP, MAC and Port Binding, ACL, Port Security, DoS Protection, Storm Control, DHCP Snooping, 802.1X, Radius Server Authentication and much more.
• Optimization of Voice and Video transmission: L2/L3/L4 QoS and IGMP snooping.
• IPv6: IPv6 support with IPv4/IPv6 dual stack, MLD snooping and IPv6 neighbor discovery.

Realize more possibilities with Omada

Smart JetStream switch, 18 Gigabit ports, including 16 PoE+ ports.

Software control of network infrastructure (SDN) with access from the cloud

Omada’s Software Network Infrastructure Control (SDN) platform integrates the operation of network devices, including access points, switches and gateways, for end-to-end central management from the cloud. Omada allows you to create a highly scalable network – fully controlled with a single interface. This translates to seamless wired and wireless connections that are essential in hospitality, education, retail, offices and many other industries and places.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2+
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 18
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 16
Number of COMBO ports: None
Number of SFP ports: 2
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 36 Gigabity na sek.
Forwarding rate: 26.78 Mpps
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: No
Number of VLAN groups: 4000
VLAN:

• Up to 4K VLAN groups
• 802.1Q VLAN tagging
• MAC VLAN address: 12 entries
• VLAN protocol
• GVRP
• Voice VLAN

Supported protocols and standards:

• IEEE 802.3i: 10BASE-T Ethernet,
• IEEE 802.3u: 100BASE-X Fast Ethernet,
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet,
• IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber)
• PoE standards: 802.3af/at

QoS:

• Support 802.1p CoS/DSCP prioritization
• 8 priority queues
• Priority schedule mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue weight configuration
• Bandwidth Control: Limit transfer rate based on port/data flow
• Smoother operation
• Storm Control: Multiple control modes (kbps/rate), Broadcast/Multicast/Unknown-Unicast transmission control

Security:

• AAA
• 802.1X authentication
• Port-based authentication
• MAC-based authentication (Host)
• Authentication methods available: PAP/EAP-MD5
• HAS B
• Guest VLAN
• Authentication and authorization via Radius
• IP/IPv6 and MAC address binding
• 512 possible entries
• DHCP snooping
• DHCPv6 Snooping
• ARP inspection
• Detection of ND attacks
• Protecting the source IP address
• 253 possible entries
• Source IP address + source MAC address
• Source IPv6 address protection
• 183 possible entries
• Source IPv6 address + source MAC address
• Protection against DoS attacks
• Port protection through their static/dynamic/permanent configuration
• Up to 64 MAC addresses per port
• Storm Control Broadcast/Multicast/Unicast – control mode (kbps/rate)
• Port isolation
• Secure web management via HTTPS with SSLv3/TLS encryption 1.2
• Secure CLI management with SSHv1/SSHv2 encryption
• Access control based on IP/port/MAC

Management, monitoring, configuration:



• Omada app
• Central management
• Cloud access
• Maintenance-free ZTP configuration



Management panel functions:



• GUI graphical interface
• CLI command line interface
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (Groups 1, 2, 3, 9)
• SDM template
• DHCP/BOOTP client
• Dual Image, Dual Configuration
• CPU usage monitoring
• Cable diagnostics
• EEE
• SNTP
• System logs



L2 features:

• 16 IP Interfaces – Support IPv4/IPv6 interface
• Static routing – 32 IPv4/IPv6 static routes
• DHCP server
• DHCP relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP entries
• ARP proxy
• Gratuitous ARP
• Link aggregation
• Static link aggregation
• Up to 8 aggregation groups and up to 8 ports per group
• LACP 802.3ad
• Spanning Tree Protocol (STP)
• STP 802.1D
• RSTP 802.1w
• MSTP 802.1s
• STP security: TC protection, BPDU filtering/protection, Root protection
• Loopback detection
• 802.3x flow control
• Mirroring
• Port Mirroring
• CPU mirroring
• One-to-One Transfer
• Many-to-One Transfer
• Flow based
• Input/output port / both ports
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L3 features:
Other functions:

• Automatic device detection
• Batch configuration
• Batch software update
• Intelligent network monitoring
• Warnings about unusual events
• Unified configuration
• Reboot schedule

Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 181.4 Watt
Accessories included:

• TL-SG2218P
• Power cable
• Installation Guide
• Mounting kit
• Rubber feet

Power supply:

• 100-240V AC, 50/60Hz
• PoE Power: 150W

Dimensions:

440 x 180 x 44 mm

Environment requirements:

• Allowable working temperature: 0~50C
• Permissible storage temperature: -40~70C
• Permissible air humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing

Certificates:

• CE
• FCC
• RoHS

Other features:
