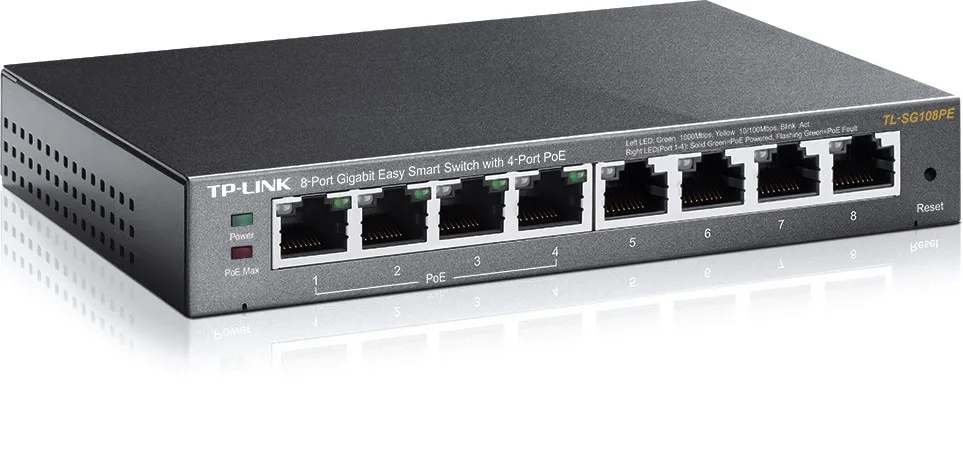

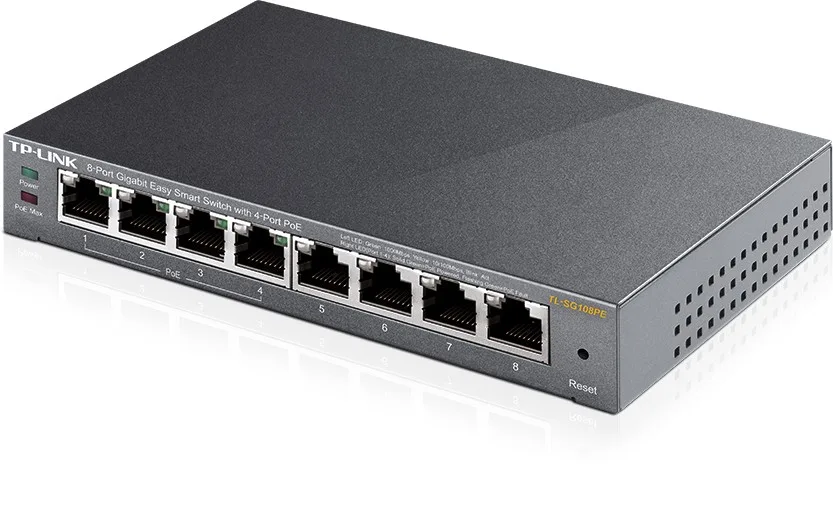

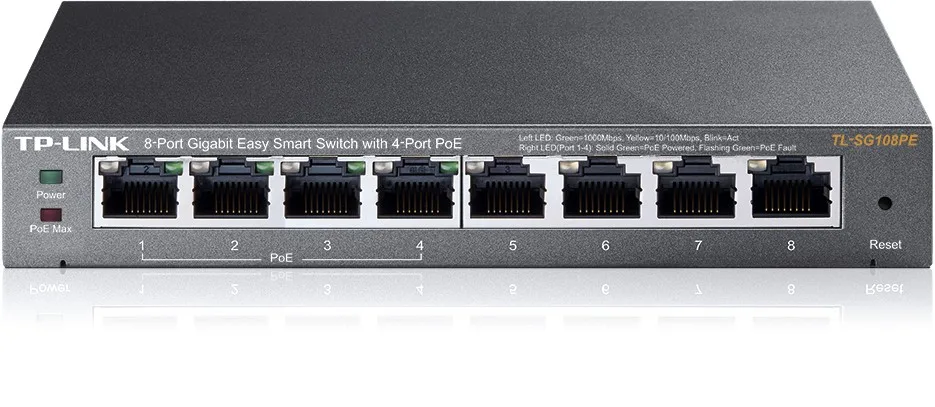

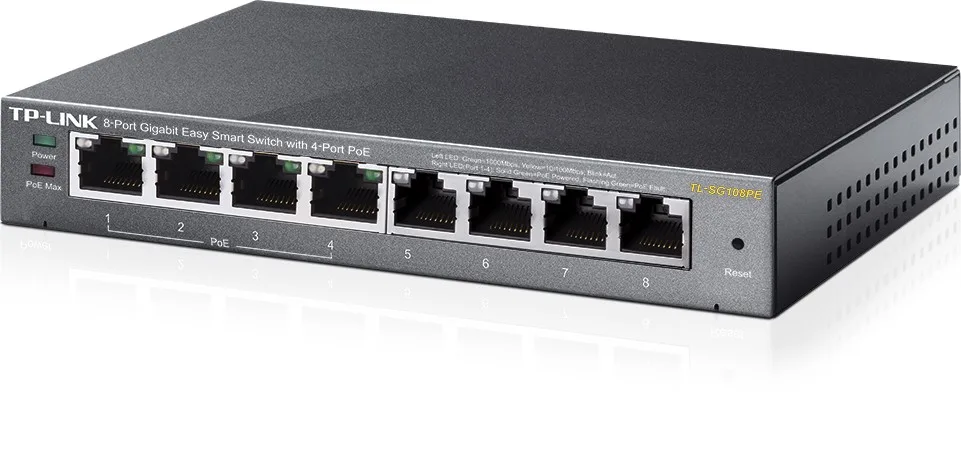

TP-LINK TL-SG108PE Switch Smart 8xGE (4xPoE)

TP-LINK TL-SG108PE Switch Smart 8xGE (4xPoE)

Description:

Easy Smart Switch, 8 Gigabit ports, 4-port PoE TL-SG108PE

– 8-port RJ45 10/100 / 1000Mb / s
– 4 PoE ports, power and data via a single cable
– Features network monitoring, traffic prioritization and VLAN
– No need to setup – Plug-and-play
– Manage using Easy Smart Configuration Utility (utility for Windows only)

Easy Smart Switch TL-SG108PE is designed for small businesses, where it is necessary to use the basic functions of LAN management. With mirroring ports to prevent loops and status diagnostics cables administrators can easily monitor network traffic. TL-SG108PE can connect and power up to 4 PoE devices such as wireless access points (AP), IP cameras and IP phones. Supports QoS based on ports and tagging 802.1P to maintain the highest throughput for the most important connections in the corporate network. In addition, service-based ports, marking tag and MTU VLAN enables improved security and an adequate separation of network resources.

Switch class: SMART
Application: Home and small office
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 4
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of QSFP+ ports: None
Forwarding mode: Store-and-forward
Forwarding rate: 11.9 Mpps
Packet buffer: 1.5 MegaBajt
MAC address table size: 4000
Support for Jumbo frames: Yes
Jumbo frame size: 15 Kilobajt
Number of VLAN groups: 32
VLAN:

– Simultaneous support for up to 32 VLANs (from 4 thousand. VLAN)
– MTU/Port/Tag VLAN

Supported protocols and standards:

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

QoS:

– Support for prioritization based on port / queuing 802.1p / DSCP
– Support for 4 queues prioritization
– The reduction of transmission speed for each port
– The Storm Control

Security:
Management, monitoring, configuration:

– Graphical User Interface
– Easy Smart Configuration Utility

L2 features:

– IGMP Snooping
– Link Aggregation
– Mirroring ports
– Diagnostics status cables
– Prevention of loops

L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 65.2 Watt
Accessories included:

– TL–SG108PE
– Power cable
– User manual
– CD
– Rubber feet

Power supply:
Dimensions:
Other features:
Designation:
