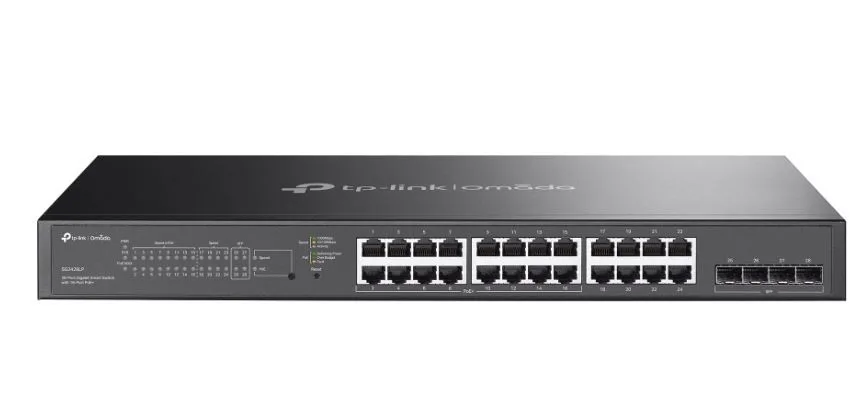

TP-LINK Switch SG2428LP 16xGE PoE+ 8xGE 4xSFP

TP-LINK Switch SG2428LP 16xGE PoE+ 8xGE 4xSFP

Description:

• 16× Gigabit 802.3af/at PoE+ ports
• 8× Gigabit RJ45 non-PoE ports and 4× Gigabit SFP slots
• 150W total PoE budget, with the ability to deliver up to 30W PoE per port
• Centralized cloud management via web page or Omada app
• Standalone device management via web page, command line interface (CLI), SNMP, and RMON
• Static routing helps direct internal traffic for greater efficiency
• VLAN, ACL, QoS, and IGMP snooping
• Fanless design for quiet operation
• Rugged metal housing and rack-mount design

Switch class: SMART
Application: Medium and large companies
Switch layer: L2+
Switch layer: L2
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE+ ports: 16
Number of COMBO ports: None
Number of SFP ports: 4
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 56 Gigabity na sek.
Forwarding rate: 41.66 Mpps
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
Stackability: Yes
VLAN:

• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Supported protocols and standards:
QoS:

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

Security:

• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

Management, monitoring, configuration:
L2 features:

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)

L3 features:
Other functions:
Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 184.7 Watt
Environment requirements:

• Operating Temperature: 040 degrees Celsius
• Storage Temperature: -4070 degrees Celsius
• Operating Humidity: 1090% RH, non-condensing
• Storage Humidity: 590% RH, non-condensing

Certificates:

CE, FCC

Accessories included:
Power supply:

100-240V AC, 50/60Hz

Dimensions:
Other features:
Designation:
