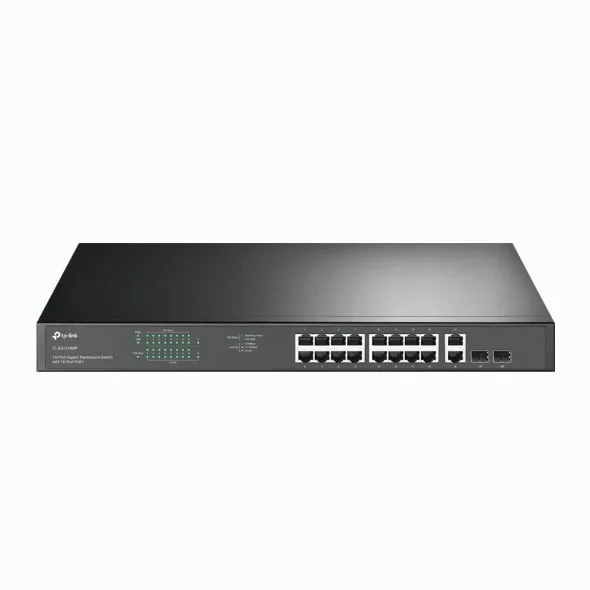

TP-LINK Switch SG1218MP 16xGE PoE+ 2xGE 2xSFP

TP-LINK Switch SG1218MP 16xGE PoE+ 2xGE 2xSFP

Description:

Switch SG1218MP 16xGE PoE+ 2xGE 2xSFP

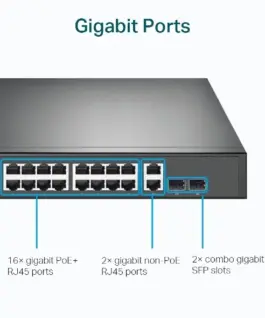

• 16 Gigabit RJ45 PoE+ ports, 2 Gigabit RJ45 non-PoE ports and 2 Gigabit SFP combo ports
• High total PoE power supply – up to 30W on each PoE port and 250W for all PoE ports*.
• Compatible with IEEE 802.3af/at devices
• Plug and play connectivity, no configuration or complex installation required.
• 802.1p/DSCP QoS feature enables smooth data traffic without delays

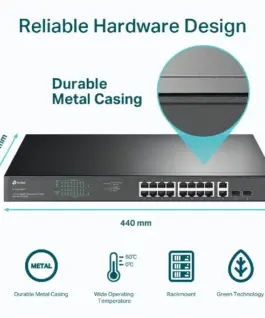

• Robust metal housing and professional heat dissipation design ensures wide operating temperature range (050 )

*Total PoE power is estimated based on laboratory test results. These values are not guaranteed and may vary depending on customer limitations and operating environment.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100/1000 Mbps ports: 16
Number of PoE+ ports: 16
Number of SFP ports: 2
Forwarding mode: Store-and-forward
Throughput: 36 Gigabajty na sek.
Forwarding rate: 26.78 Megabajty na sek.
Packet buffer: 4.1 MegaBajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 10 Kilobajt
VLAN:
Supported protocols and standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1q
• IEEE 802.1p

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

• Compatible with IEEE 802.3af/at PoE powered devices (PDs)
• 802.1p/DHCP QoS
• Automatic memorization and suppression of Mac addresses
• Supports IEEE802.3x bandwidth control for full duplex and backpressure for half duplex

Chassis type: Rack
Power supply : External
Power consumption: 286.84 Watt
Accessories included:

• TL-SG1218MP
• Installation Manual
• Power cable
• Mounting hardware
• Rubber feet

Power supply:

100240 VAC, 50/60 Hz

Dimensions:

440 × 180 × 44 mm

Other features:

Maximum power consumption:

• 21.4 W (220 V/50 Hz, with no PoE devices connected)
• 286.64 W (220 V/50 Hz, with 250 W PoE connected)
