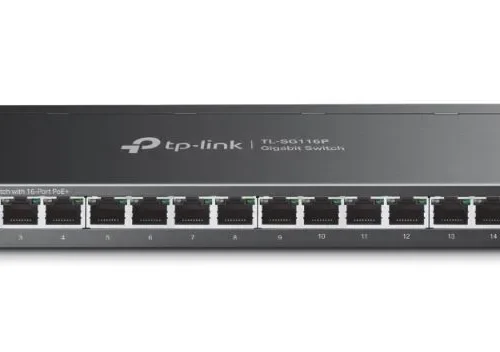

TP-LINK Switch SG116P 16xGE (16xPoE+)

TP-LINK Switch SG116P 16xGE (16xPoE+)

Description:

Desktop switch, 16 gigabit ports, including 16 PoE+ ports

• 16 Gigabit RJ45 ports
• 16 PoE+ ports, power and data transfer via one cable
• Compatibility with PoE-powered devices operating in IEEE 802.3af/at standards. Up to 30 W of PoE power on each PoE port
• PoE power supply support up to 120W for all PoE ports
• Up to 250m of data and power transmission in Extend mode
• Priority mode provides high priority for ports 1-4
• Isolation Mode enables one-click separation of client traffic for improved security and performance.
• Automatic restart of PoE-powered devices that are dead or unresponsive thanks to the PoE Auto Recovery function.
• Plug and play connection, no configuration or complicated installation required.

Dedicated 16 PoE+ ports (120 W budget) for many applications

Compatibility with the 802.3af/at PoE+ standard provides up to 30 W of power on each PoE port. A total PoE power budget of 120W* for 16 PoE+ ports opens up a wide range of applications such as surveillance in offices, dorms and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers and more

Perfect for monitoring – Up to 250 m of transmission

Thanks to the Extend mode, the transmission distance can reach up to 250m, perfect for installing IP cameras in large areas.

Auto lifting system with PoE Auto Recovery

The switch automatically detects and restarts PoE-powered devices such as cameras and access points when they stop working or become unresponsive, ensuring stable device operation without the need for manual monitoring and restarting.

Intelligent power management

When total power consumption exceeds 120W, Intelligent Power Management turns off power to the lowest priority port to provide power to higher priority ports and thus protect the device from overload. It also enables automatic detection of the PoE power required by a given device and protects non-PoE devices from damage.

Durable metal housing

The internal components of the TL-SG116P switch are protected by a high-quality metal housing ensuring a long product life. After passing a series of rigorous reliability tests, the TL-SG116P delivers switching performance you can rely on.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 16
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 32 Gigabajty na sek.
Forwarding rate: 23.8 Mpps
MAC address table size: 8000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:
QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:

• Cooperation with PoE devices supporting the IEEE 802.3at/af standard
• Extend mode (Ports 1-4, up to 250 m data transmission range and PoE power supply)
• Priority Mode (Ports 1-4)
• Isolation Mode (Ports (1-7 / 8-14)
• PoE Auto Recovery (Ports 1-16)
• Auto-remember and auto-extinguish Mac addresses
• IEEE802.3x flow control
• 802.1p/DSCP QoS
• IGMP Snooping

Chassis type: Rack
Fan : No
Power supply : External
Power consumption: 142.51 Watt
Environment requirements:

• Permissible operating temperature: 0~40 degrees Celsius
• Permissible storage temperature: -40 ~ 70 degrees Celsius
• Permissible air humidity: 10% ~ 90%, non-condensing
• Permissible storage humidity 5%~90%, non-condensing

Certificates:

• FCC,
• CE,
• RoHS

Accessories included:

• TL-SG116P
• Charger
• Installation Guide

Power supply:

External power supply (Output voltage: 53.5 VDC / 2.43 A)

Dimensions:

286 × 111.7 × 25.4 mm

Other features:
Designation:
