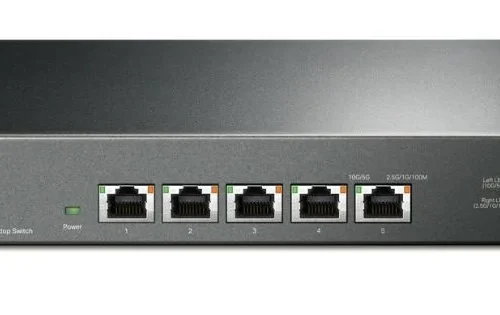

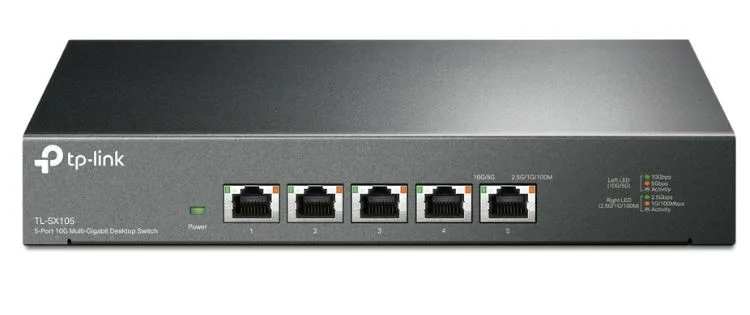

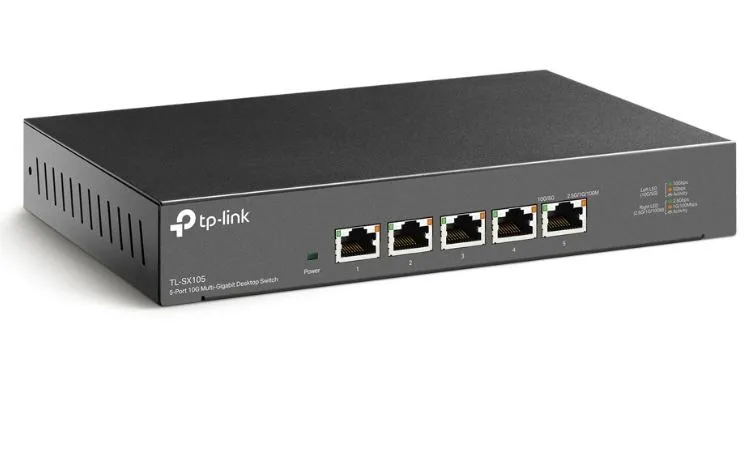

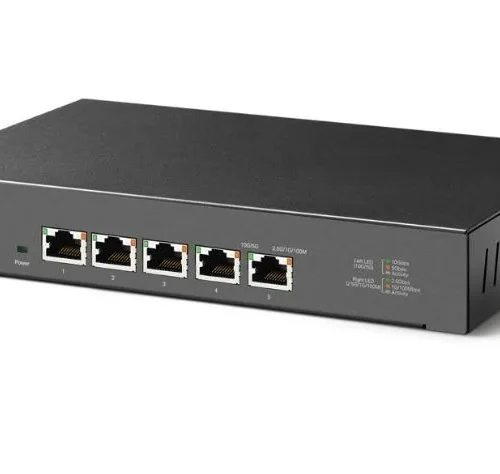

TP-LINK Switch Desktop SX105 5x10GE

TP-LINK Switch Desktop SX105 5x10GE

Description:

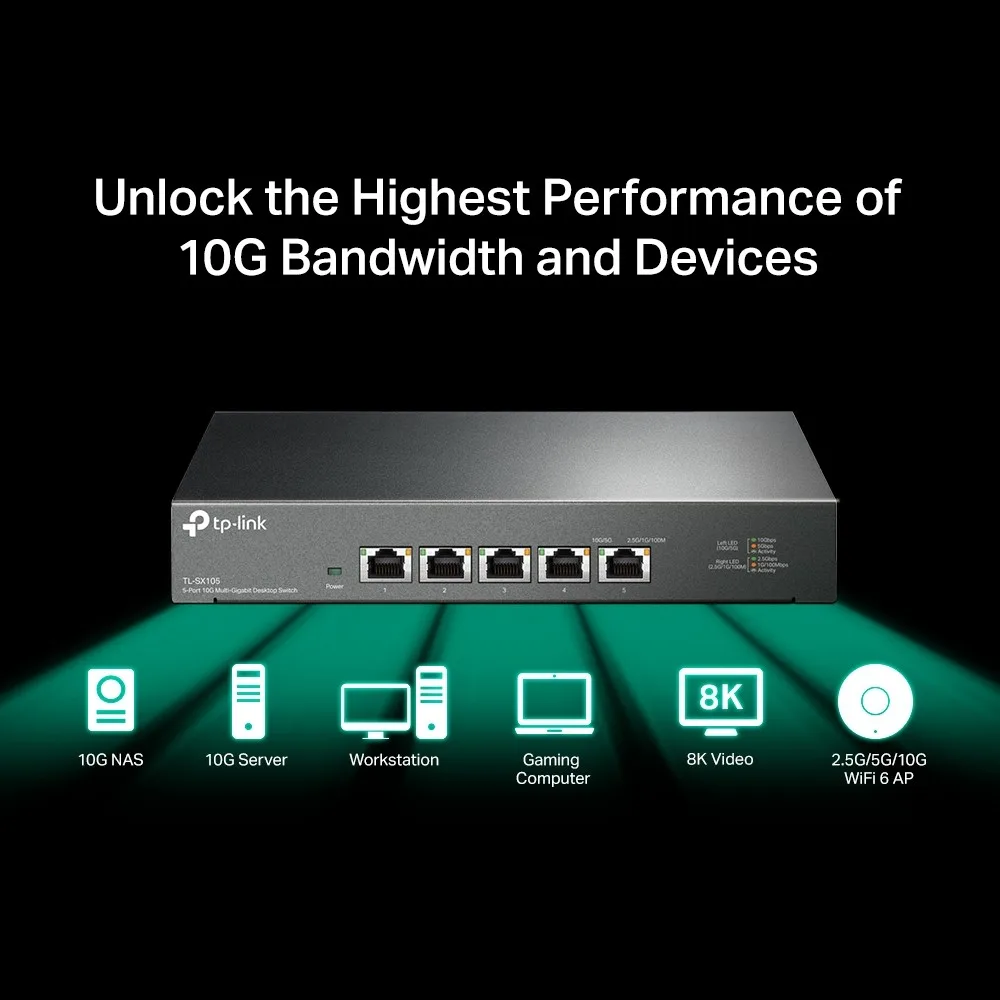

Top 10G/multi-gigabit performance

A flagship 10G product, the TL-SX105 is a 5-port desktop 10G switch providing switching capacity of up to 100Gbps. Autonegotiation at 5 speeds (100Mbps / 1G / 2.5G / 5G / 10G) intelligently adjusts ports for compatibility and optimal performance for all devices, including 10G NAS, 10G Servers, Workstations, Gaming PCs, 2.5G / 5G / 10G Access Points, 8K Video, Desktop PCs and more.

Built for LAN Parties

Never host a LAN Party with Lags again. Experience unparalleled speed, lower latency and prioritise your gaming traffic with QoS. Let the smooth gameplay begin!

State-of-the-art fanless design for quiet operation

The device has no fans, so it runs very quietly and is therefore a great addition to your home or office networking equipment. The robust metal chassis, the ability to be mounted on a countertop or wall and the highly effective heat dissipator are features that make the TL-SX105 switch a versatile device.

Plug and access the network

Plug-and-Play operation ensures easy deployment without the need for a technician to configure the device.

• 5 10G ports: Offers the highest performance for 10G/multi-gigabit devices and provides switching capacity of up to 100 Gbps.
• Lightning fast connections: Provides lightning-fast connections to 10G NAS, Servers, 10G PCIe network adapters/cards, Gaming PCs, 2.5G/5G/10G WiFi 6 access points, 8K video and more.
• Ideal for multiple applications: Built for lightning fast connections in business, home offices, workstations, LAN Parties and home entertainment.
• Optimal connections at 5 speeds: Autonegotiation in 5 speeds (100Mbps, 1G, 2.5G, 5G, 10G) ensures optimal performance.
• Quiet operation: The state-of-the-art fanless design ensures the switch operates quietly, so the device is perfect for both home and office use.
• Metal chassis: The robust chassis, desktop or wall-mounting capability and heat dissipation design are features that make the TL-SX105 switch a versatile device.
• Plug and Play: Installation is easy and requires no expert assistance.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10Gb ports: 5
Forwarding mode: Store-and-forward
Throughput: 100 Megabity na sek.
Forwarding rate: 74.4 Mpps
Packet buffer: 2 MegaBajt
MAC address table size: 32000
Jumbo frame size: 10 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Power consumption: 21.4 Watt
Accessories included:

• TL-SX105 Switch
• Power cable
• Installation manual
• Rubber feet

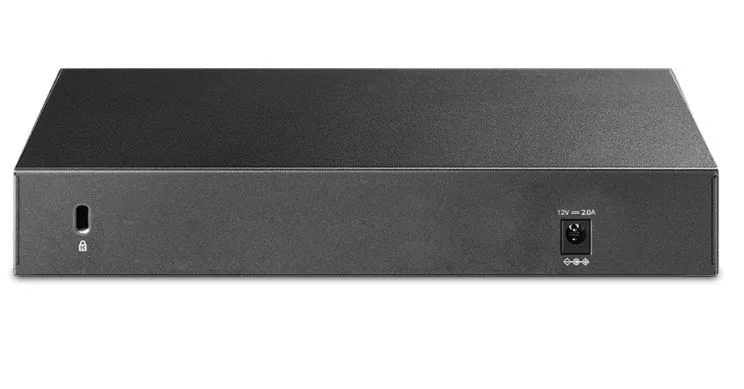

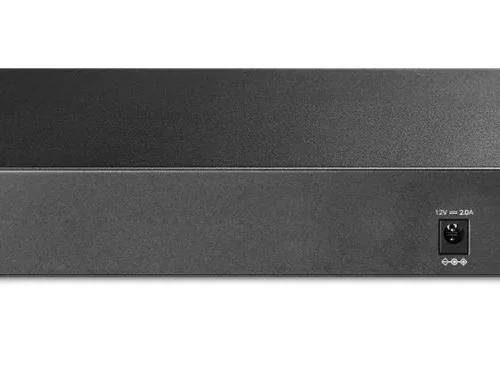

Power supply:

External power supply (12V DC / 2.0A)

Dimensions:

226 × 131 × 35 mm

Other features:

Working environment

• Permissible operating temperature: 0-40 °C
• Permissible storage temperature: -40-70 °C
• Permissible humidity: 10%-90%, non-condensing
• Permissible storage humidity: 5%-90%, non-condensing
