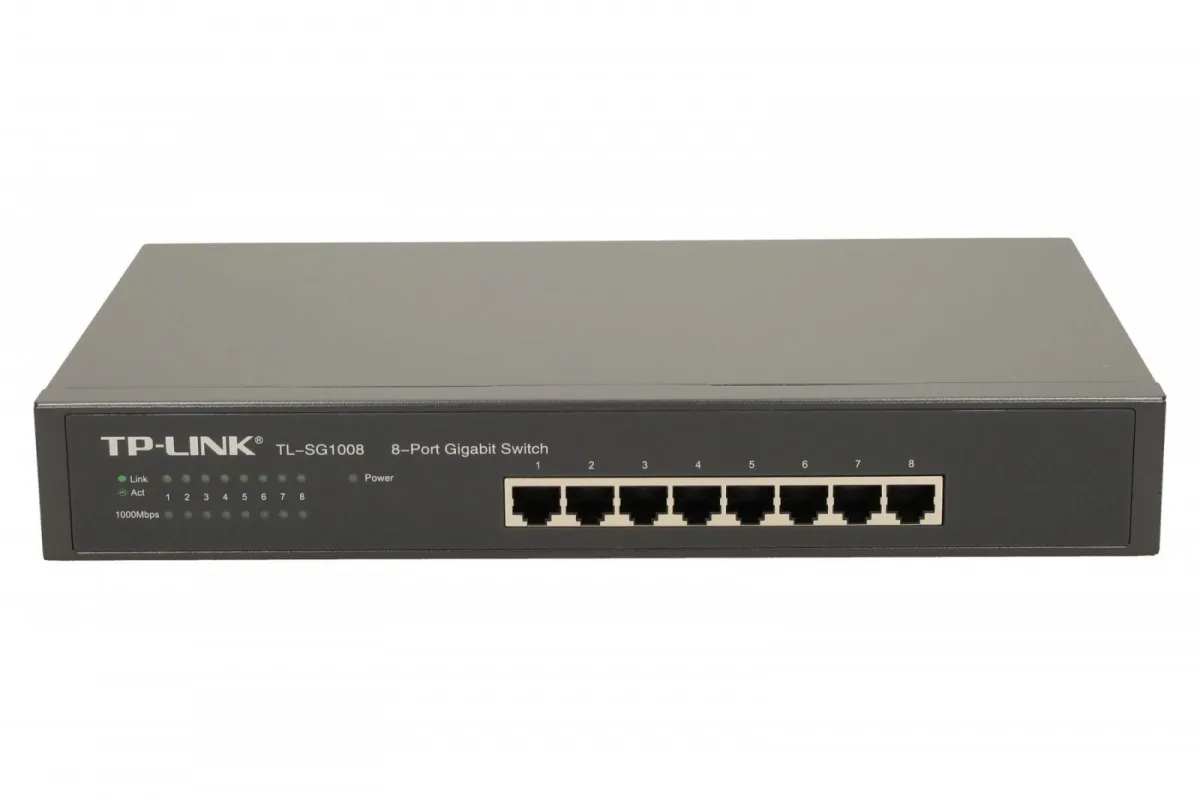

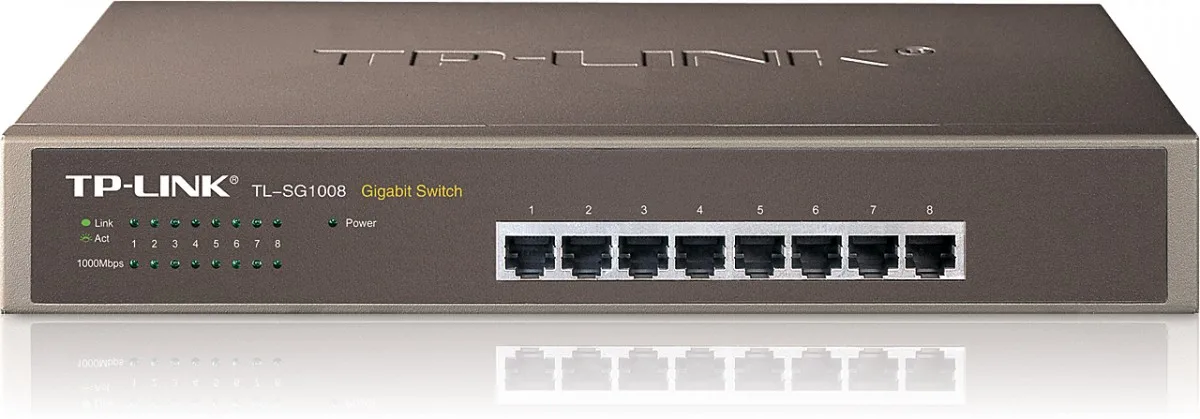

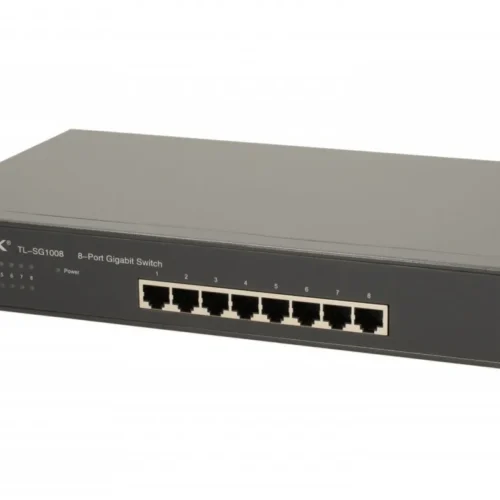

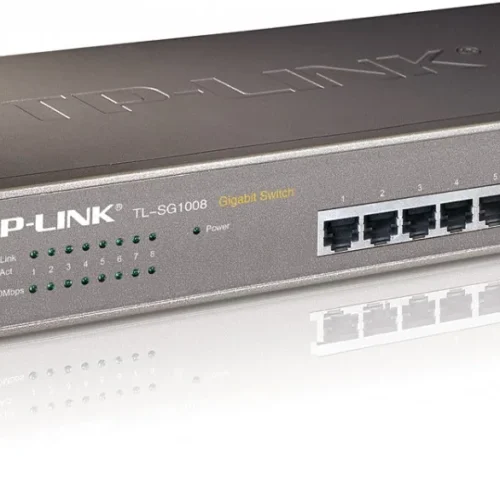

TP-LINK SG1008 switch 8x1GbE Desktop/Rack

TP-LINK SG1008 switch 8x1GbE Desktop/Rack

Description:

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save up to 60%* of the power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.mso-bidi-„Times New Roman“,TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Dimensions:

294*180*44 mm

Certificates:

294*180*44 mm

Technical specifications:

8 x 10/100/1000Mbps RJ45 Ports
Auto Negotiation/Auto MDI/MDIX
Supports IEEE 802.3x flow control, Back Pressure
Ports with Auto-Uplink function

Power supply:

External power supply:
Input: 100 &#126, 240VAC, 50/60Hz
Output: 3,3VAC/1.2A

Chassis type: Rack
System requirements:

Microsoft&#174, Windows&#174, 98SE, NT, 2000, XP, Vista&#8482, or Windows 7, MAC&#174, OS, NetWare&#174,, UNIX&#174, or Linux.

Included:

8-Port Gigabit Desktop Switch
Power Cord
Installation Guide

Functions:

– Innovative energy-efficient technology saves power up to 60%
– 100% Data filtering rate eliminates all error packets
– Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
– Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
– 16Gbps Switching Capacity
– Auto-MDI/MDIX eliminates the need for crossover cables
– Supports MAC address auto-learning and auto-aging
– Support the port N-Way Auto-Negotiation, Store and Forward
– Compact size design for desktops, rackmountable
– Plug and Play design simplifies installation

Store-and-forward: Yes
MAC address table size: 8000
