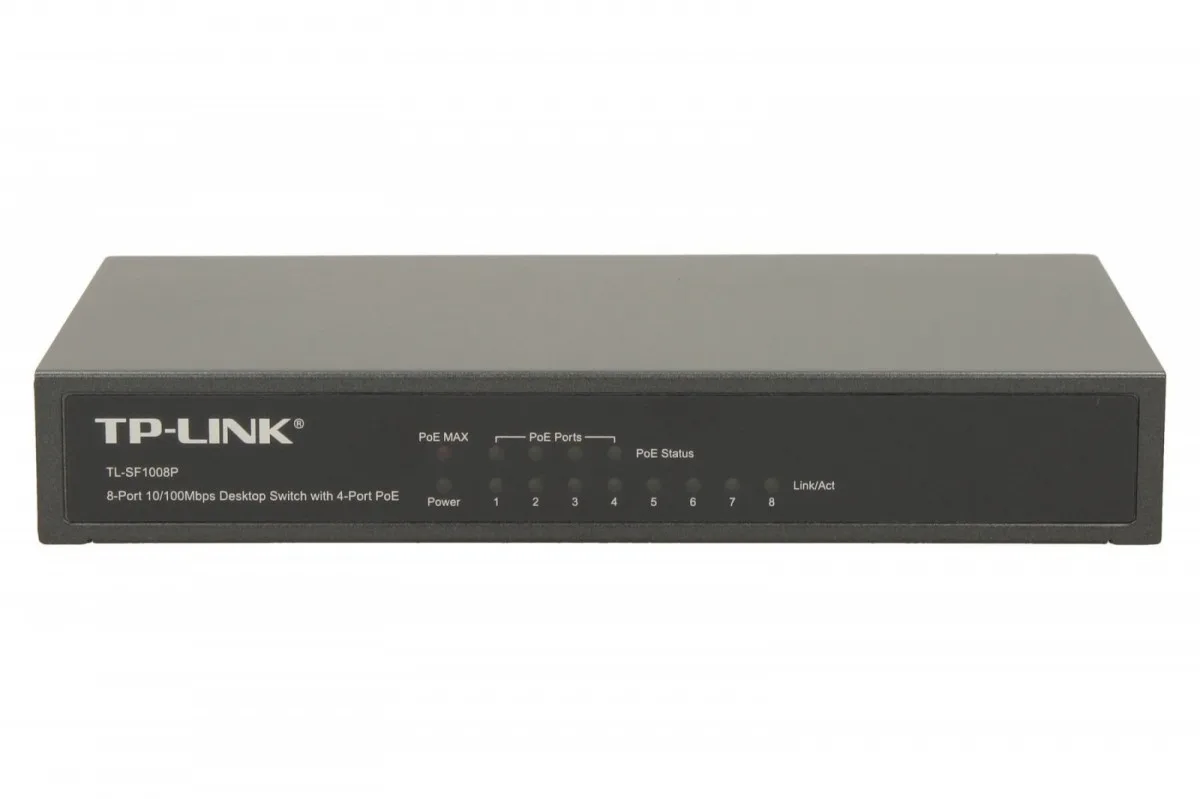

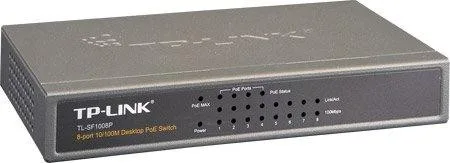

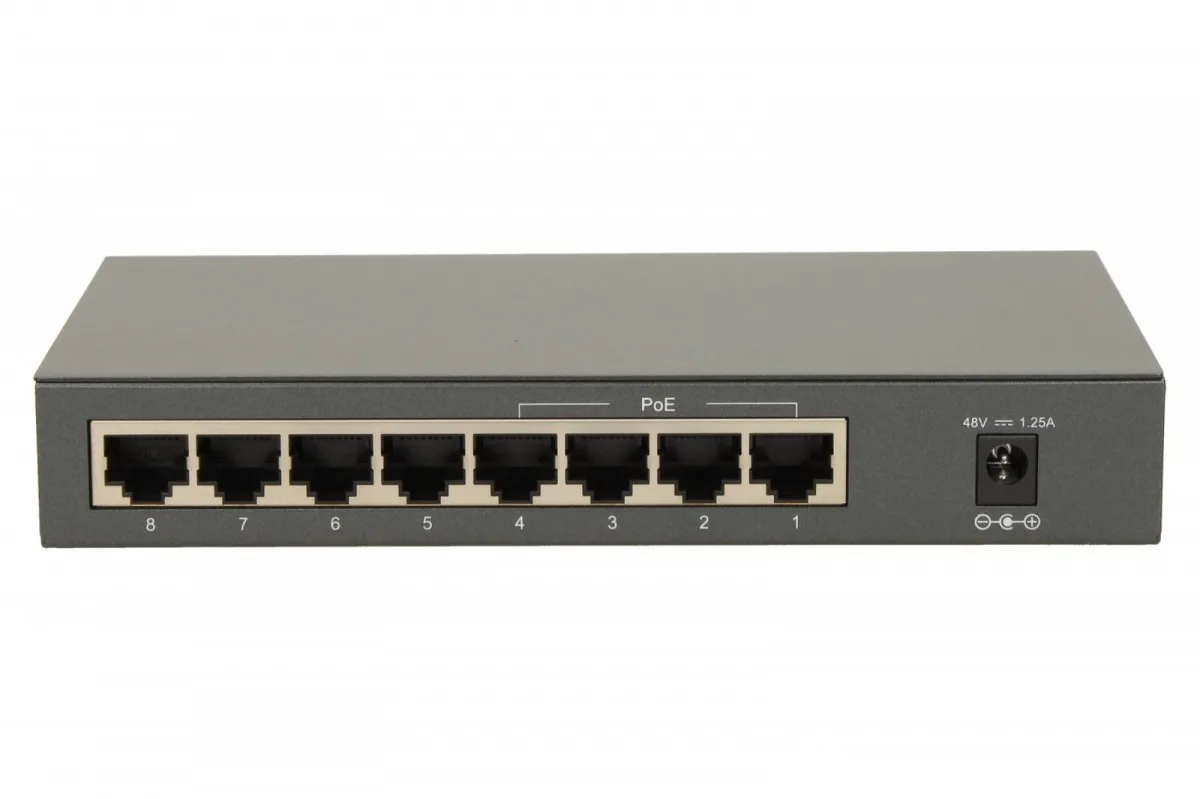

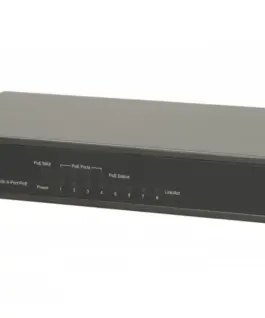

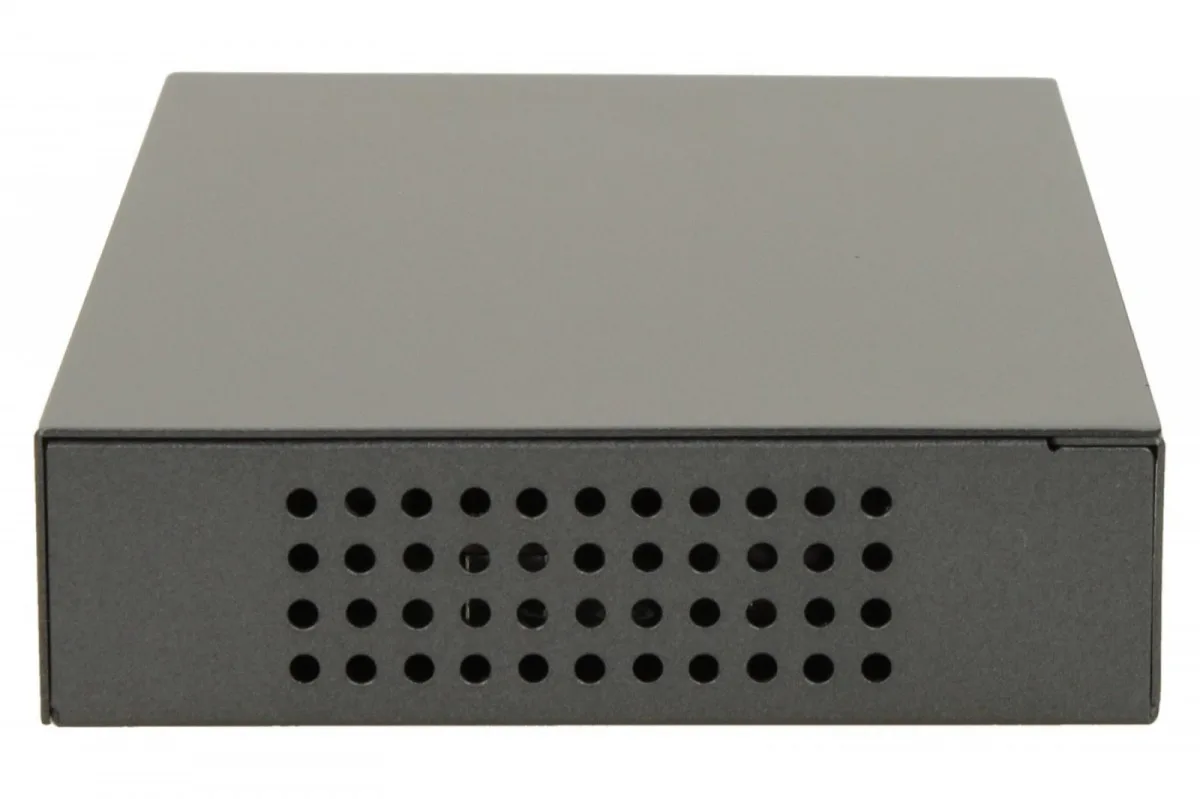

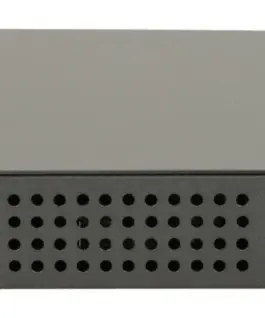

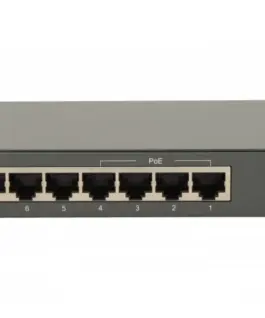

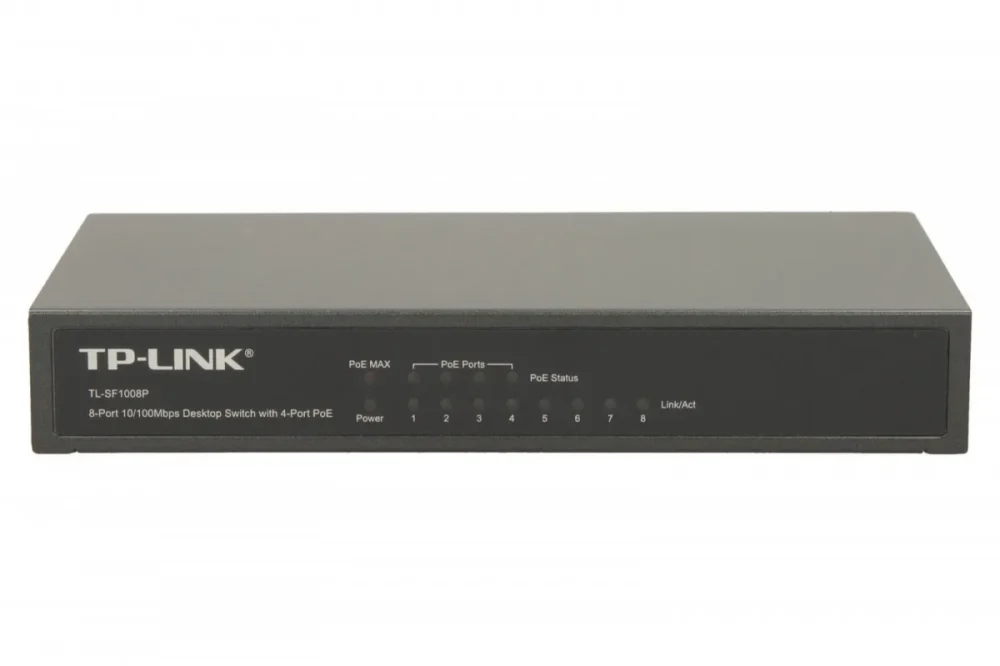

TP-LINK SF1008P switch 8×10/100 PoE Desktop

TP-LINK SF1008P switch 8×10/100 PoE Desktop

Description:

HARDWARE FEATURES

Interface
8 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100&#937, STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100&#937, STP (maximum 100m)
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 53W
Backbound Bandwidth 1.6Gbps
Mac Address Table1K
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H) 6.7*3.9*1.1 in. (171*98*27 mm)
Fan Quantity Fanless

SOFTWARE FEATURES

Transmission Method Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS
Package Contents
TL-SF1008P, Power Adapter, User Guide
Consumption
5.8 watts (max. no PD connected)
58.8 watts (max. with 53w PD connected)
Environment
Operating Temperature: 0&#8451,&#126,40&#8451, (32&#8457,&#126,104&#8457,)
Storage Temperature: -40&#8451,&#126,70&#8451, (-40&#8457,&#126,158&#8457,)
Operating Humidity: 10%&#126,90% non-condensing
Storage Humidity: 5%&#126,90% non-condensing

Designation:
