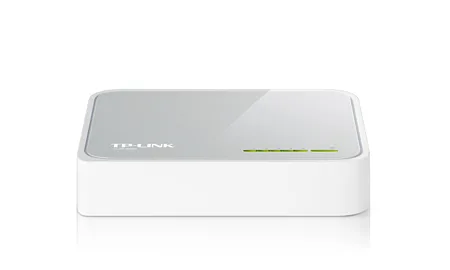

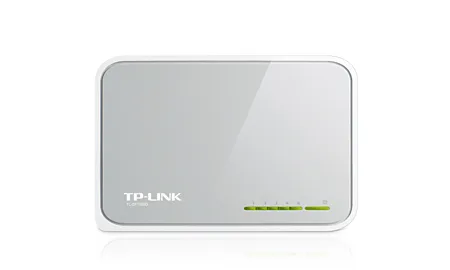

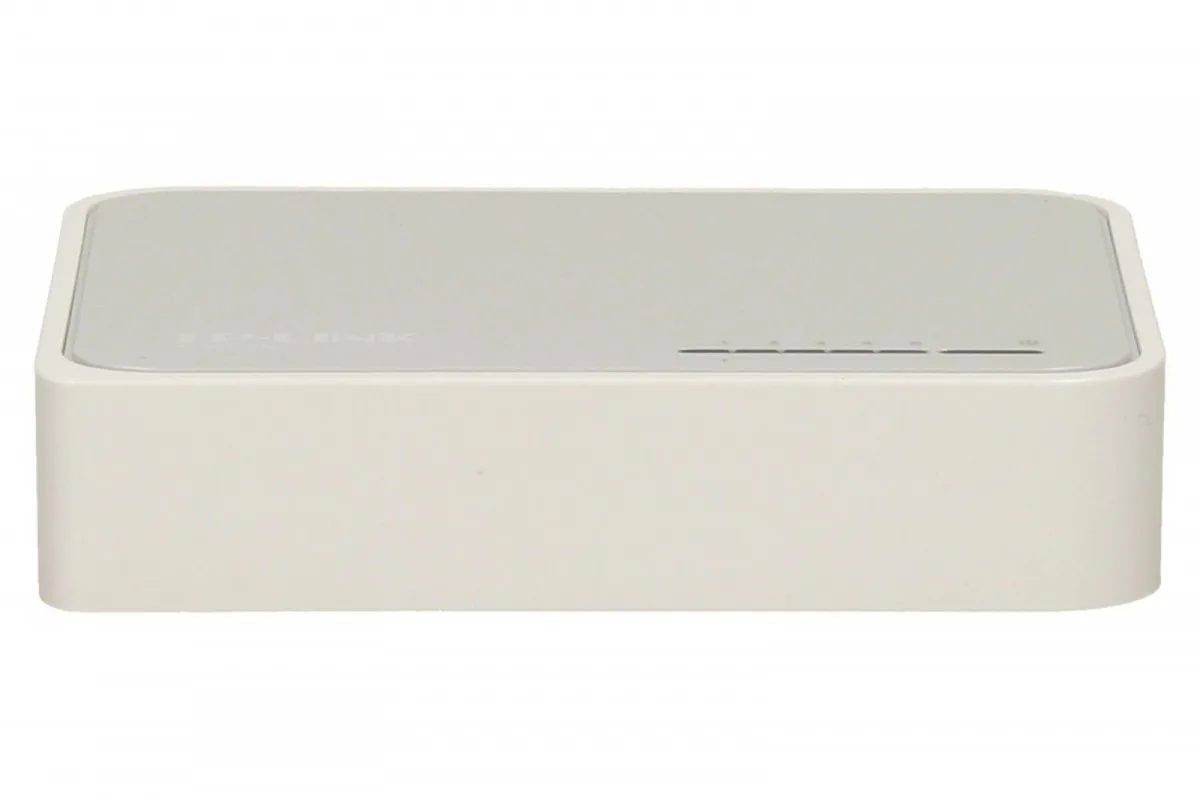

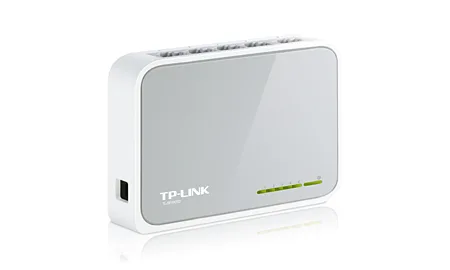

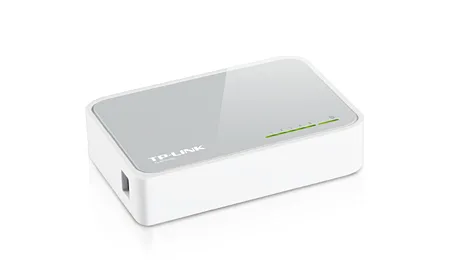

TP-LINK SF1005D switch L2 5×10/100 Desktop

TP-LINK SF1005D switch L2 5×10/100 Desktop

Description:

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 60% of power consumption, making it an eco-friendly solution for your home or office network.

Features:

• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Desktop design
• Plug and Play design simplifies installation

&#160,

Technical specifications:

HARDWARE FEATURES

Interface:&#160,
– 5 10/100Mbps RJ45 Ports
– AUTO Negotiation/AUTO MDI/MDIX
External Power Supply: 100-240VAC, 50/60Hz (Output 5V/0.6A)
Dimensions: (W X D X H)4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
Fan Quantity: Fanless

SOFTWARE FEATURES

Transfer Method: Store and Forward
Advanced Functions: Green Technology, saving power up to 60%, 802.3X Flow Control, Back Pressure, Auto-Uplink Every Port

OTHERS

Certification: FCC, CE, RoHs
Package Contents:&#160,
– 5-Port 10/100Mbps Desktop Switch
– Power Adapter
– User Guide
System Requirements: Microsoft&#174, Windows&#174, 98SE, NT, 2000, XP, Vista&#8482, or Windows 7, MAC&#174, OS, NetWare&#174,, UNIX&#174, or Linux.
EnvironmentOperating Temperature: 0&#8451,&#126,40&#8451, (32&#8457,&#126,104&#8457,),
Storage Temperature: -40&#8451,&#126,70&#8451, (-40&#8457,&#126,158&#8457,),
Operating Humidity: 10%&#126,90% non-condensing,
Storage Humidity: 5%&#126,90% non-condensing
